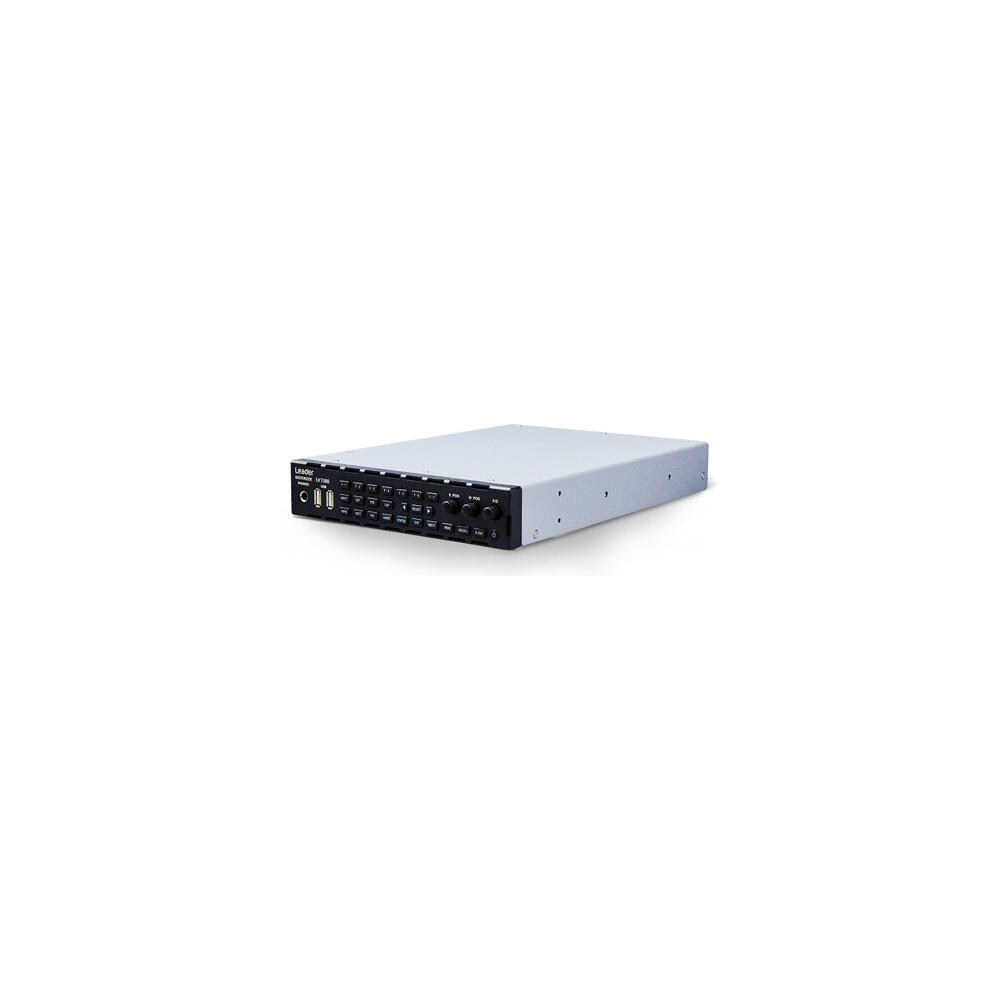

The Leader LV7300 is a space-saving, compact waveform monitor specialized for SD-SDI video signals. It is compact but supports eye pattern measurement up to 12 G-SDI. The Leader LV7300-SER20 adds various analysis displays like Lissajous display, surround display, mute, clip error detection, and more to the LV7300-SER01 or LV7300-SER02. For audio signals, SDI signals can be displayed on a level meter. Audio format is compatible with L-PCM.You can simultaneously display 8 channels from one SDI signal and 4 channels from 2 SDI signals. The embedded audio playback system complies with SMPTE ST 299, 272. Features Supports various signal inputs Various SDI signals up to 12 G-SDI can be observed/monitored Audio signals can correspond to SDI embedded voice. Excellent operability With the front panel equipped with key buttons and knobs that follow the operability of conventional models USB mouse is also possible. In addition, the LV5300/LV5350 adopt a 7-inch full HD panel with a touch panel function, and the LV7300 can be operated and set intuitively by touch operation by connecting an external LCD adopted touch panel with a USB cable SDI input format SD-SDI, HD-SDI, 3G-SDI, 12G-SDI Single Link is supported External Synchronize Input Terminal Input terminal: BNC terminal Number of input terminals: 1 line 2 terminals Input impedance: 15 k Passive loop through Input return loss: 30 dB or more ( 50 kHz to 30 MHz, 75termination) Maximum input voltage: 5 V ( DC + peak AC) Input signal: Ternary synchronization signal or NTSC/PAL black burst signal, 10 Field ID correspondence Function: SDI reference signal input for video signal waveform display and phase difference display Headphone Output Terminal Output terminal: Standard jack 1 terminal ( stereo) Output signal: On the screen of the displayed audio signal, arbitrary 2 ch ( Downmixed Lt, Rt is also acceptable) SDI Output Terminal Function Output screen for SDI monitor Output terminal: BNC terminal Number of output
The Leader LV7300 is a space-saving, compact waveform monitor specialized for SD-SDI video signals. It is compact but supports eye pattern measurement up to 12 G-SDI. The Leader LV7300-SER20 adds various analysis displays like Lissajous display, surroun
