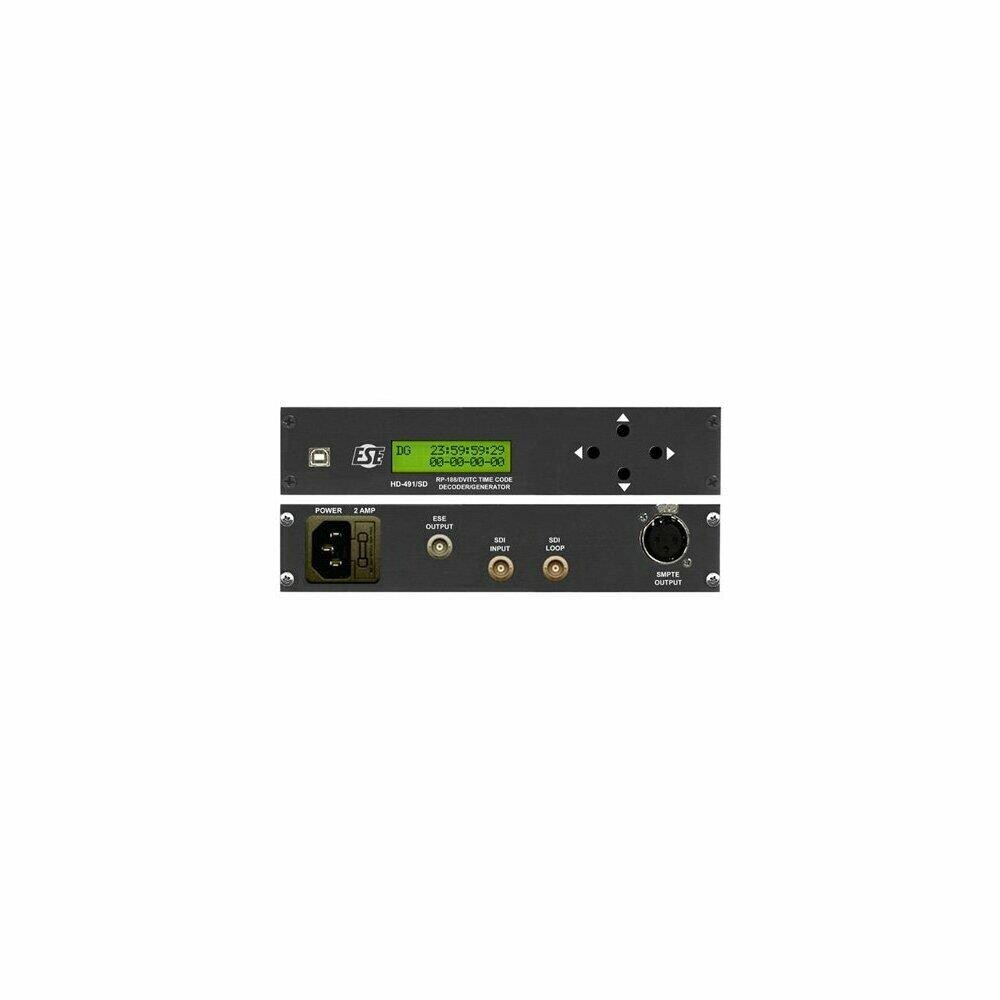

ESE ESE-HD-491-SD HD and SD SDI Timecode Decoder- Generator

The HD-491/SD is an HD and SD SDI Timecode Decoder/Generator. The HD-491/SD accepts an SDI signal, decodes the RP-188 or D-VITC and produces either a SMPTE or EBU LTC output. Simultaneously, the unit produces an ESE timecode output which can be used to drive new or existing clock systems. A selectable ( reclocked or non-reclocked) SDI video loop output is also provided. The HD-491/SD can also be used as a Translator ( for shuttle speed applications) or can be jammed and used as a Generator ( real-time applications). The HD-491/SD is also capable of transposing RP-188 or D-VITC User Bits into one of multiple different Date formats. The HD-491/SD is easily configured using either the front panel controls or the front panel mounted USB port with the supplied PC software. Features Reads rp-188 or d-vitc timecode from sdi video Generates ltc ( auto smpte/ebu selection) Ese tc90 output for driving remote displays Accepts all common hd and sd sdi signals Automatiy detects sd or hd format Sdi loop output ( reclocking selectable) Lcd status and setup display Usb port for configuration from pc Universal power supply ( 86-264 vac) Specifications Power: 85 - 264 VAC, 47 - 63 Hz, 15 Watts max Mechanical: Black anodized aluminum enclosure 1.6-" H x 8-" W x 7.3-" D Time and Setup/Status Display: Time and Setup/Status Display: 16 x 2 character LCD SD SDI Input: SMPTE 259M-C ( 270Mb/s), 525 line and 625 line 4:2:2 HD SDI Input: 1080i/60, 1080i/59.94, 1080i/50, 1080p/30sF, 1080p/29.97sF Weight: 3 lbs
