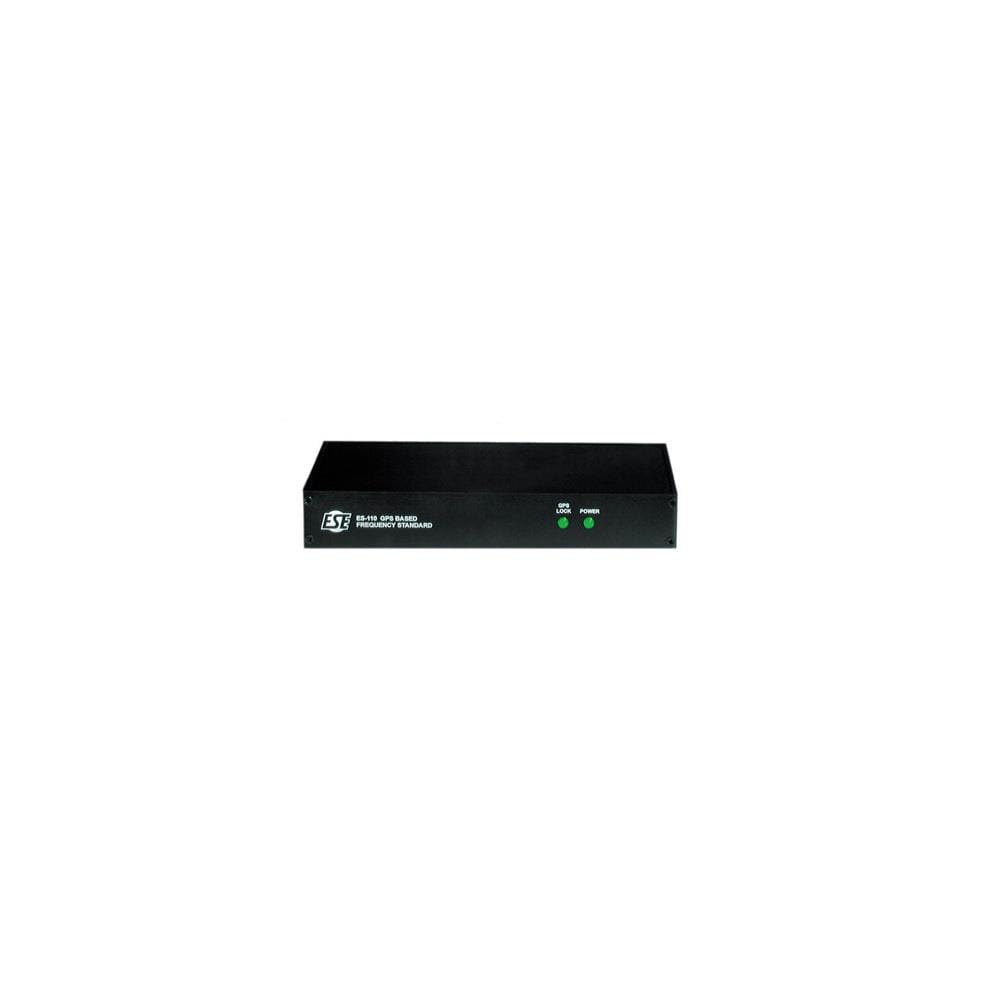

GPS Based Frequency Generator The ES-410 generates a stable source of 10 MHz and 1 PPS using Global Positioning System satellites as a reference. The unit provides 10 MHz in both Sine Wave and Square Wave 5 volt logic form, four Sine Wave and four Square Wave outputs are provided. The 1 PPS output is a 50 duty, 5 volt logic signal, positive-edge coinciding with the UTC seconds change. An ESE TC90 Time Code output is also provided for driving remote time displays. A USB interface allows configuration of the Time Zone and other parameters, and outputs the time. Features Disciplined Temperature-Compensated Crystal Oscillator GPS Timing Reference With 1 x 10-8 Accuracy Eight 10 MHz Outputs ( 4 Sine Wave and 4 Square Wave) Phase Coherent 1 PPS Output ESE Time Code Output Indoor/Outdoor Antenna with 16' Cable Ruggedized Desk-Top Enclosure USB interface Specifications Accuracy: 1-" x 10-" GPS Receiver: Internal 12-Channel Antenna: Indoor/Outdoor with 16' Cable Antenna Input: L1, 1.57542 GHz, TNC Enclosure: Desk-Top, Black Anodized Aluminum Electrical: 117 VAC, 50/60 Hz Power: 5W maximum Weight: 6 lbs
