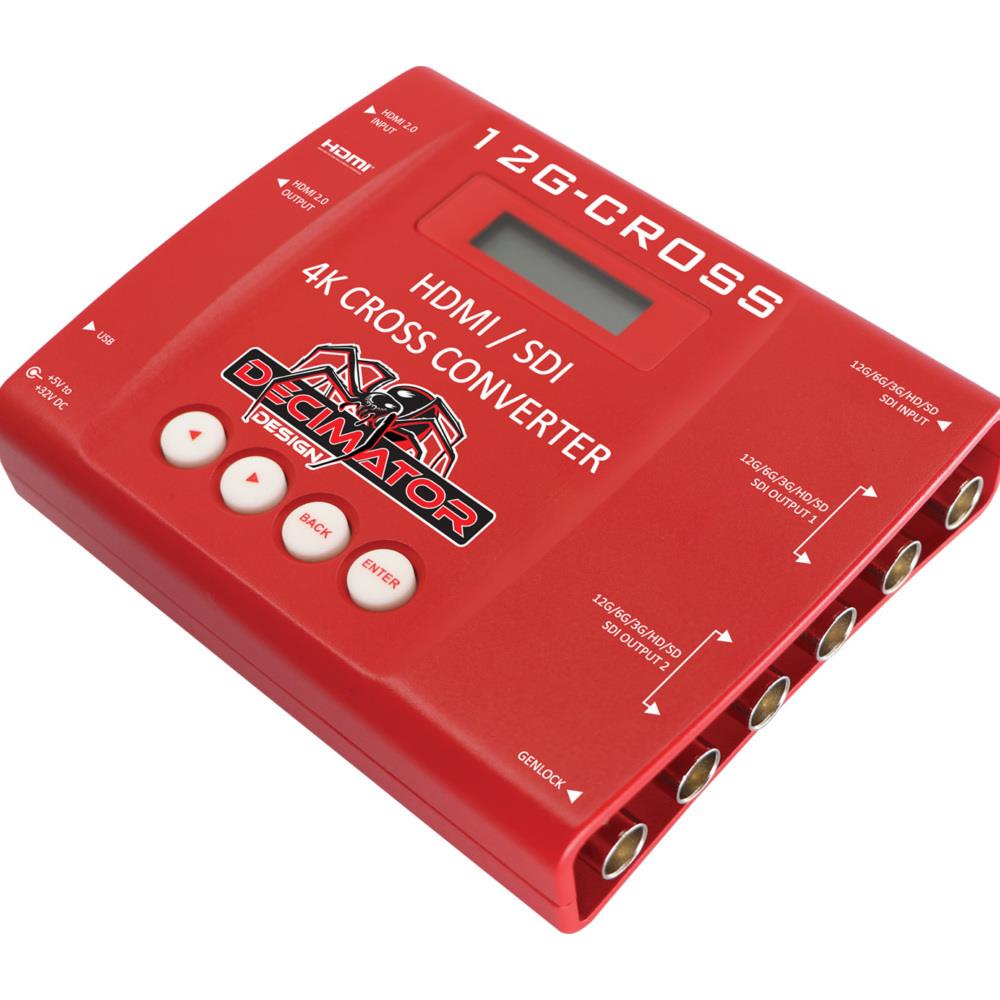

Decimator Design DEC-12G-CROSS HDMI and SDI 4K Cross Converter with Scaling and Frame Rate Conversion

The Decimator Design 12G-CROSS is a small, low power portable converter encased in a solid robust aluminium case and does not contain a noisy fan. Allowing it to be used in almost any environment. This unit allows either of the HDMI or SDI outputs to be simultaneously sourced from either the HDMI or SDI input or the new 4K scaling engine. The 4K scaling engine can be driven by either the SDI or HDMI input, supports horizontal and/or vertical flipping and can be locked to either the SDI, HDMI or Genlock input. The audio pairs in the SDI and HDMI outputs can be rearranged as required. It includes 4x 3G/HD/SD-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier. Features Audio pairs in the SDI and HDMI outputs can be rearranged as required Includes 4x 3G/HD/SD-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier HDMI Formats: ( 4096 or 3840) x 2160p 60/59.94/50/30/29.97/25/24/23.98Hz, 1920 x 1080p 60/59.94/50/30/29.97/25/24/23.98Hz, 1920 x 1080i 60/59.94/50Hz, 1280 x 720p 60/59.94/50/30/29.97/25, 720 x 480p59.94 or 720 x 576p50, 720 x 480i59.94 ( NTSC) or 720 x 576 ( PAL) Specifications Power: 5V - 32V DC Weight: 2.3 lbs
