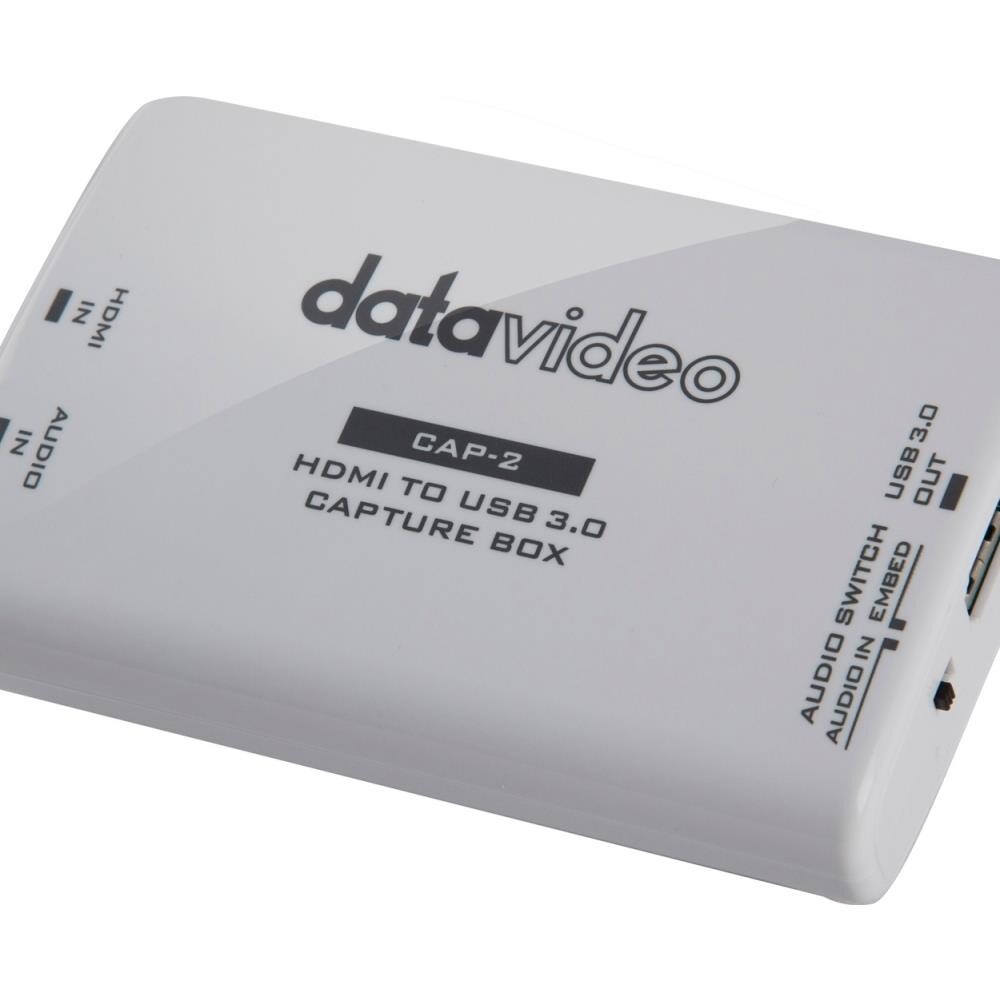

Datavideo's CAP-2 HDMI to USB 3.0 Capture Box is an HDMI-USB Capturing device, which supports up to 1080p50/60. Plug and play in the various operating system. It features a stereo line in external audio, which can be switched as HDMI embedded audio or external line-in audio. There are more flexible and powerful settings for capturing. Features USB 3.0 Interface Plug-and-Play Compatible with various operating systems Stereo line in external audio Supported Input and Output Video Formats 1920 x 1080p 60/59.94/50/30/29.97/25/24/23.976 1680 x 1050p 60 1600 x 1200p 60 1440 x 900p 75/60 1400 x 1050p 60 1366 x 768p 60 1360 x 768p 60 1280 x 1024p 75/60 1280 x 720p 60/59.94/50 1024 x 768p 75/60 Supported Output Video Formats 1920 x 1080p 60/50/30/25/24 1680 x 1068p 60 1440 x 1080p 60 1440 x 896p 60 1360 x 768p 60 1280 x 768p 60 1280 x 720p 60/50 1024 x 768p 60 960 x 536p 60 848 x 480p 60 Minimum System Requirement: Windows 7( SP1)/Windows 10/Windows 8.1/Windows 7 OS X ( 10.10 or above) Linux Ubuntu 14.04 PC: Intel CoreTM i5-4440 3.10GHz + NVIDIA GeForce GTX 660 or higher Laptop: Intel Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher 4GB RAM or higher Specifications Input: 1x HDMI Output: 1x USB 3.0 ( Micro B) Input Video Bandwidth: 150MHz ( pixel clock rate) Output Video Bandwidth: Up to 350Mbps ( USB) Audio Input: HDMI Embedded Audio and 3.5 mm stereo in Audio Support: 2-Channel, 44.1 and 48KHz sample rate, up to 24-bit PCM Capture Video Format: YUY2 ( USB3.0), MJPG ( USB2.0/3.0) Firmware Update: Via USB Firmware update: USB Port Power Consumption: 2W Operation Temperature: 32-104degF Storage Temperature: -4-140degF Humidity: 20-90 RH Dimension ( LxDxH): 4.13 x 2.67 x 0.9 Inches Weight: 0.15 lbs
Datavideo's CAP-2 HDMI to USB 3.0 Capture Box is an HDMI-USB Capturing device, which supports up to 1080p50/60. Plug and play in the various operating system. It features a stereo line in external audio, which can be switched as HDMI embedded audio or
