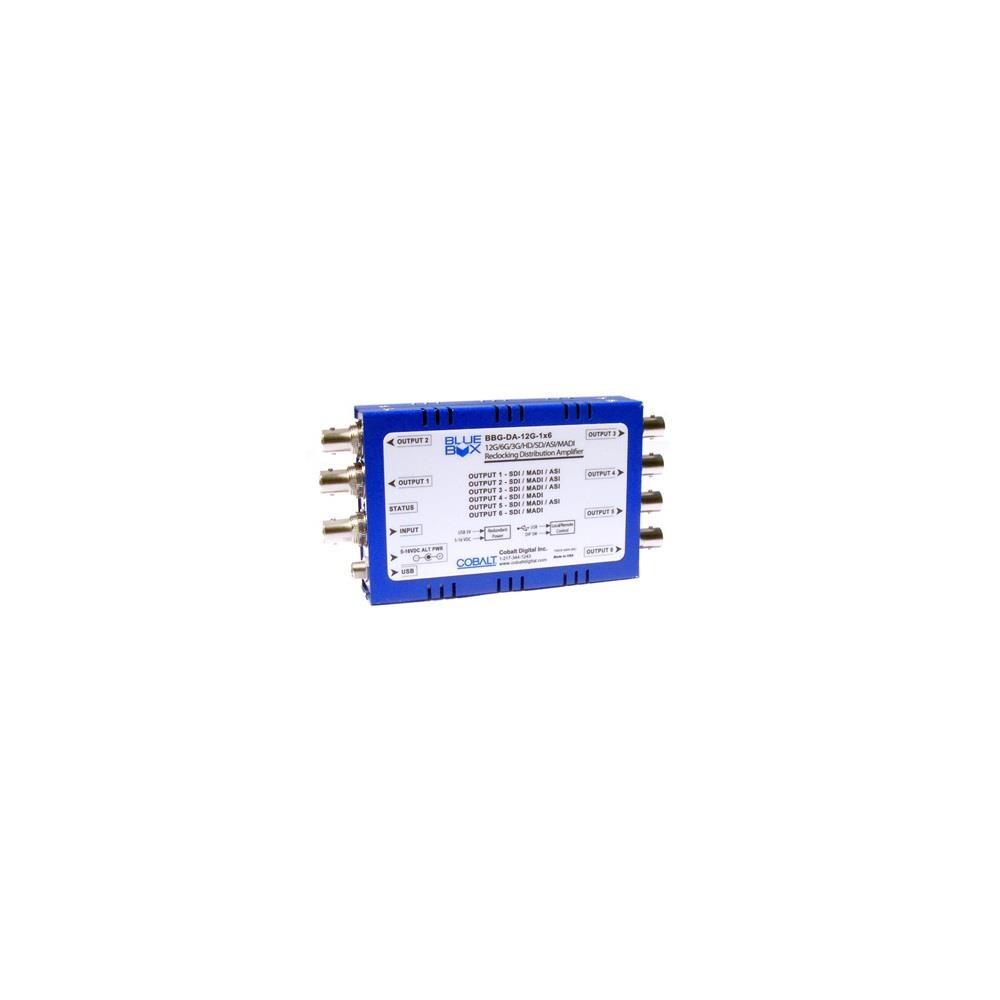

The BBG-DA-12G-1x6 by Cobalt is a 12G/3G/HD/SD-SDI/ASI/MADI multi-rate distribution amplifier that features an input status LED. The unit is fully automatic and supports SMPTE 2082-1 ( 12G), 424M ( 3G), 292M and 259M SDI video signals as well as ASI and MADI, and is equipped with 1 input and 6 reclocked SDI outputs. ( Reclocking for 12G/3G/HD/SD-SDI and MADI inputs, all other bit rates are non-reclocking.) The unit supports 1x3 ASI distribution using its non-inverting outputs. Features Six 12G/3G/HD/SD equalized and reclocked outputs 1x3 ASI distribution capability Input present LED indicator Auto-standard detect and configuration for SMPTE 2082-1, 424M, 292M, 259M Small rugged portable standalone pack ideal for portable installations Optional BBG-MB mounting bracket provides rigid, secure mounting to mounting surfaces Rugged construction backed with a five-year warranty Specifications Number of inputs: 1 Impedance: 75 SDI Formats Supported: SMPTE 2082-1, 424M, 292M, 259M 12 Gbps: 60m 3 Gbps: 100m 1.485 Gbps: 150m Number of DA outputs: 6 Signal Level: 800 mV +/- 10 DC Offset: 0.0V +/- 0.5V Dimensions ( WxHxD): 5.8-" x 2.9-" x 1.1-" ( including connector projections) Weight: 1 lbs
