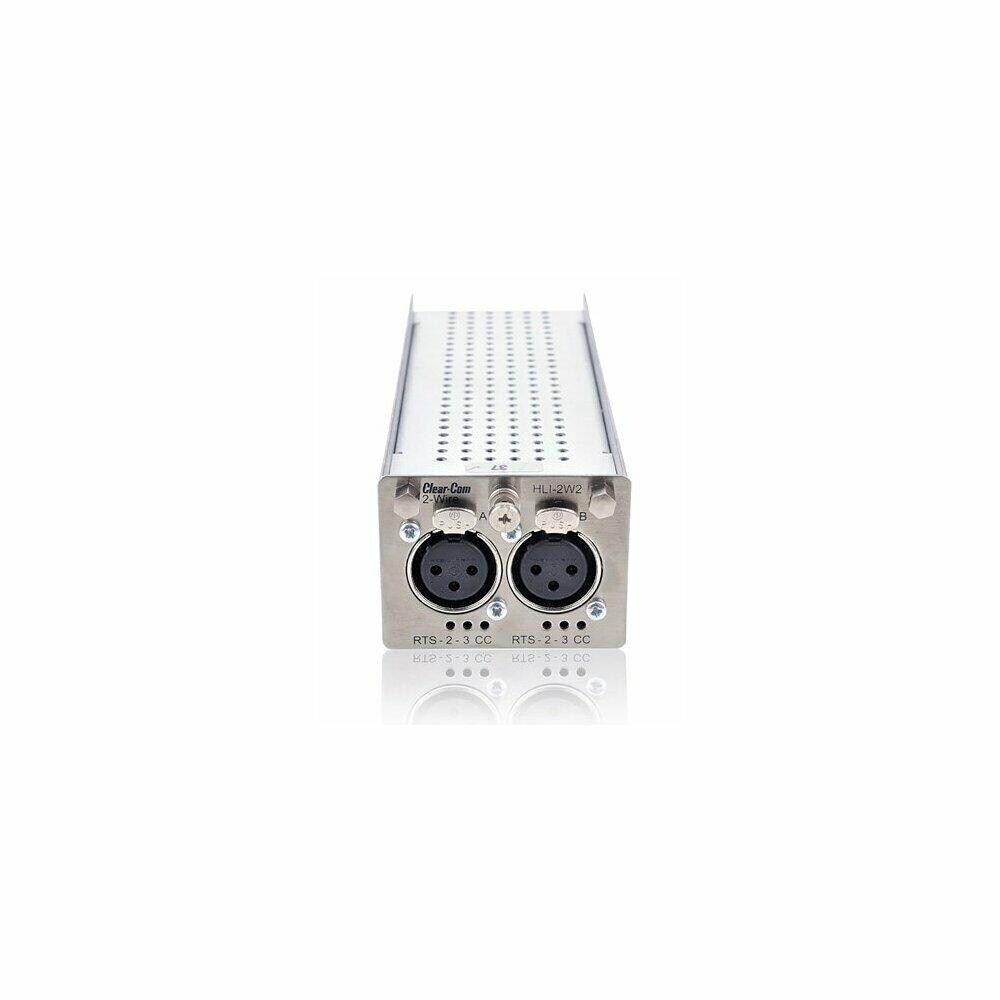

Clear-Com CLCM-HLI-2W2 HLI-2W2 HelixNet 2-Wire Interface Module

HelixNet Main Stations accept both two-wire and four-wire optional interface modules, offering seamless connectivity to virtually all common two-wire and four-wire audio systems. The HLI-2W2 is a 2-wire interface module that fits within one of the three rear panel interface slots of a HelixNet Main Station ( HMS-4X). The HLI-2W2 connects two 1-channel 2-wire analog audio circuits to HelixNet intercom channels. Two 3-pin XLR-F connectors on the module connect intercom lines, such as Clear-Com or RTS, and can be assigned via the main station menu. Requires external partyline power source. Features 2-wire interface module Clear-Com/RTS assignment from HelixNet Main Station Two 3-pin XLR-F connectors per module Specifications Connectors: Intercom Line: ( 2) 3-pin XLR-F Maximum Level Before Clipping: 6dBu Nominal Input Level: -18dBu ( C-C), -12dBu ( RTS) Input Impedance:>- 10KO bridging Frequency Response: 100 Hz - 10 kHz 3dB Frequency Response: 40 Hz - 10 kHz 3dB Termination: External Power: 30V max external Dimension: 7.36-" x 2.24-" x 1.54-" ( 187mm x 57mm x 39mm) Weight: 1 lbs
