Audix AUD-DN43 Dante AES67 Interface for M3 Plus Single Element Mic

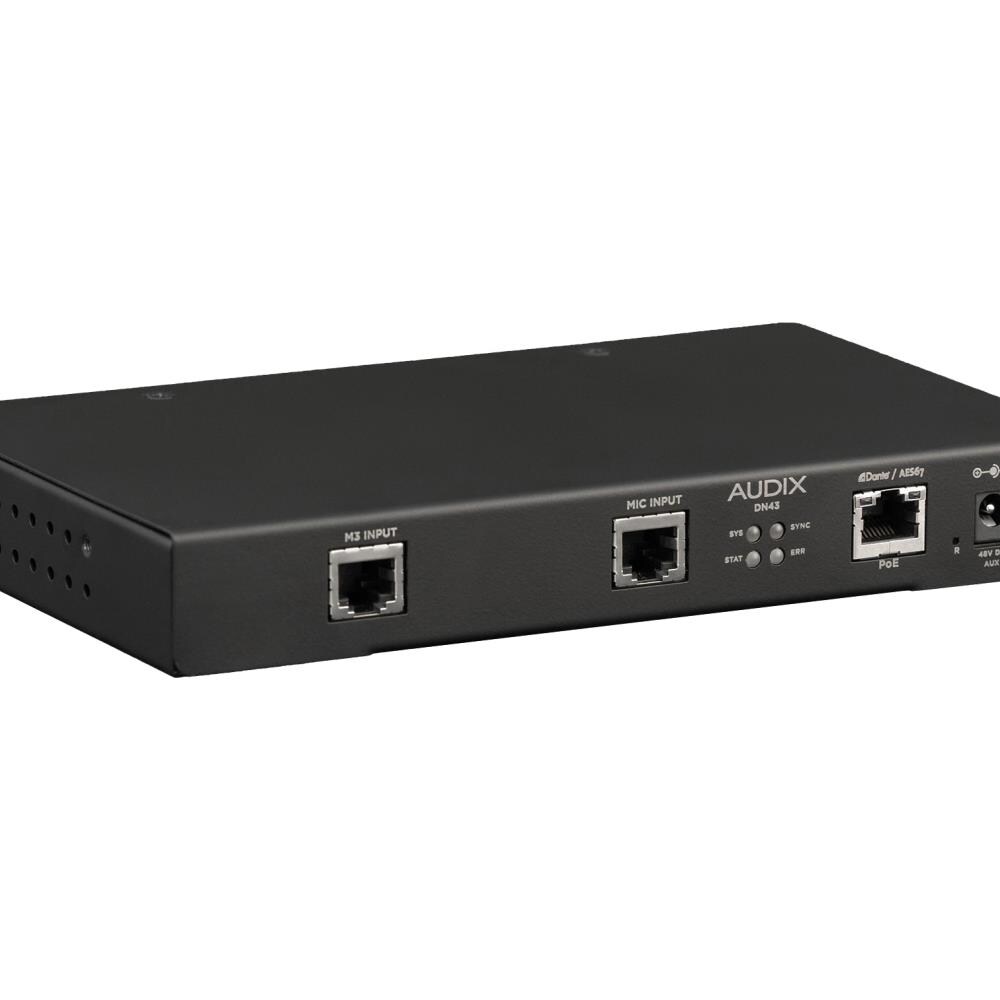

The Audix DN43 microphone interface is a key part of the Audix Dante/AES67 Integrated Microphone System, the fast, trouble-free way to stream Audix audio performance through Ethernet networks. High-quality audio and all microphone functions - including on-off contact closure and LED status indicators. This simple configuration eliminates wiring errors, accelerates installation, and reduces cost. The DN43 features one microphone input specifically designed for the Audix M3 tri-element microphone and one input for Audix RJ45-equipped, single-element microphones. It has two 5V logic outputs per port, with source/sink capability for LEDs that are controlled by network-connected DSPs. Features Audio Features High-fidelity 24-bit, 48kHz audio Balanced audio inputs with RFI filtering 48V phantom power output Each channel has selectable pre-amp gain, as well as low- and high-pass fi lters All channels controlled independently Flash memory prevents loss of settings in the event of power loss Supports AES67 audio streams Dante Domain Manager ( DDM) ready Dynamic or static IP address Operates on PoE from any IEEE 802.3af compliant equipment Applications Meeting rooms Convention centers Educational facilities Houses of worship Specifications Mic Input: Balanced Mic Input Connector: RJ45 Phantom Power: 48V Max Input: 14 dB Sample Rate: 48 kHz Dimension: 28 x 202 x 125 in. Weight: 1.31 lbs
