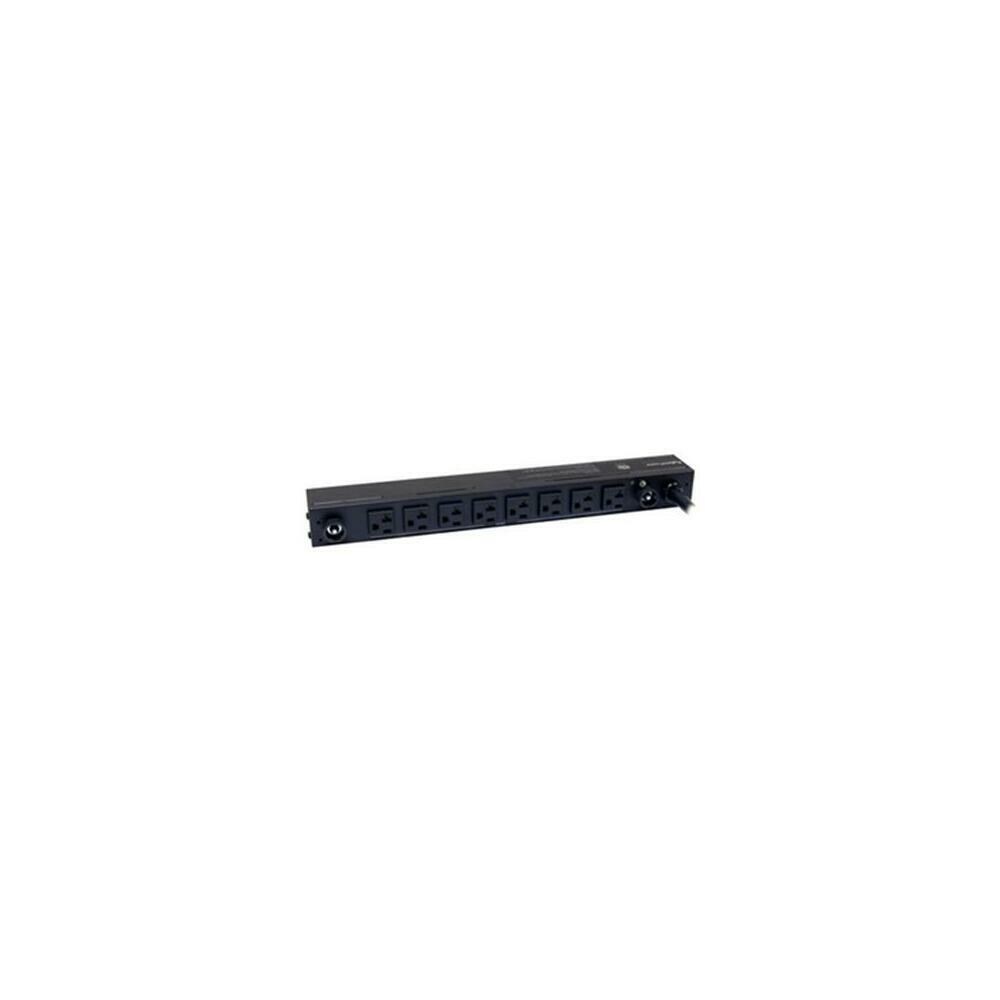

The 16-outlet (8 Front/8 Rear) rack mount basic power distribution unit () provides 120V 30A output. It distributes power to 16 NEMA 5-20R receptacles from a single NEMA L5-30P twist lock plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications this unit has a rugged industrial-grade metal housing and a 12-foot AC power cord. It can be mounted either horizontally or vertically includes a cord retention tray and is ETL/RoHS certified.Type: PDU.Current: 30 A Maximum Input Current 24 A Derated Input Current.Form Factor: 1U Rack-mountable Zero U Vertical Rackmount.Input Receptacles: NEMA L5-30P.Output Receptacles: 16 x NEMA 5-20R.Dimensions: 1.8'' Height x 17.5'' Width x 2.3'' Depth.Input Voltage: 120 V AC.Output Voltage: 120 V AC.Green Compliant: Yes.Green Compliance Certificate/Authority: RoHS.Frequency: 60 Hz.Protection Type: Overload Protection.Number of Output Connections: 16.
