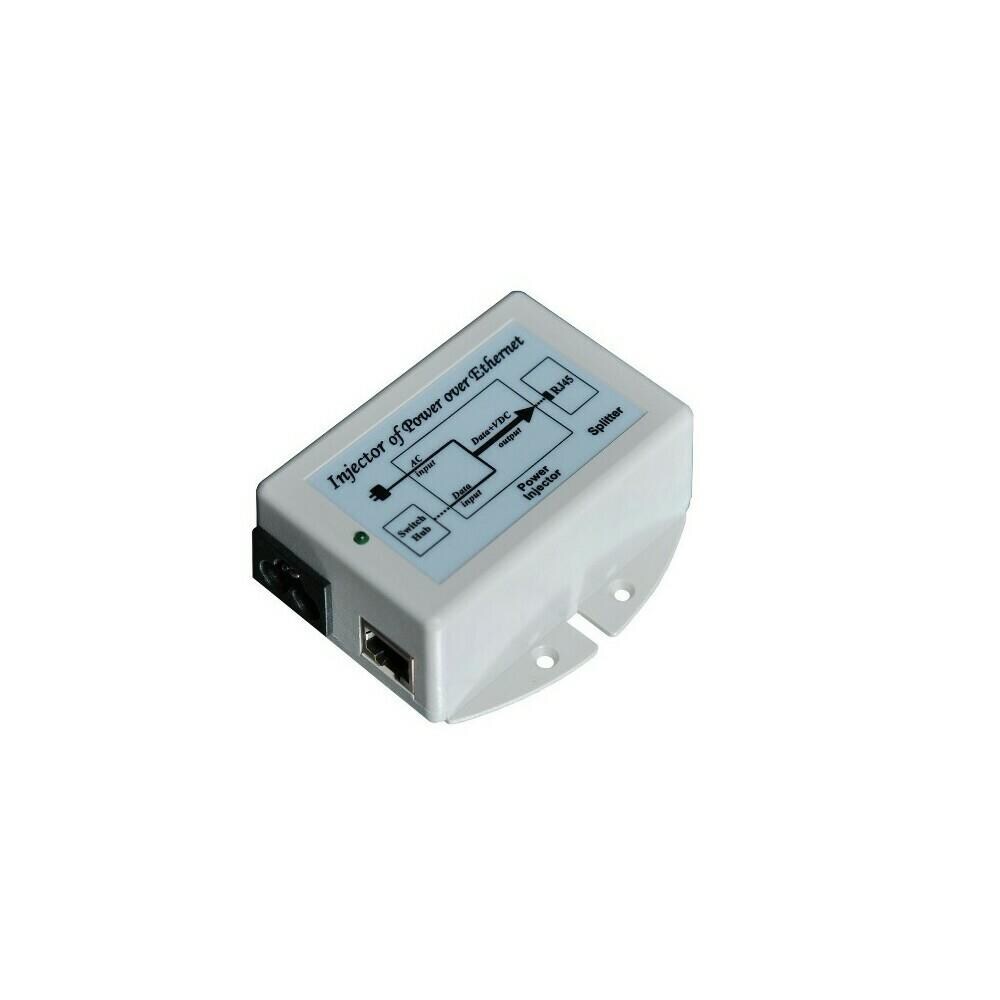

Tycon Systems TP-POE-24 18W POE Power Source with US Power Cord- 24V

The TP-POE Power Over Ethernet Power Sources offered by Tycon Power Systems are quality midspan power sources for years of reliable operation even in the toughest conditions. They accept data-in to a shielded RJ45 Jack and provide surge protected data-out and power on the shielded RJ45 output jack. They work by supplying power to the remote device on the unused Ethernet pins 4, 5( V+) and 7, 8( V-). Features. Remotely power equipment thru cat5 cable up to 100m. Built in Ethernet and ac surge protection. Autoranging switching power supply. Short circuit, over current and over voltage protection. High temperature industrial operation. Compact size - floor/desktop/wall mount Specifications. AC Input - 90-264VAC, 47-63Hz. Max Inrush Current ( 120VAC) - 30A. Efficiency - 85 Percent. Line/Load Regulation - 1 Percent/5 Percent. Ripple/Noise - 1 Percent/2 Percent. Protections - Over-Voltage, Short Circuit, Over-Current. Operating Temperature - 30 to +60 degreesC. Operating Humidity - 5 Percent - 90 Percent. Storage Temperature - 40 to +80 degreesC. POE Output Voltage - 24V. Output Current - 0.8A. Output Power - 19W. POE Type - Passive. 10/100MB POE Power Inserter, Surge Protected, US Power Cord
