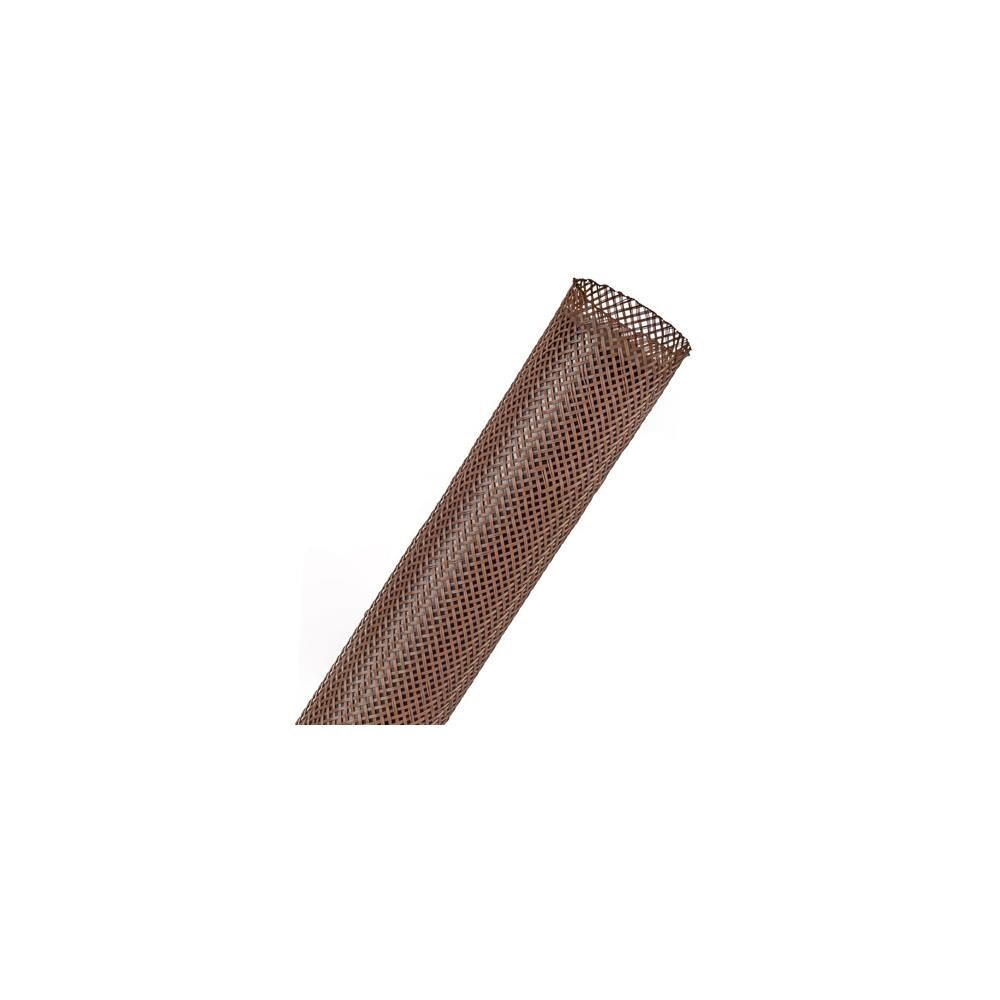

The unique braided construction and wide expandability allows quick and easy installation over large connectors and long runs. PT can be found in applications ranging from small office/home office to high tech wire and cable harnesses. PT is braided from 10 mil polyethylene terepthalate ( PET) monofilament yarns. The material has a wide operating temperature range, is resistant to chemical degradation, UV radiation, and abrasion. The sleeving cuts easily and cleanly with a hot knife and once installed, will beautify and protect any wire, hose or cable application. Physical Properties. Monofilament Thickness ( ASTM D-204):.010. Flammability Rating: UL-94. Recommended Cutting: Hot Knife. Color: Neon Yellow. Wall Thickness:.025. Tensile Strength - Yarn ( ASTM D-2265) lbs.: 7.5. Abrasion Resistance: Medium. Specific Gravity: 1.38. Moisture Absorption Percent ( ASTM D-570):.1 -.2 Hard Vacuum Data ( ASTM E-595 at 10-5 torr). TML:.19. CVCM:.00. WVR:.16. Smoke D-Max ( ASTM E-662): 56. Outgassing: Medium. Oxygen Index ( ASTM D-2863): 21 Operating Temperatures. Minimum Continuous: -94 degrees F/-70 degrees C. Maximum Continuous ( MIL-I-23053): 257 degrees F/125 degrees C. Melt ( ASTM D-2117): 482 degrees F/250 degrees C Specifications. Color: Brown. Size: 2.5-". Spool Length: 200'. Weight: 5 lbs
