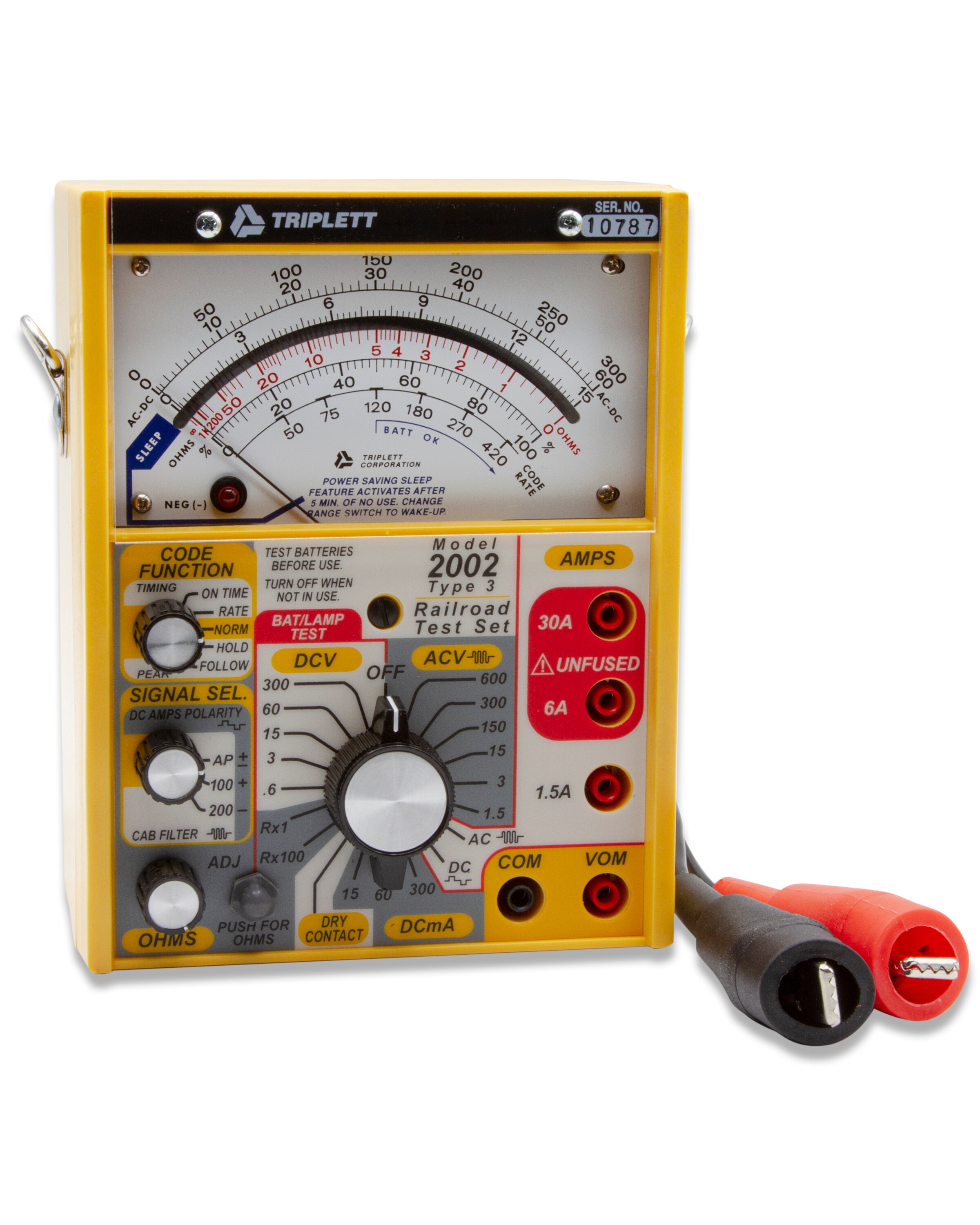

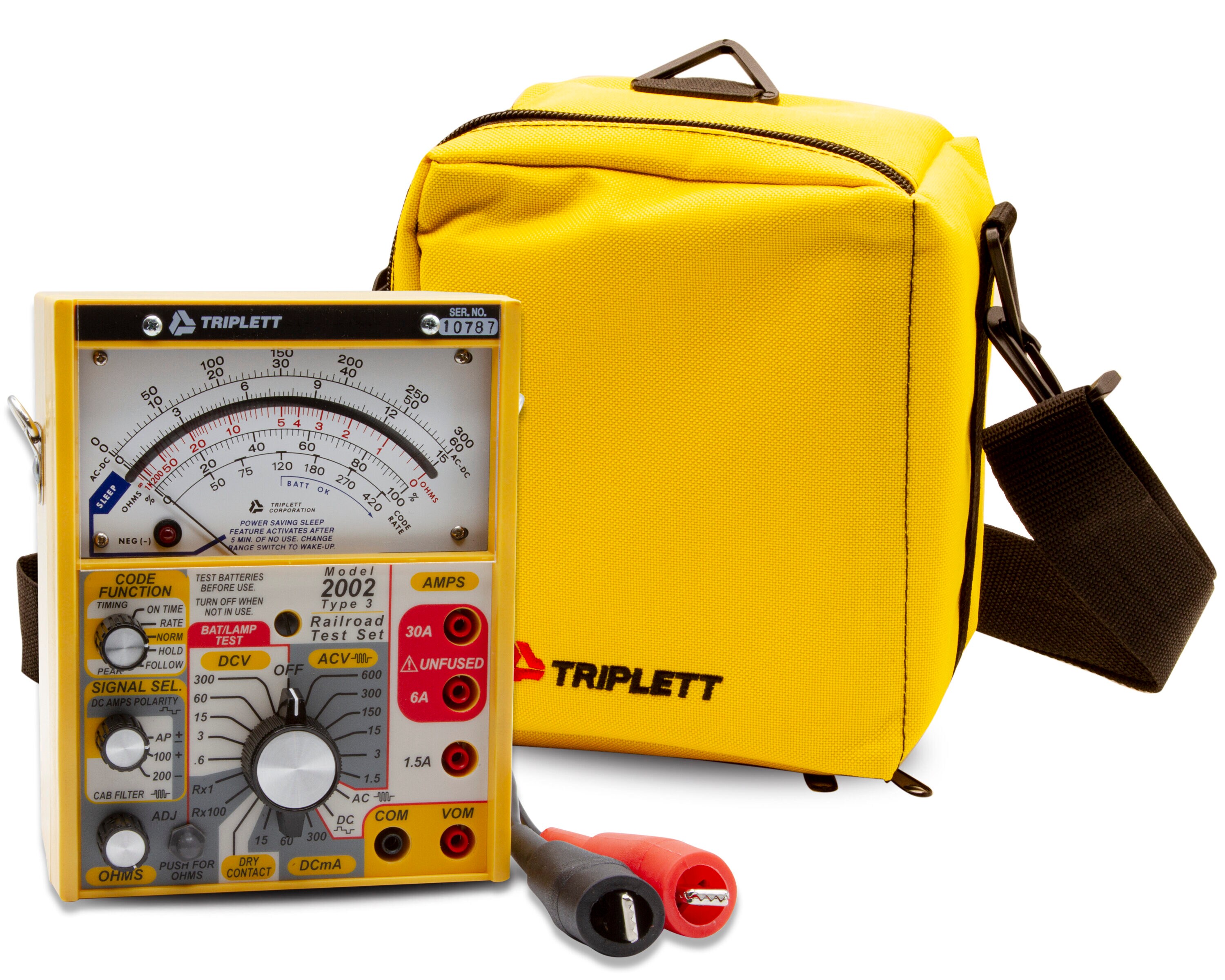

The Triplett 2000 Series Railroad Testers are designed to perform standard maintenance tasks (using Volts, Ohms, and Amps measurements) as well as specialized tasks requiring measurements on railroad coding equipment. Model 2002 includes all of the features of the Model 2000 with the addition of Cab Filters. Designed for rapid transit/commuter type railroads using both 100Hz and 200Hz coding systems. Includes: test leads, padded water repellent carrying case, shoulder strap, and batteries.
Both 1000Hz and 200Hz Cab Filters
All Pass position bypasses Cab Filters
Auto Polarity in DC functions
Both Auto and Selectable DC Amps Polarity
Direct measurement of Code Parameters
Ohmmeter Voltage Mode detects foreign AC or DC Voltages
Relay Contact On Time (Dry Contact) requires no adjustment
Peak measurements require no adjustment
