Titan ControlMax 1700 Electric Stationary Airless Paint Sprayer
Item #875370 |
Model #0580009
Airless paint sprayer designed for general contractors and experienced homeowners

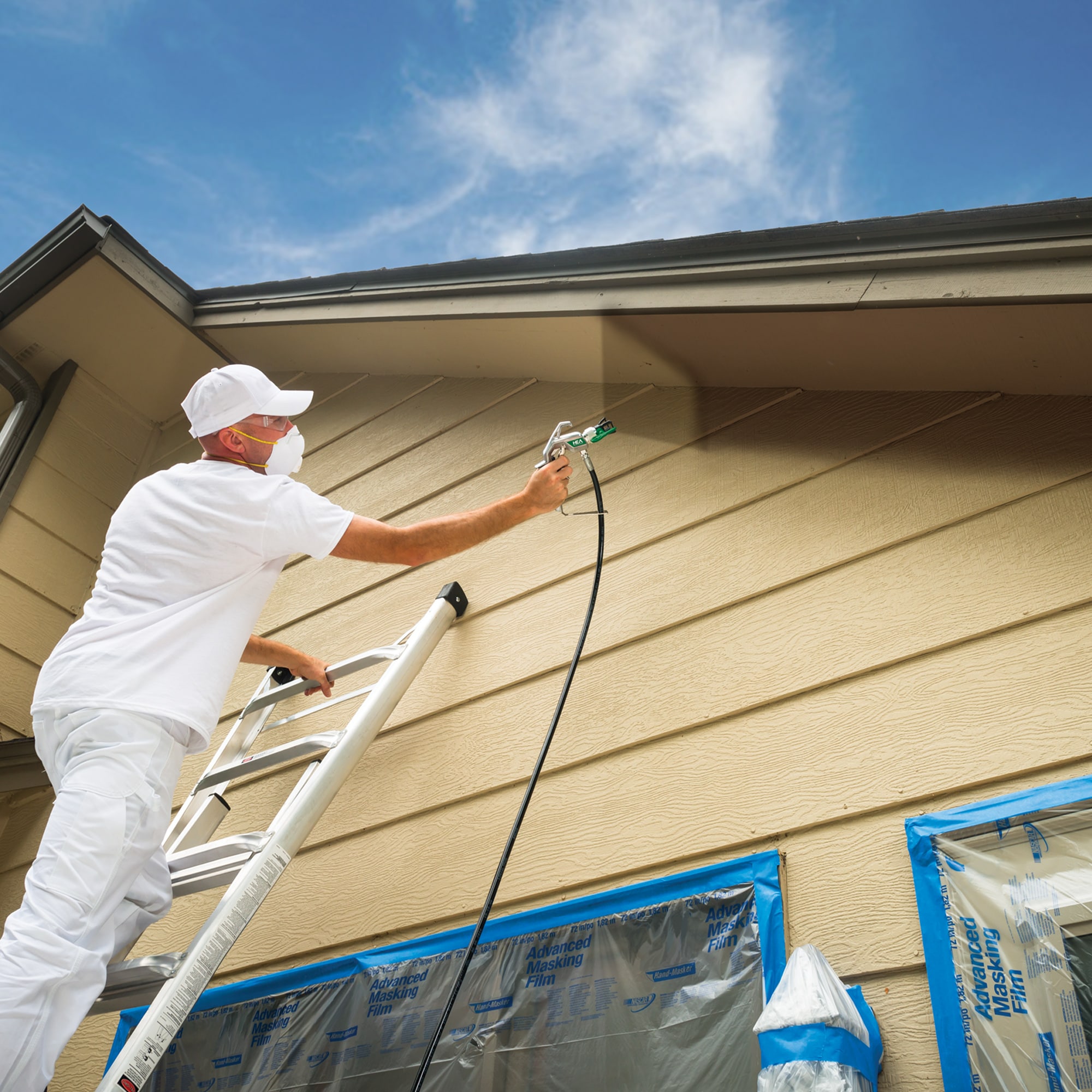

Perfect for painting big projects like home exteriors, fences, decks, garages and more
High Efficiency Airless (HEA) technology decreases overspray by up to 55% compared to traditional airless sprayers
Long lasting and can spray up to 300 gallons per year

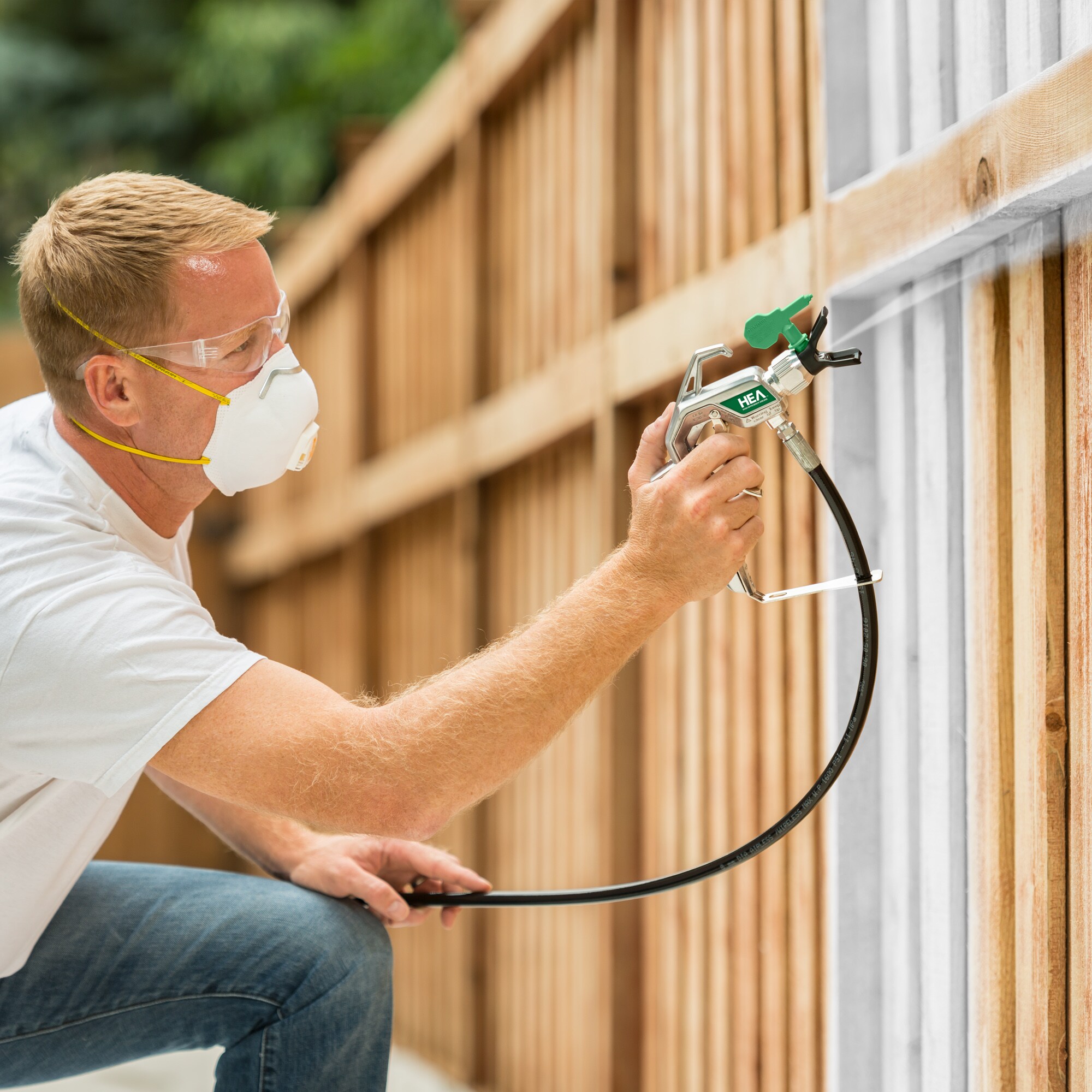

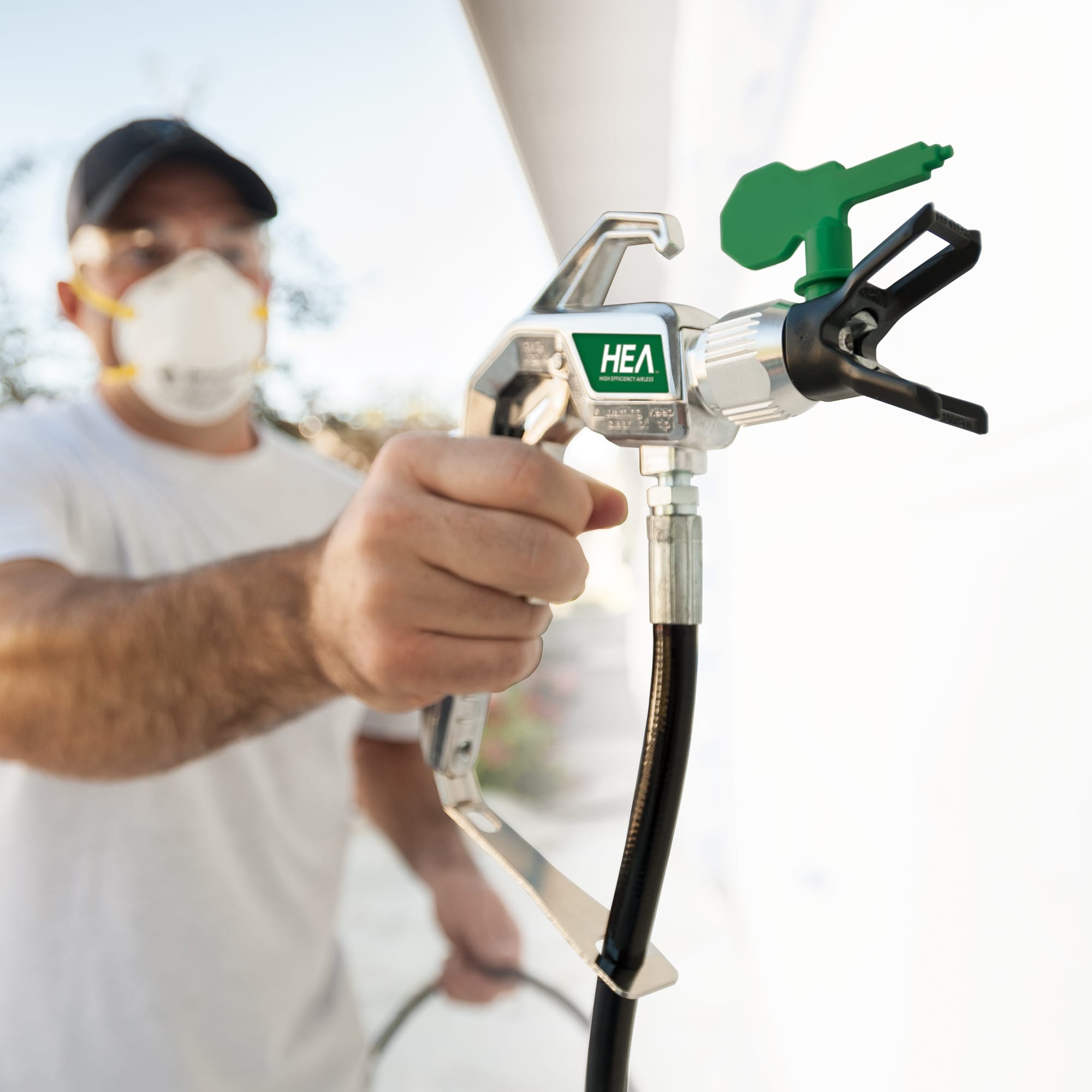

All-metal gun for added durability and performance
Includes 30 ft hose (can be extended up to 80 ft) to reach large areas
0.60 horsepower pump that can spray unthinned paints and stains
Sprays up to .33 gallons per minute, ensuring great productivity
Take your painting to the next level with the free ControlMax app - Get recommended settings based on your exact paint, quick access to support info and keep records of all your painting jobs in a single spot - Available for free on Google and Apple App Stores
General | |||
|---|---|---|---|
Gun Trigger Type | 2-finger | Housing Material | Metal |
Spray Gun Material | Metal | Type | Stationary |
Cup Fed | No | Grade | Residential |
Direct Syphon | Yes | Pump Type | Piston |
Material Flow Control | Yes | Power Source | Electric |
Airflow (CFM) | 0 | Use Location | Indoor/Outdoor |
Collection/Series Name | ControlMax 1700 | Series Name | ControlMax 1700 |
Dimensions | |||
|---|---|---|---|
Diameter of Hose Included | 1/4-in | Tip Size Code | 515 |
Maximum Hose Length Capability (Feet) | 80 | Depth (Inches) | 20 |
Direct Syphon Capacity | 1-5 gallon | Height (Inches) | 18.5 |
Minimum Tip Size (Inches) | 0.011 | Weight (lbs.) | 22.5 |
Maximum Fan Pattern Width (Inches) | 12 | Width (Inches) | 13.25 |
Minimum Fan Pattern Width (Inches) | 6 | Hose Length (Feet) | 30 |
Maximum Hose Length (Feet) | 80 | Maximum Tip Size (Inches) | 0.017 |
Tip Size | 0.015-in | Battery Amp Hours | 0 |
Features | |||
|---|---|---|---|
Actual Gallons per Minute | .33 | Voltage (Volts) | 120 |
Built-In Hose Swivel | Yes | Pressure Rating (PSI) | 1500 |
Multi-Directional Spray | Yes | Flow Rate (GPM) | 0 |
Spray Gun Filter | No | Adjustable Spray Pattern | Yes |
Variable PSI | No | Engine Horsepower | .6 |
Adjustable Fan Pattern Control | Yes | Cordless | No |
Pump Replaceable | Yes | Wheeled | No |
Battery(s) Included | No | ||
Compatibility | |||
|---|---|---|---|
For Use with Latex Paints | Yes | For Use with Decking | Yes |
For Use with Oil Paints | Yes | For Use with Fencing | Yes |
For Use with Oil-Based Stains | Yes | For Use with Acrylic Paints | Yes |
For Use with Urethanes and Varnishes | Yes | For Use with Lacquers | No |
For Use with Doors | Yes | For Use with Water-Based Paints | Yes |
For Use with Walls | Yes | For Use with Elastomerics | No |
For Use with Floors & Ceilings | Yes | Use with Material Flash Point (Degrees) | 100 |
For Use with Woodworking Projects | No | For Use with Stains | Yes |
For Use with Furniture & Cabinets | No | ||
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | Safety Listing | ETL safety listing | |
Warranty | |||
|---|---|---|---|
Warranty | 2-year limited | ||
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 31211900 | ||
Check out the Best Selling Airless Paint Sprayers on Lowes.com
Ratings may include incentivized customer reviews.
What Customers Are Saying
The product is a versatile and efficient airless paint sprayer that is easy to use and produces a high-quality, even spray with minimal overspray. It allows for precise control and adjustment of the paint flow, and has a durable all-metal spray gun. While some users experienced minor issues like occasional clogging or hose kinking, the sprayer is generally considered a great value for the price and is recommended for medium to large painting jobs.
Customer review summary generated by AI, including incentivized reviews.I don't know why Lowes sells this brand
misleading model numbers, I bought the "1700" because it was the middle range unit and the specs say it will spray unthinned primer. turns out it only produces 1500 PSI, Even their top model, th "1900" only produces 1600 PSI. Most primers need 2000 PSI. Don't waste your time.
Titan Controlmax 1700 Great Sprayer
Compared to Wagner Pro 130, this sprayer operated and had a better spray pattern, better controlled and handles the primer and finishing paint with better ease. Cost was worth the purchase.
Verified Purchaser
Na
NA
Verified Purchaser
We can't help, if we don't know what went wrong. We have terrific Product Support at customerservice@wagner-group.com or 1-800-328-8251. ...
Great product for beginner
[This review was collected as part of a promotion.] This sprayer was great. Easy to use and clean to change to another color. We used it to paint our whole house including the ceilings. Wouldn't use much for smaller projects but for large ones makes easy.
From wagnerspraytech.com
Good luck with all your projects. Thanks for your review.
worthless
i bought one 24 hrs ago snd it simply doesn't spray paint without having to stop literally every 5 seconds to clear the tip. the paint is also bought at the same time as sprayer snd hss been thinned. i spent $550 and as i speak painting my house with a roller !!!! i only gave it one star because this wont allow zero
We're sorry to hear about the issue you're having. With airless paint sprayers the tip size bust match the paints requirements. Does the pain...
6 Questions
1
Answer
1
Answer
1
Answer
will this spray Basement & masonry waterproofer on walls
Anonymous on April 24, 20200
Answers
Can you use this to apply oil based primer without clogging up the sprayer ? Do you need to add floetrol to the paint before using sprayer
Anonymous on March 17, 20200
Answers
Can you use this to apply oil based primer without clogging up the sprayer ? Do you need to add floetrol to the paint before using sprayer
Anonymous on March 17, 20200
Answers
Thank you very much.
