Titan Control Max 1700 Paint Sprayer and Attachments
Collection Items
SUCCESSWhen should I expect to get my items?
See availability by item











Item #875370 |
Model #0580009
Airless paint sprayer designed for general contractors and experienced homeowners
Perfect for painting big projects like home exteriors, fences, decks, garages and more
High Efficiency Airless (HEA) technology decreases overspray by up to 55% compared to traditional airless sprayers
Long lasting and can spray up to 300 gallons per year
All-metal gun for added durability and performance
Includes 30 ft hose (can be extended up to 80 ft) to reach large areas
0.60 horsepower pump that can spray unthinned paints and stains
Sprays up to .33 gallons per minute, ensuring great productivity
Take your painting to the next level with the free ControlMax app - Get recommended settings based on your exact paint, quick access to support info and keep records of all your painting jobs in a single spot - Available for free on Google and Apple App Stores
General | |||
|---|---|---|---|
Gun Trigger Type | 2-finger | Housing Material | Metal |
Spray Gun Material | Metal | Type | Stationary |
Cup Fed | No | Grade | Residential |
Direct Syphon | Yes | Pump Type | Piston |
Material Flow Control | Yes | Power Source | Electric |
Airflow (CFM) | 0 | Use Location | Indoor/Outdoor |
Collection/Series Name | ControlMax 1700 | Series Name | ControlMax 1700 |
Dimensions | |||
|---|---|---|---|
Diameter of Hose Included | 1/4-in | Tip Size Code | 515 |
Maximum Hose Length Capability (Feet) | 80 | Depth (Inches) | 20 |
Direct Syphon Capacity | 1-5 gallon | Height (Inches) | 18.5 |
Minimum Tip Size (Inches) | 0.011 | Weight (lbs.) | 22.5 |
Maximum Fan Pattern Width (Inches) | 12 | Width (Inches) | 13.25 |
Minimum Fan Pattern Width (Inches) | 6 | Hose Length (Feet) | 30 |
Maximum Hose Length (Feet) | 80 | Maximum Tip Size (Inches) | 0.017 |
Tip Size | 0.015-in | Battery Amp Hours | 0 |
Features | |||
|---|---|---|---|
Actual Gallons per Minute | 0.33 | Voltage (Volts) | 120 |
Built-In Hose Swivel | Yes | Pressure Rating (PSI) | 1500 |
Multi-Directional Spray | Yes | Flow Rate (GPM) | 0 |
Spray Gun Filter | No | Adjustable Spray Pattern | Yes |
Variable PSI | No | Engine Horsepower | 0.6 |
Adjustable Fan Pattern Control | Yes | Cordless | No |
Pump Replaceable | Yes | Wheeled | No |
Battery(s) Included | No | ||
Compatibility | |||
|---|---|---|---|
For Use with Latex Paints | Yes | For Use with Decking | Yes |
For Use with Oil Paints | Yes | For Use with Fencing | Yes |
For Use with Oil-Based Stains | Yes | For Use with Acrylic Paints | Yes |
For Use with Urethanes and Varnishes | Yes | For Use with Lacquers | No |
For Use with Doors | Yes | For Use with Water-Based Paints | Yes |
For Use with Walls | Yes | For Use with Elastomerics | No |
For Use with Floors & Ceilings | Yes | Use with Material Flash Point (Degrees) | 100 |
For Use with Woodworking Projects | No | For Use with Stains | Yes |
For Use with Furniture & Cabinets | No | ||
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | Safety Listing | ETL safety listing | |
Warranty | |||
|---|---|---|---|
Warranty | 2-year limited | ||
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 31211900 | ||
Ratings may include incentivized customer reviews.
What Customers Are Saying
The product is a versatile and efficient airless paint sprayer that is easy to use and produces a high-quality, even spray with minimal overspray. It allows for precise control and adjustment of the paint flow, and has a durable all-metal spray gun. While some users experienced minor issues like occasional clogging or hose kinking, the sprayer is generally considered a great value for the price and is recommended for medium to large painting jobs.
Customer review summary generated by AI, including incentivized reviews.I don't know why Lowes sells this brand
misleading model numbers, I bought the "1700" because it was the middle range unit and the specs say it will spray unthinned primer. turns out it only produces 1500 PSI, Even their top model, th "1900" only produces 1600 PSI. Most primers need 2000 PSI. Don't waste your time.
Good quality, but need to improve instructions
[This review was collected as part of a promotion.] The product seems to be very well made for the most part. If anything on the machine needs improvement, I would improve the quality of the spray gun hose. Hose seems like it would easily kink when tugged on. Since the hose was new, it was stiff and difficult to easily maneuver. Maybe a rubber hose instead of a plastic-like coated hose would be a better option. Being a novice to this type of machine (instead of the handheld sprayers), I had...
From wagnerspraytech.com
Solid airless sprayer for medium to large projects
[This review was collected as part of a promotion.] I upgraded from a Controlmax 1500 to 1700. The models are very similar with a couple of improvements on the 1700. The first thing I noticed right away is the weight of the 1700 is noticeably more. The metal frame/stand gives it some heft in a good way. With the 1500 I had to be very careful not to bump the sprayer or yank on the hose as it was fairly easy to tip over. The 1700 weight makes that less of a concern. Another improvement is the spra...
From wagnerspraytech.com
Controlmax 1700 Sprayer: Worth every penny

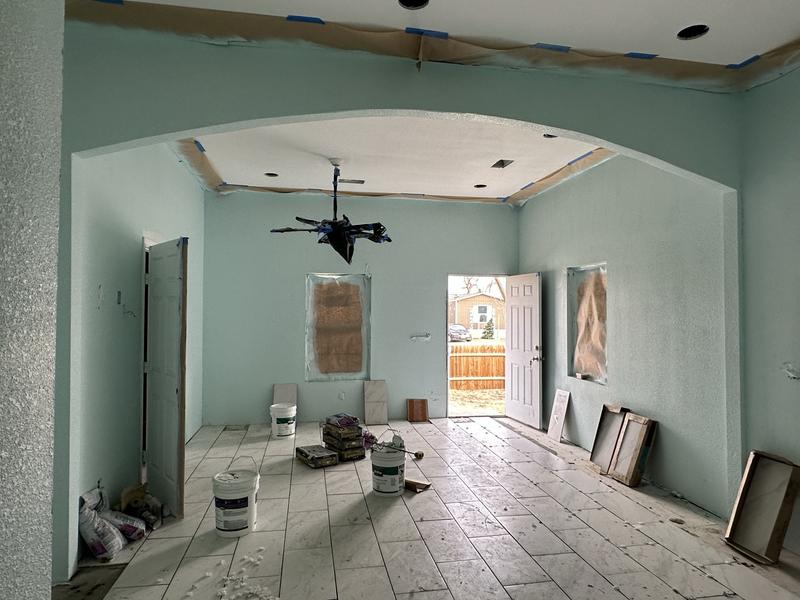

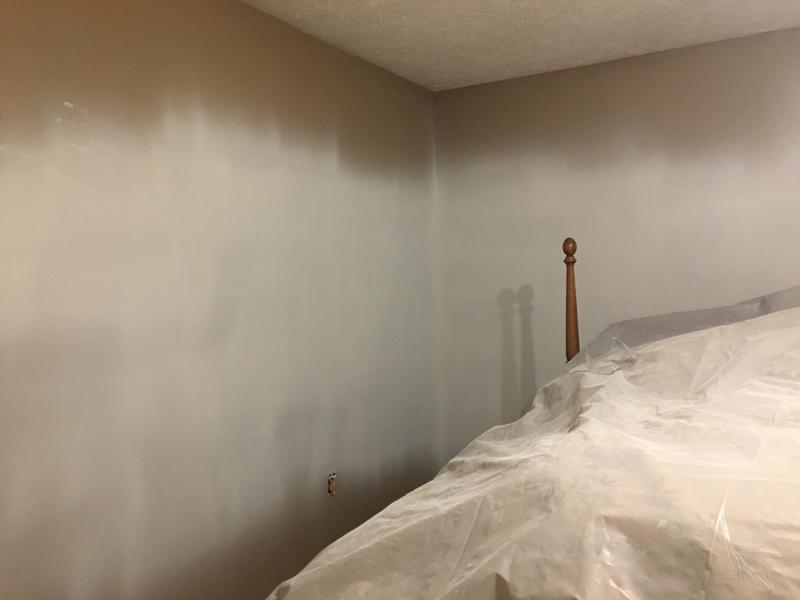

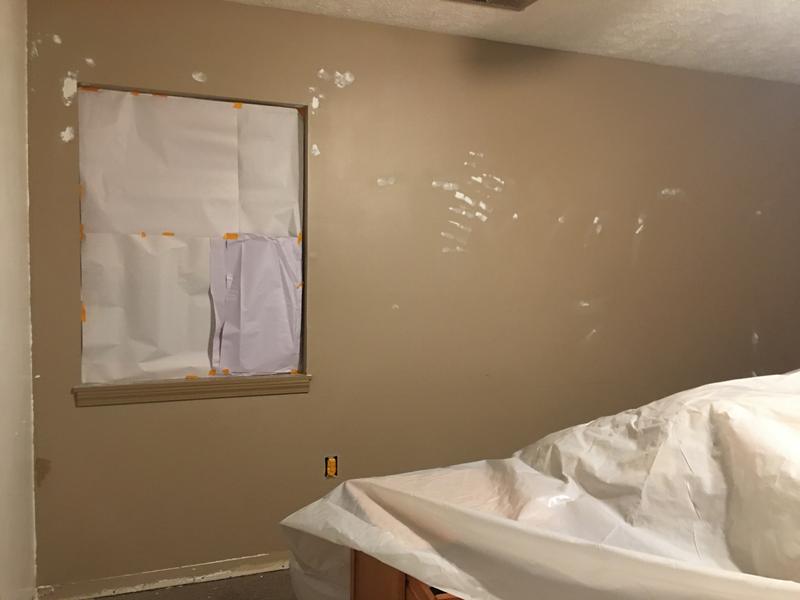

[This review was collected as part of a promotion.] I could not have asked for a better time to utilize the Control max 1700 sprayer. I am busy with multiple renovation projects, including painting multiple apartments and houses and wall and base cabinets. My first encounter involved painting a bedroom apartment, wall to wall, including the ceilings. The dimensions were 33 feet by 16 feet with a ceiling height of 10 feet and 3 inches. I used Behr semigloss paint and primer. The sprayer is super ...
From wagnerspraytech.com
Pleasantly surprised
[This review was collected as part of a promotion.] Was surprised when I realized this was a low pressure sprayer, 1500psi max. Used this for base trim and door jambs, the lower pressure helped control the overspray. Comes with a 30’ hose, that’s a bit stiff when combined with the gun provided. The sprayer it’s is lightweight and easily moved with the paint bucket when needed. Recommend straining the paint before use, the inlet filter screen will let small particles pass by. An extension cord wi...
From wagnerspraytech.com
CONTROLMAX 1700 Sprayer
[This review was collected as part of a promotion.] When I opened the sprayer I was a little intimidated by the extra assembly required and all the attachments and wondered if the sprayer was worth the trouble. It most certainly is! This sprayer has the precision and control of a smaller sprayer without the weight of a product cup. I was able to set the paint in the middle of the room and move around effortlessly because of the extra long spray hose. There was very little touch-up that needed do...
From wagnerspraytech.com
Best Airless Sprayer and Warranty

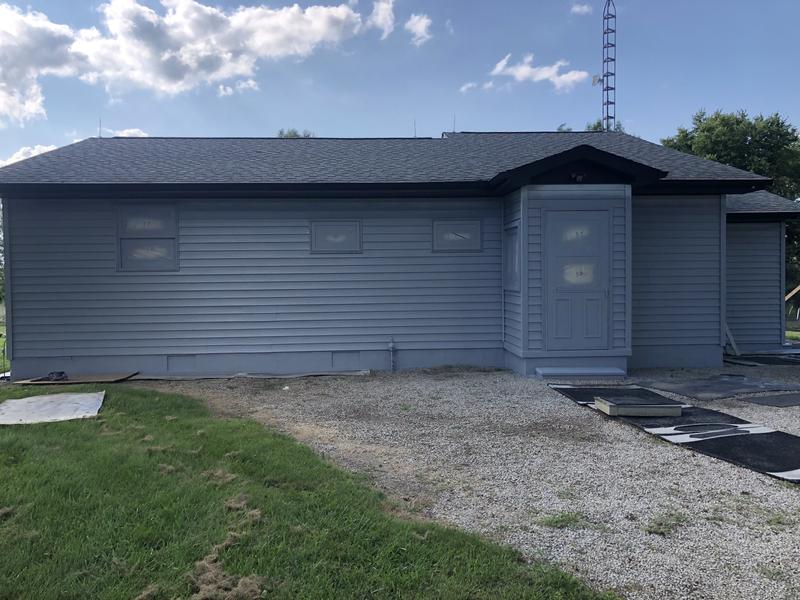

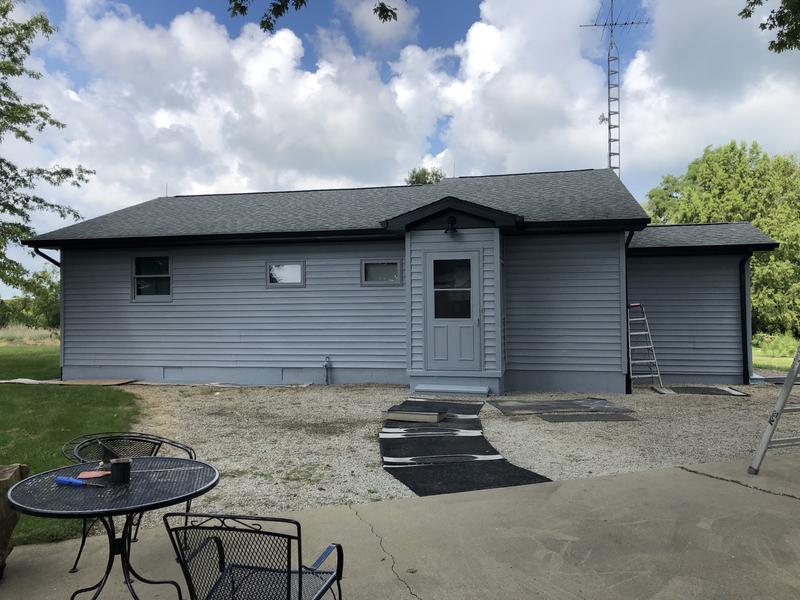

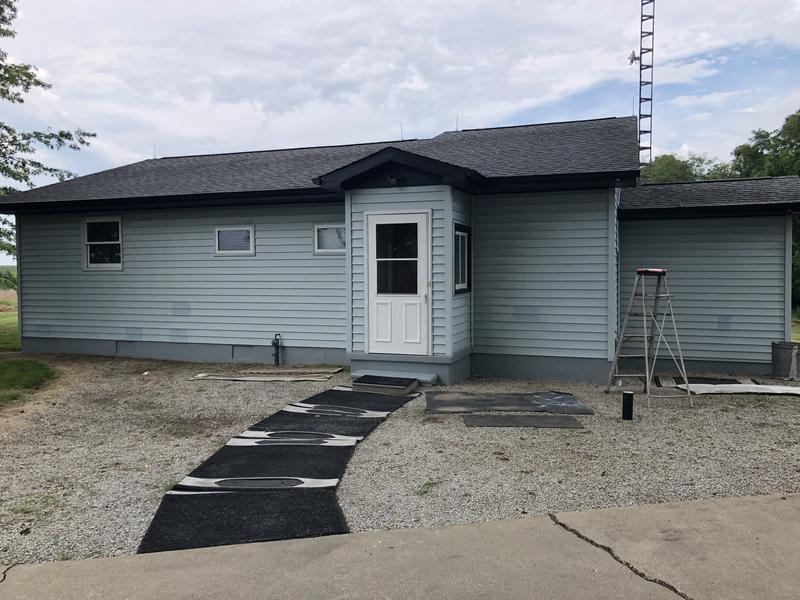

[This review was collected as part of a promotion.] We used the sprayer to repaint a vinyl sided house. Minimal overspray, no clogging, and no thinning of materials throughout the process. Easy clean up. I would suggest buying pro version with the cart. The sprayer really needs the cart to utilizing 5 gallon buckets of material and it makes the mobility way more efficient. The entire system is pretty lightweight. The length of hose included was ideal. We used both acrylic and latex paints spr...
From wagnerspraytech.com
Great for large projects
[This review was collected as part of a promotion.] So unfortunately due to massive amounts of rain where I live I have not been able to paint any large projects with this unit. But I have done some test sprays with it and compared to other sprayers I have used it seems to have less overspray like it claims and still lays down a fairly decent Coat of paint. I have attached photos showing how far the over spray goes and it is only a few inches with a very fine mist to about 8 in then nothing. Cle...
From wagnerspraytech.com
Saved a considerable amount of time
[This review was collected as part of a promotion.] Great sprayer for smaller outdoor jobs Gets the job done but I did have some trouble with keeping consistent spray pattern I thinned the paint a little bit and adjusted the pressure and that did help If I were going to tackle a highly detailed indoor project, I would prefer to use the 1900 model over this model I did not experience any leakage from hoses etc Would be nice if other tips came with the unit in addition to the 515- I used a roller...
From wagnerspraytech.com
Thank you for a great review ! We're glad the ControlMax 1700 did a great job overall. Some paints do required some thinning, however the ControlMax 1...
Very impressed!
[This review was collected as part of a promotion.] I was very impressed with the Titan ControMax 1700. it is a well thought out and built paint sprayer. We used it to paint two ceilings and a wall about 3 gallons of paint total. I wish we had had more to paint. It was that fun. It only took 30 minutes to paint everything the control max is very user friendly with good ergonomics. It put out a very consistent spray pattern with great coverage and very little over spray. Everything about the spra...
From wagnerspraytech.com
Thank you for your review.







Thank you for a great review ! We're glad your sprayer did a great job.
