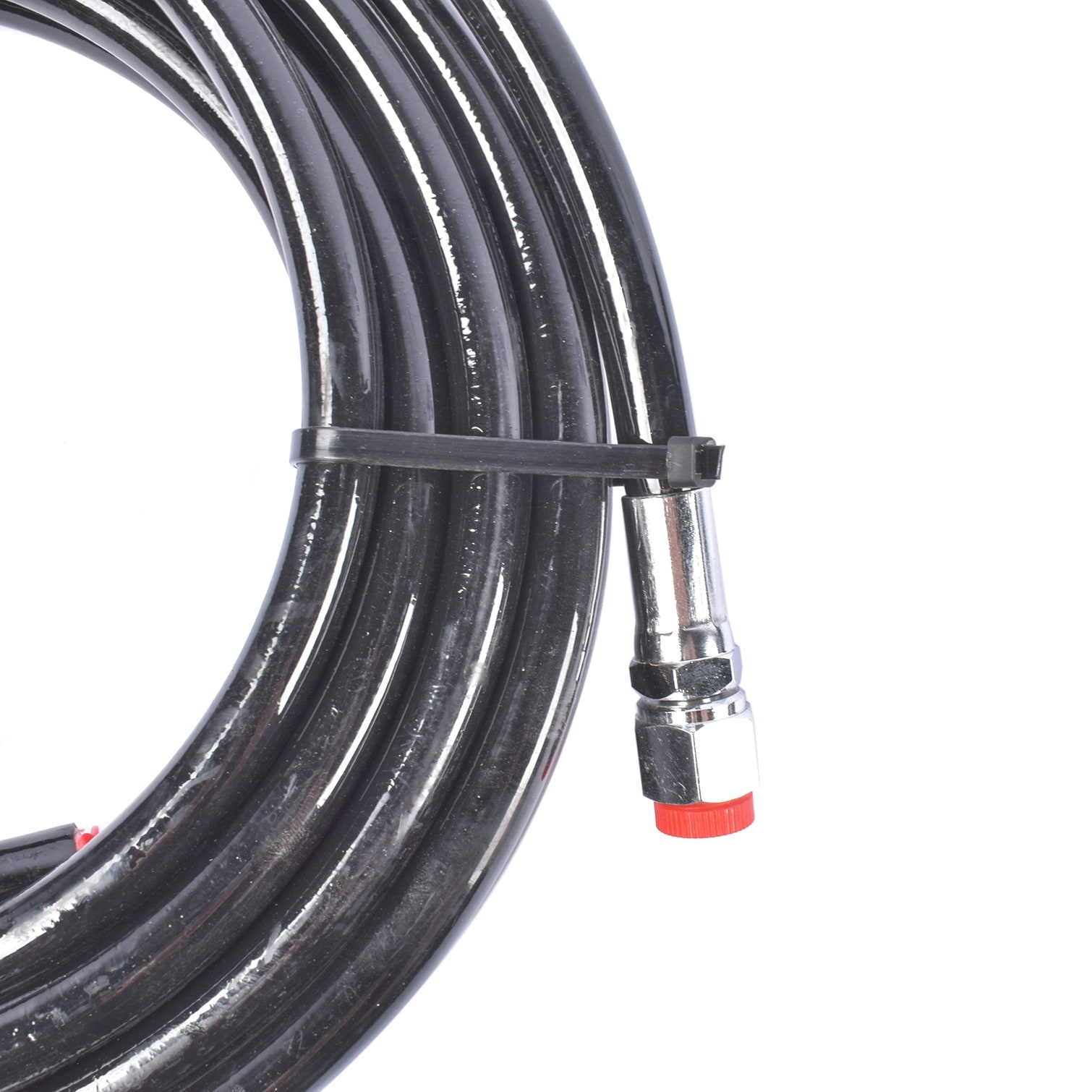

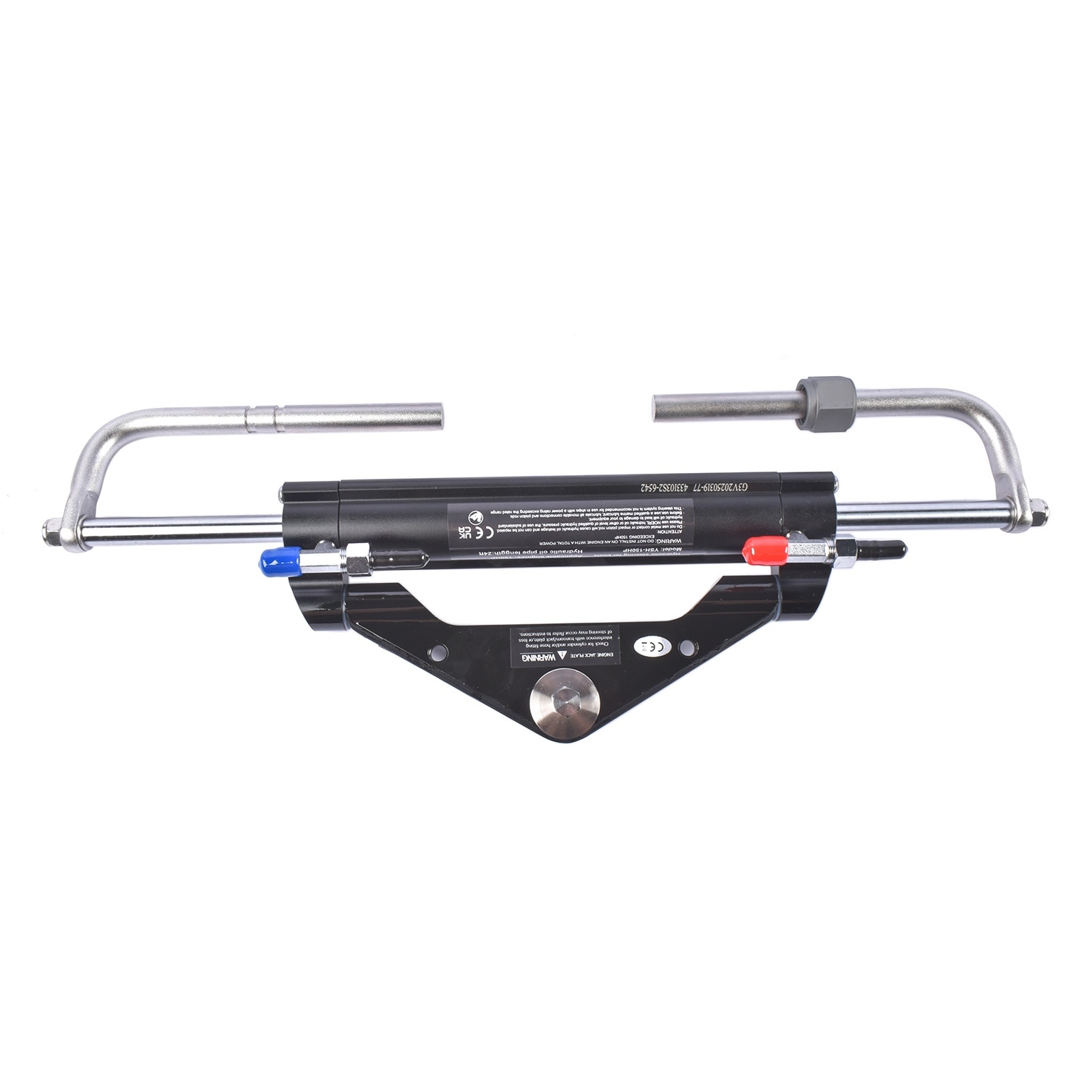

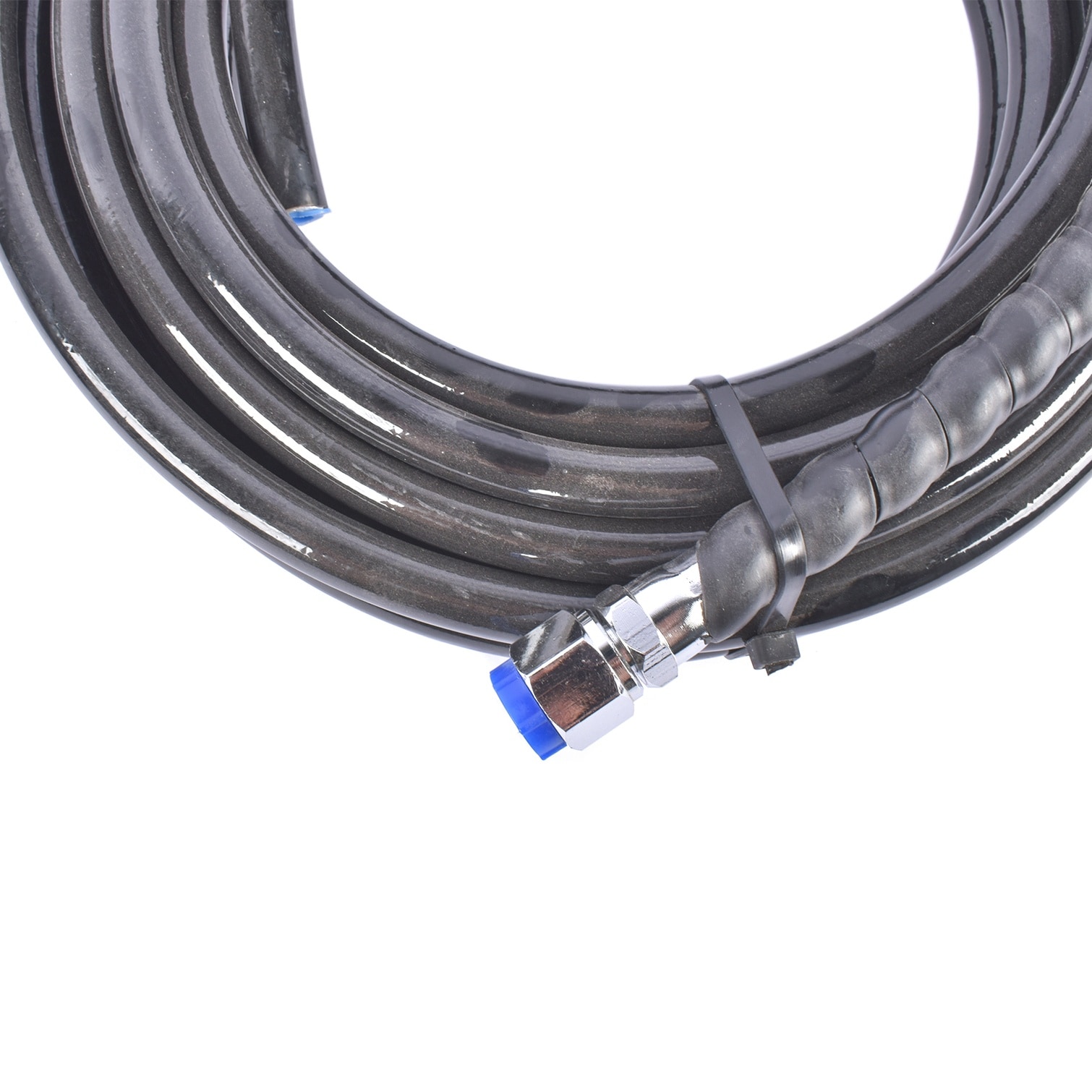

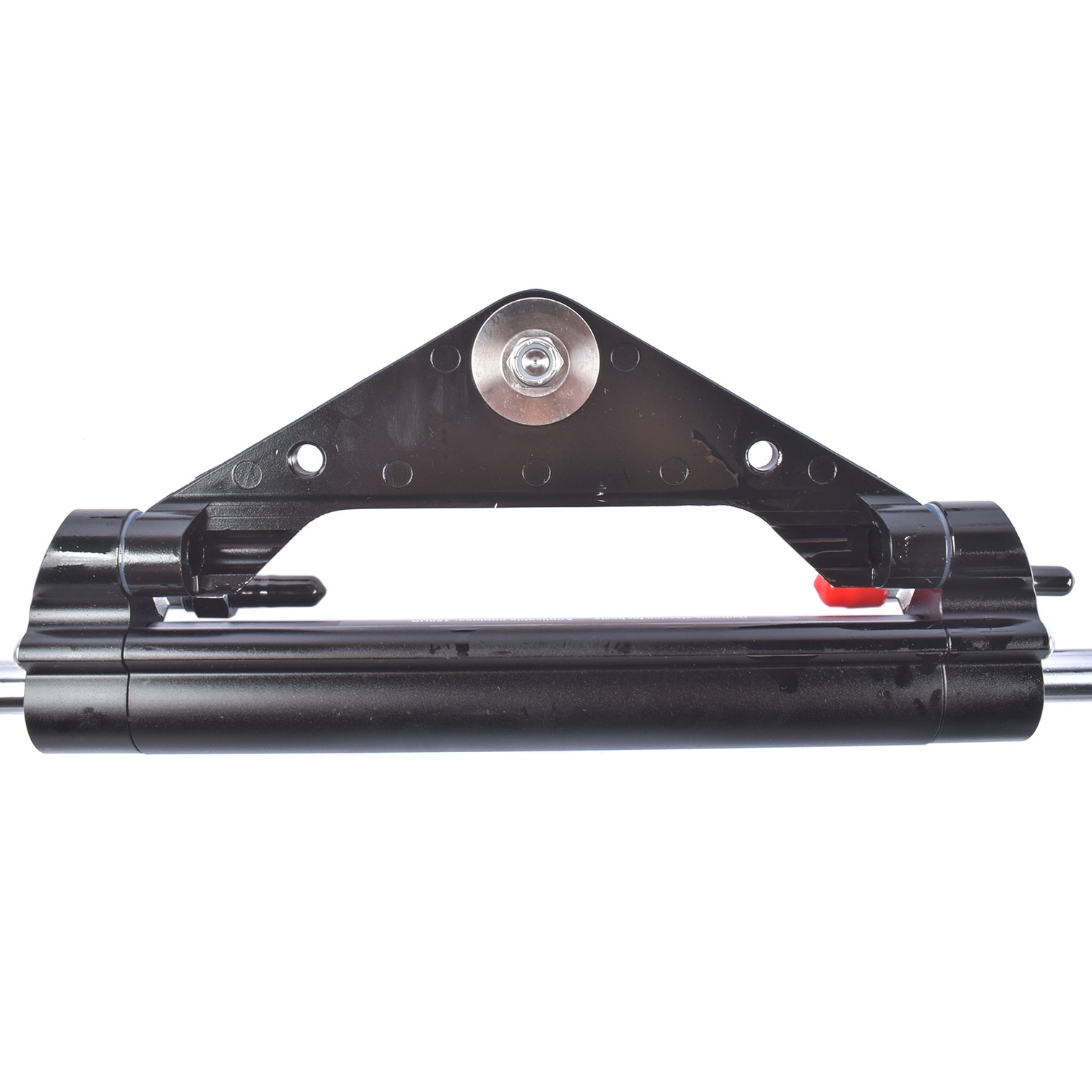

This hydraulic steering system kit provides responsive, low-effort control for single-engine marine vessels rated up to 150 horsepower. Included are a low-friction hydraulic pump, a precision-engineered steering cylinder, and two 24-foot high-pressure hoses, all designed to deliver smooth and reliable maneuvering. The system operates at a maximum pressure of 6.9 MPa and produces an output force of 400 kgf, ensuring confident handling in demanding conditions.

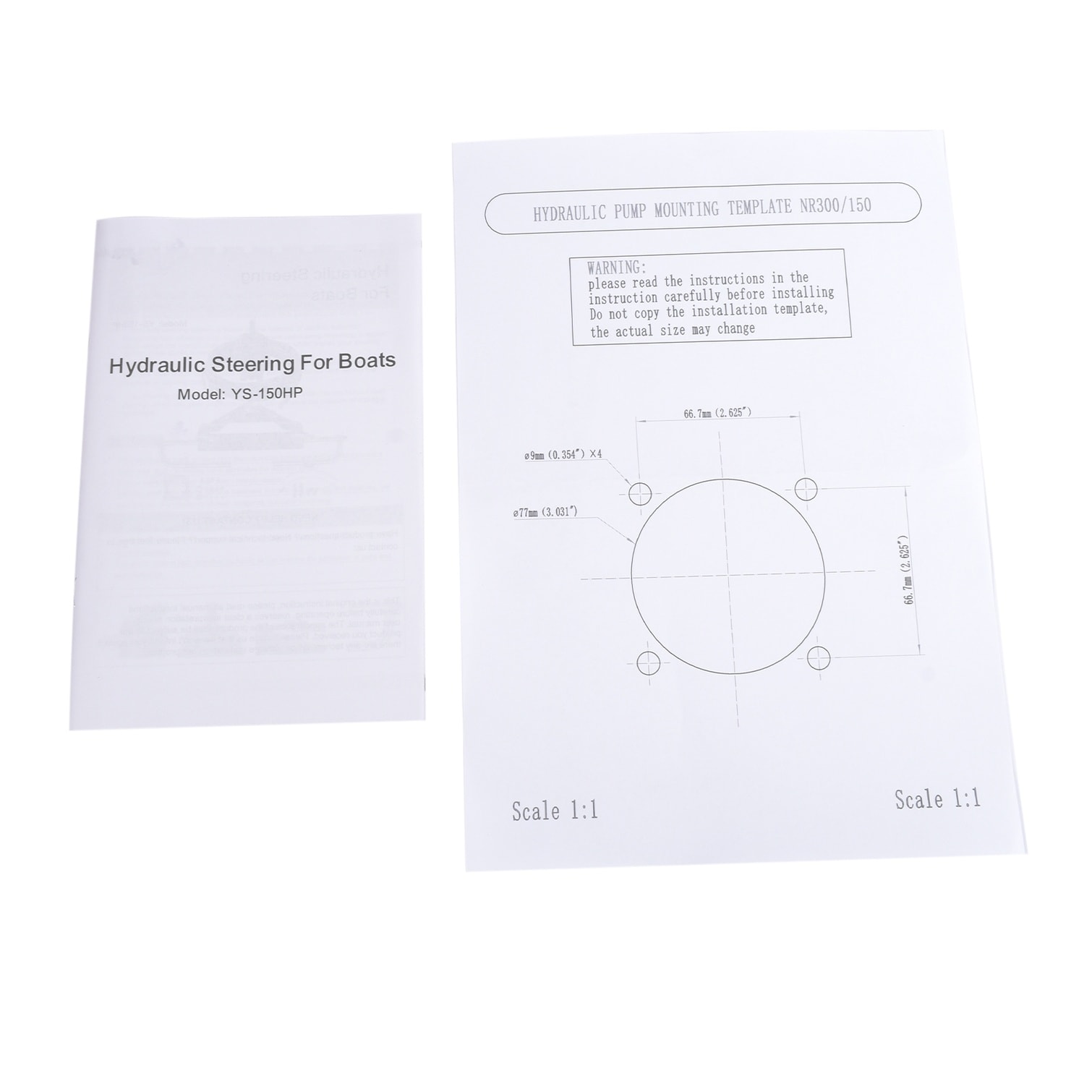

Constructed with a stainless steel cylinder and reinforced nylon hoses, this kit is built for durability in harsh marine environments. The package includes a complete accessory set with a G1/4 in connector, facilitating straightforward installation. With a stroke of 195 mm and a compact footprint, it accommodates various boat configurations, offering boat owners a dependable upgrade for their steering system.
Product Details
- Capacity: 117 CC
- Product Dimensions: 63.5 x 34.5 x 20 cm
- Appliable Engine Horsepower: 150HP
- Product Weight: 9.4 kg
- Pieces per Package: 1
- Tube l.D: 1.2 in / 30 mm
- Rod l.D: 0.6 in /16 mm
