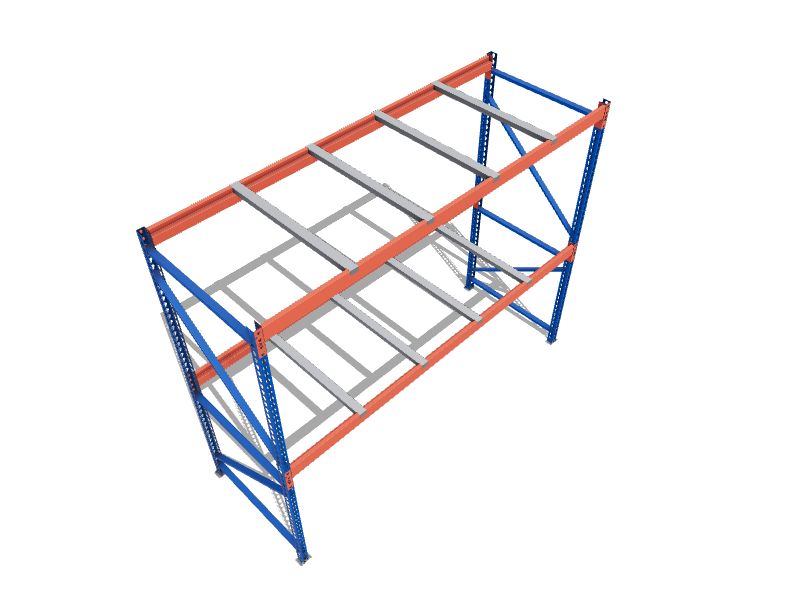

Storage concepts pallet rack is R-mark certified and designed for heavy duty warehouse and garage storage application. Choose between units with wire mesh decking or 8 pallet rack safety supports. Uprights are constructed form 14-gauge steel and feature a 3-in x 3-in standard column design with 5-in x 7.25-in base plate. Beams feature spring-loaded safety locks to secure firmly to the upright. Each level holds up to 5,340 lbs for 96-in W units and 4,390 lbs for 108-in W units (assuming evenly distributed weight). Levels are adjustable for 2-in increments along uprights. Upright capacity 24,572 lbs based upon 36-in maximum unsupported span. Starter units include four beams and two uprights. Add-on units include 4 beams and one upright.
With R-mark certification in accordance with the RMI standard for safe design and installation of steel storage racks
Available as a starter unit or an add-on unit
5,340-Lb capacity per shelf (when weight evenly distributed)
Beams adjustable every 2-in

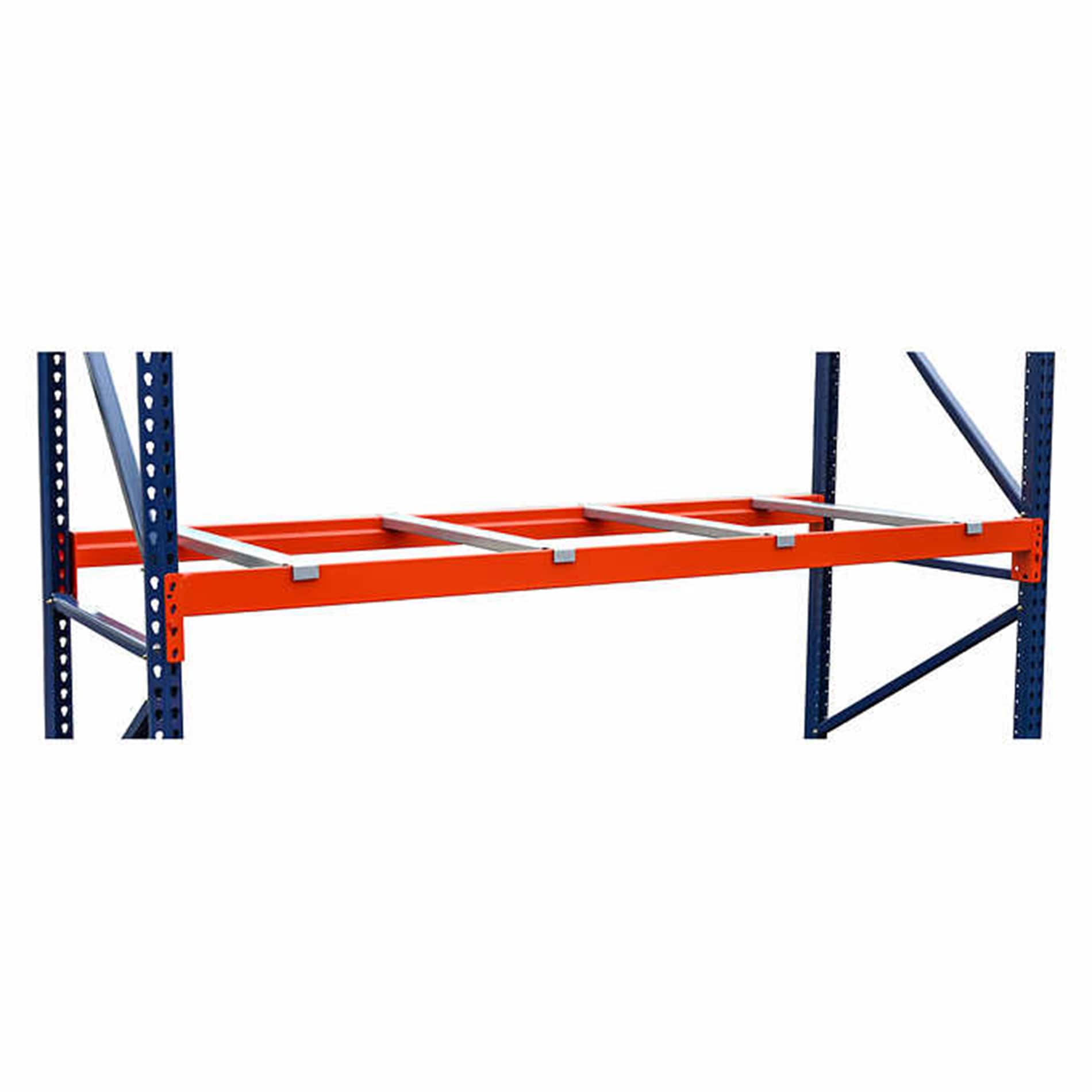

Includes 8 steel safety supports

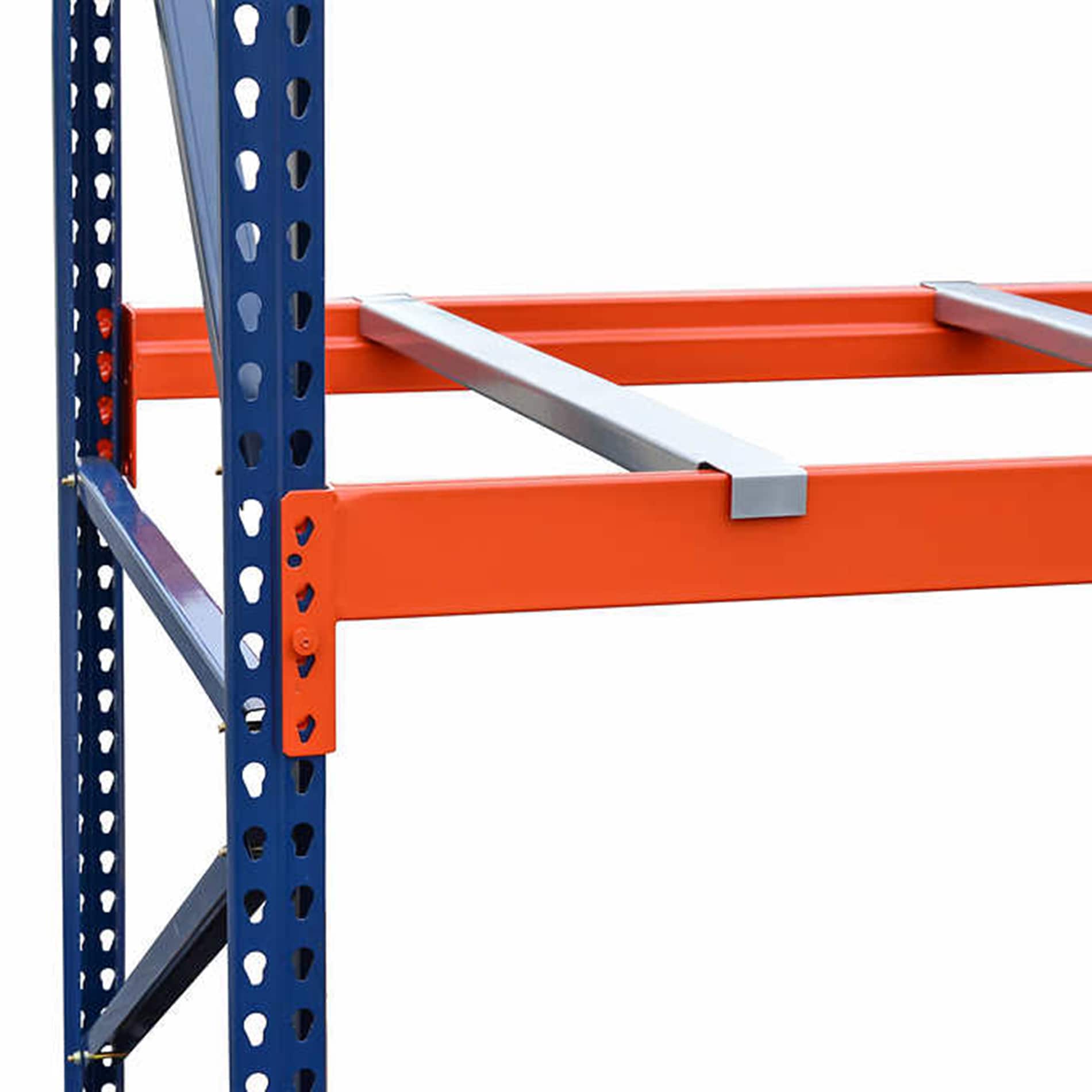

Step-load beam features 2 built-in safety devices to prevent from accidental dislodging from upright
Uprights ship fully assembled
