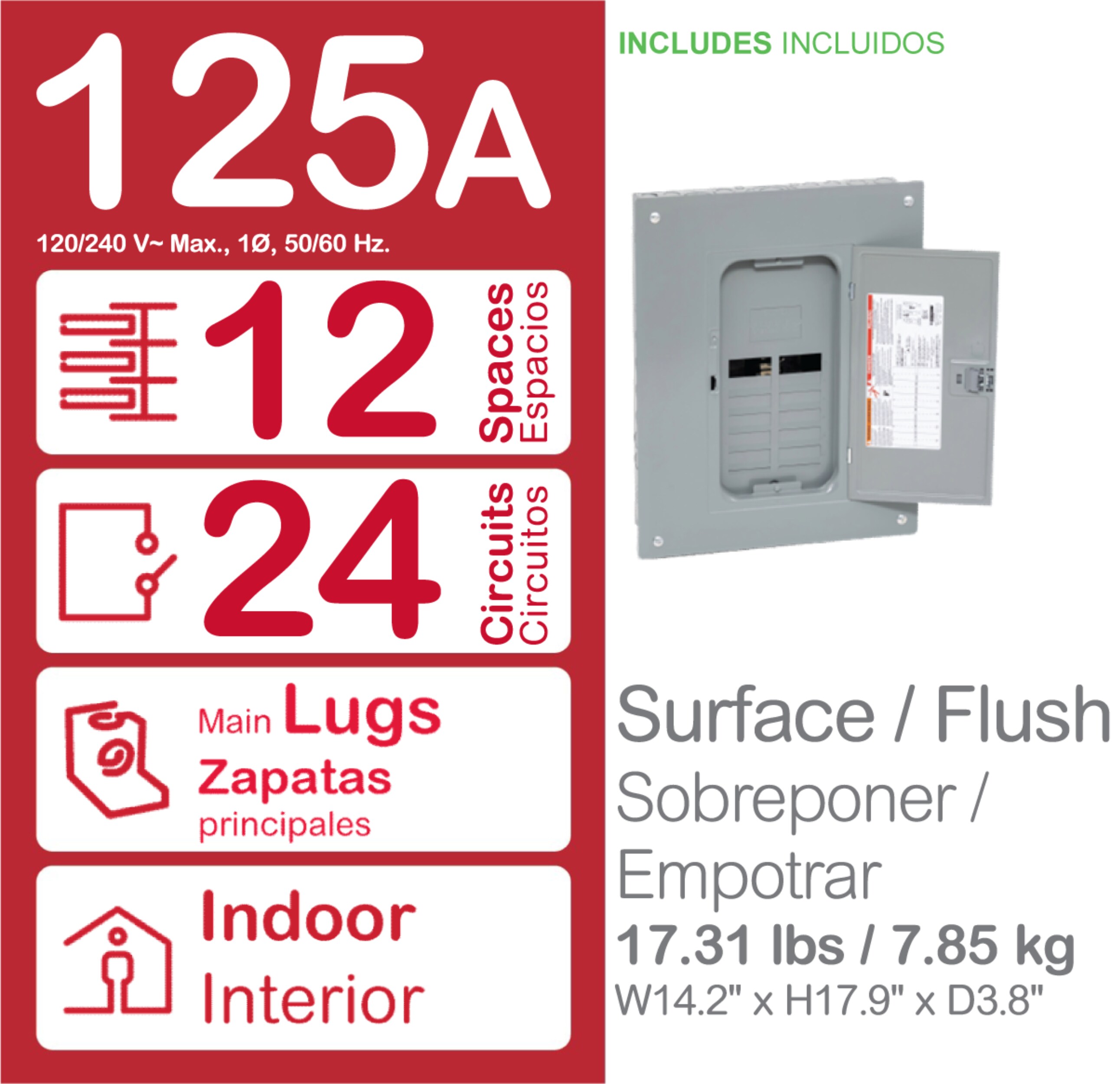

Square D Homeline 125 -Amp 12 -Spaces 24 -Circuit Indoor Convertible Main Lug Plug-On Neutral Load Center
Item #643664 |
Model #HOM1224L125PC
Includes a fully distributed neutral bar, allowing for the installation of Homeline Plug-on Neutral combination arc fault breakers on any space
Each pole space accepts full-size, tandem or quad breakers
Ground and neutral bars accept up to (3) #10-14 equipment grounds
Includes a combination flush/surface cover and is convertible to main breaker load center with a QOM1 main breaker (sold separately)
Accommodates plug-on secondary surge arrestor (sold separately)
Overhead/underground feed simply by rotating the device before installing
Rated 120/240 VAC and 10,000 AIR short circuit current rating
General | |||
|---|---|---|---|
Manufacturer Color/Finish | Gray | Orientation | Over/Under |
Series Name | Homeline | Value Pack Contents | Includes a combination flush/surface cover and is convertible to main breaker load center with a QOM1 main breaker (sold separately) |
Type | Convertible main lug | Number of Spaces | 12 |
Use Location | Indoor | Phase Type | Single phase (120/240) |
Mounting Type | Combination | Buss Bar Construction | Aluminum |
Usage | Sub-panel | Circuits | 24 |
Paintable | No | ||

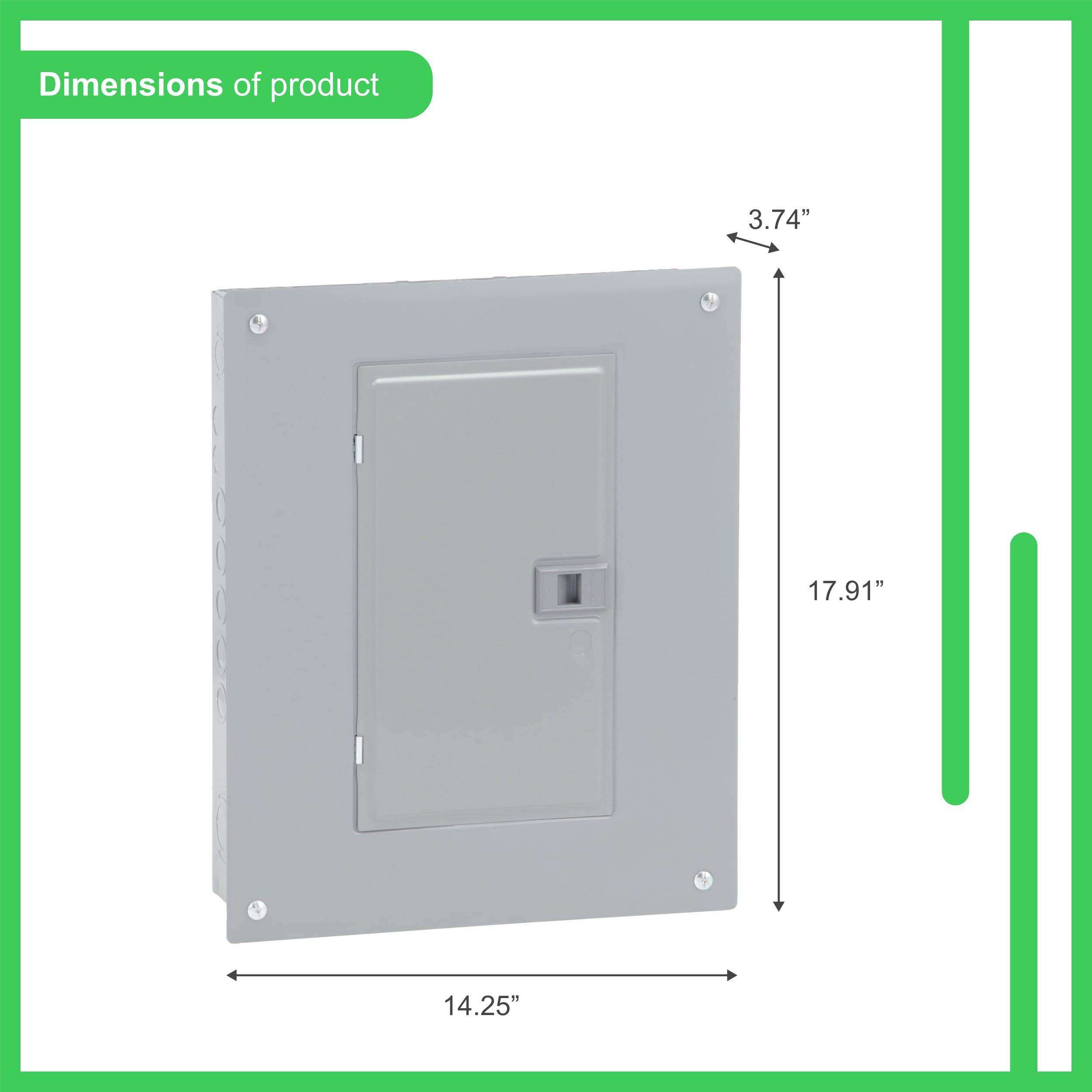

Dimensions | |||
|---|---|---|---|
Depth (Inches) | 3.75 | Width (Inches) | 14.25 |
Height (Inches) | 17.92 | Amperage | 125 |
Features | |||
|---|---|---|---|
Cover Included | Yes | Plug-On Neutral | Yes |
Feed-Through Lugs | No | Value Pack | No |
Ground Bar Installed | No | ||
Compatibility | |||
|---|---|---|---|
Brand/Model Compatibility | Square D Homeline Brand Only | ||
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | Safety Listing | UL safety listing | |
Warranty | |||
|---|---|---|---|
Warranty | 18-month limited | ||
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 39121100 | ||
Check out the Best Selling Breaker Boxes on Lowes.com
Ratings may include incentivized customer reviews.
What Customers Are Saying
Customers overwhelmingly praise this subpanel for exceptional value, reliable performance, and solid construction. Reviewers consistently describe the metal enclosure as robust and well-built, with breakers fitting snugly and remaining compatible with existing HOM-style breakers. Many highlight the outstanding price-to-quality ratio and ease of installation with clear instructions, noting it delivers high-end craftsmanship without premium pricing. The 20-space mainlug design simplifies subpanel upgrades. A few customers note the panel lacks a ground bar and screws, requiring separate purchases, with rare reports of threading or fit issues. Overall, most consider it an excellent choice for electrical system upgrades.
Customer review summary generated by AI, including incentivized reviews.Incredible pricing and piece of equipment to build
Incredible pricing and piece of equipment to build a Subpanel.
Verified Purchaser
This is a great product! It comes as advertised.
It is a quality prouct at a reasonale price
From Homeline 125 -Amp 20 -Spaces 40 -Circuit Indoor Convertible Main Lug Plug-On Neutral Load Center Verified Purchaser
Useless if the cover can’t be screwed in
After installation I cannot put the cover on so this panel is 100% junk and is a fire hazard. The screws won’t screw in. The panel seems to have a different thread pattern. The screws work on the main panel. They give you double the screws but none work. I’d hate to rip this off the wall and start over as I’ve spent so many hours and money on installation.
From Homeline 125 -Amp 8 -Spaces 16 -Circuit Indoor Convertible Main Lug Plug-On Neutral Load Center Verified Purchaser
Ordered with confidence.
Ordering on line made easy for another good product from Lowe's many selections. Delivered quickly clean no scratches dents or marks of any kind do to the careful packing by Lowe's.
From Homeline 125 -Amp 8 -Spaces 16 -Circuit Indoor Convertible Main Lug Plug-On Neutral Load Center Verified Purchaser
Adding a subpanel
Breaker Commonality with my other three panels
From Homeline 125 -Amp 8 -Spaces 16 -Circuit Indoor Convertible Main Lug Plug-On Neutral Load Center Verified Purchaser
Perfect for upgrading old box
Fit my needs for upgrading and increasing number of slots compared to my existing panel. Able to re-use existing main breaker without having to buy one.
From Homeline 225 -Amp 40 -Spaces 80 -Circuit Indoor Convertible Main Lug Plug-On Neutral Load Center Verified Purchaser
