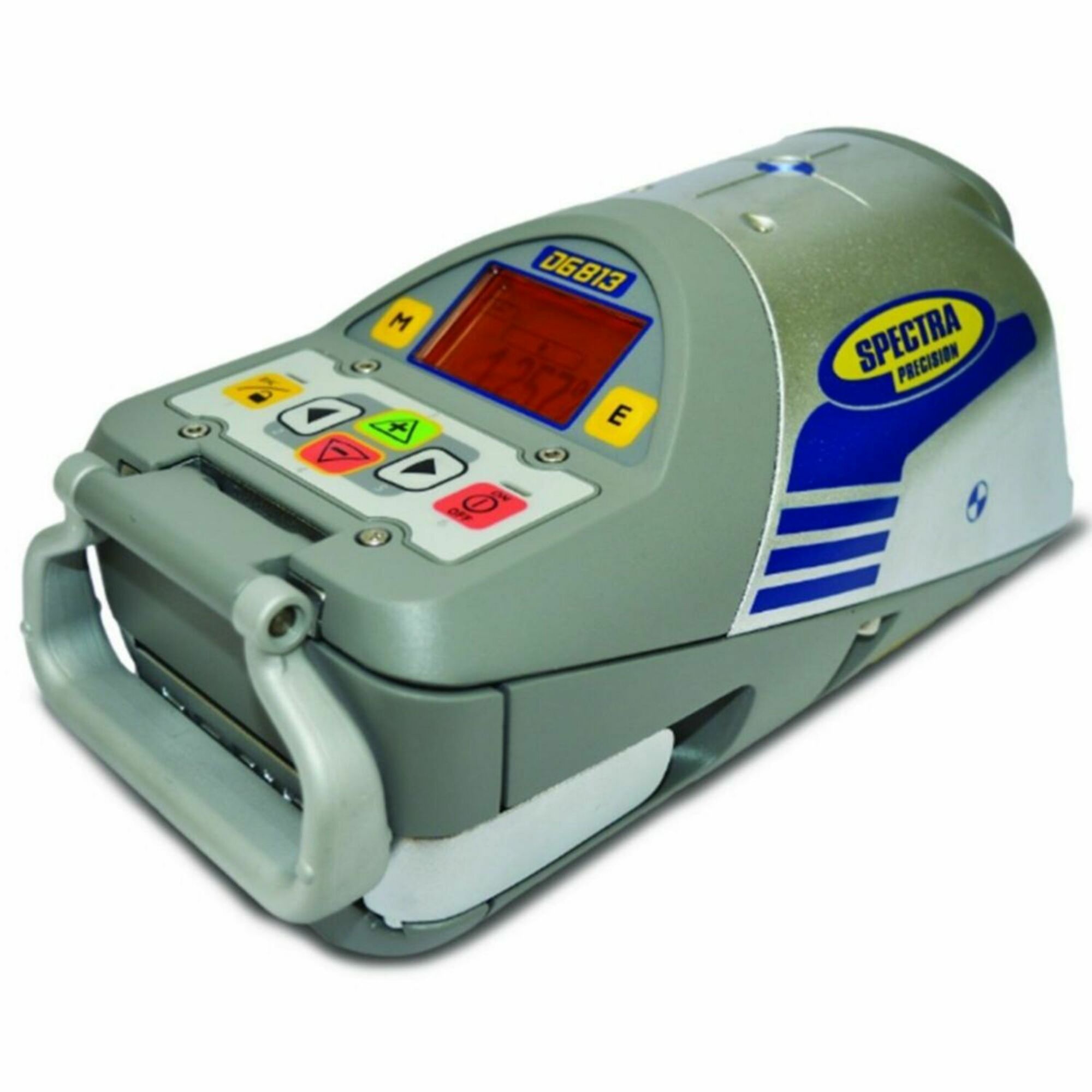

With fully compensated cross axis feature, this laser tool provides quick set up and reliability that the laser will be level without having to adjust the device at the bottom of the invert. This construction laser offers an accuracy of 10 arc second, delivering an unprecedented performance when laying pipes. It also offers line centering, line set, and line alert features that simplify setting and resetting of the grade on the display. This Spectra Precision pipe laser comes with the SF803 Spot Finder which increases its productivity, automatically aligns the laser to the center of the spot finder, and also calculates the grade. It also has functions such as manual grade entry, line scan, and spot-align search up to 45 degrees. With the RC803 remote control, the DG813 enhances its range up to 500 feet within pipes providing full operation in a single set-up between manholes. This pipe laser’s one upgrade from previous models is the ability to place standard D batteries in the laser so users can still use it while the NiMH batteries charge. It is designed with a large LCD display and a color-coded keypad. The IP68 protection makes this device dustproof and waterproof of up to 10 feet. Using the included battery pack, this Spectra pipe laser can last up to 40 hours.
Contents include Spectra DG813 Pipe Laser, RC803 Remote Control, ST802 Signal Transporter, SF803 Spot Finder, 956 Pipe Target with 2 Plates, P24 Pole Adapter for SF803, Q104667 NIMH Rechargeable Battery Pack, Q104781 Charger, Hard Carrying Case, Multi-Language CD, Quick User Guide and Safety Instructions, 1230 Large Pipe Invert, and 1239 Vertical Pole
Range up to 430 ft above and with radio IR remote control up to 500 ft inside pipes
10 arc second accuracy and a self-leveling range of negative 12 percent to positive 40 percent over the entire grade range
Automatic functions for beam alignment, beam detection, and grade calculation with ultra-fast beam movement
Big and intuitive graphic display at the laser and remote control
Advanced functions squeezing working time such as Line Set/Check for first day setup, Line Scan for second day setup, and Line Alert
Self-leveling 1.5mm/30 m with 1/16 inch at 100 foot accuracy, 10 arc seconds
Pipe laser consists of a red diode laser 600 - 680 nm with a laser class 3A/3R, Class 2
Self-leveling range Longitudinal-Over the entire grade range with automatic cross axis compensation, no rough leveling required
