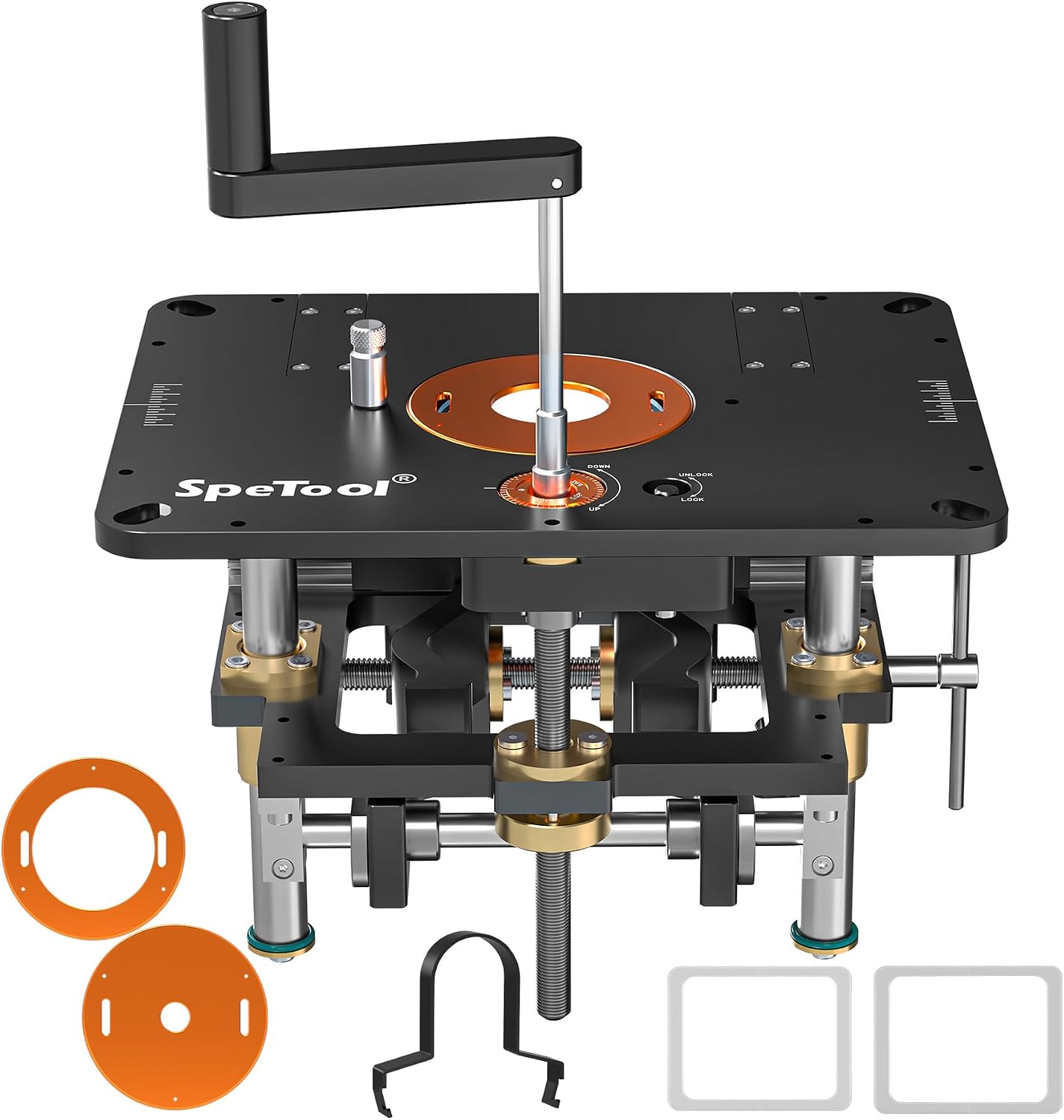

This heavy duty aluminum router lift system is designed for woodworking router tables The lift fits most routers with body diameters from 2 9/16 to 4 1/4 inches supporting 1.25HP 2.25HP and 3.25HP motors The precision height adjustment uses a 20 TPI screw and zeroing index ring for 0.001 inch accuracy with smooth linear bearings providing a 4 1/4 inch adjustment range The 9 1/4 x 11 3/4 inch insert plate fits most commercial tables and includes a dust collection interface The above table design allows easy bit changes without removing the router from the lift
Fits most routers with body diameters from 2 9/16 to 4 1/4 inches supporting 1.25HP 2.25HP and 3.25HP motors
Heavy duty precision aluminum construction with 3/8 inch solid insert plate resists scratches for smooth operation
20 TPI screw and zeroing index ring provide 0.001 inch height adjustment accuracy with smooth linear bearings
Built in dust collection interface on insert plate helps reduce wood chips during operation

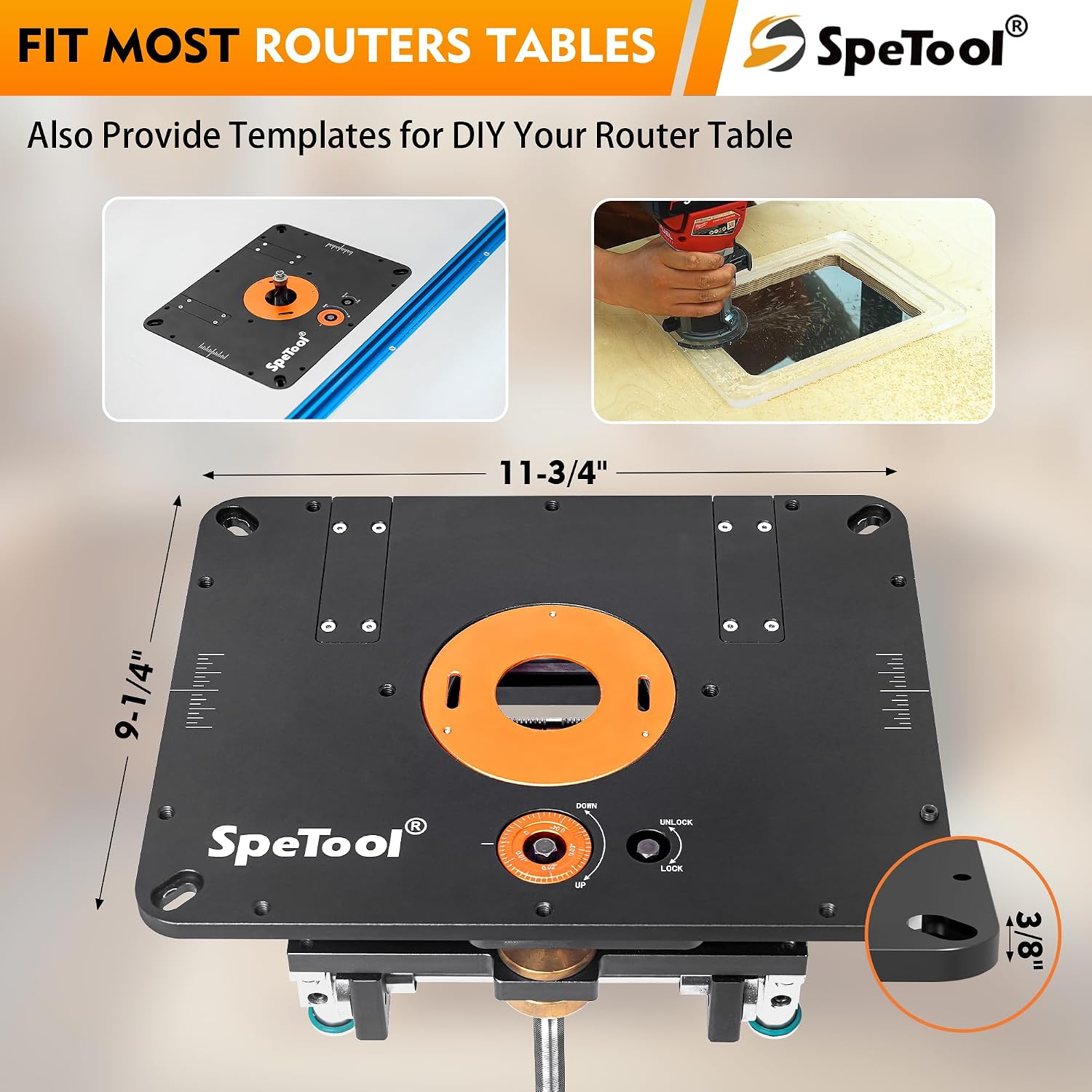

9 1/4 x 11 3/4 inch insert plate fits most commercial tables with DIY setup templates included
Above table design enables easy bit changes without removing the router from the lift
