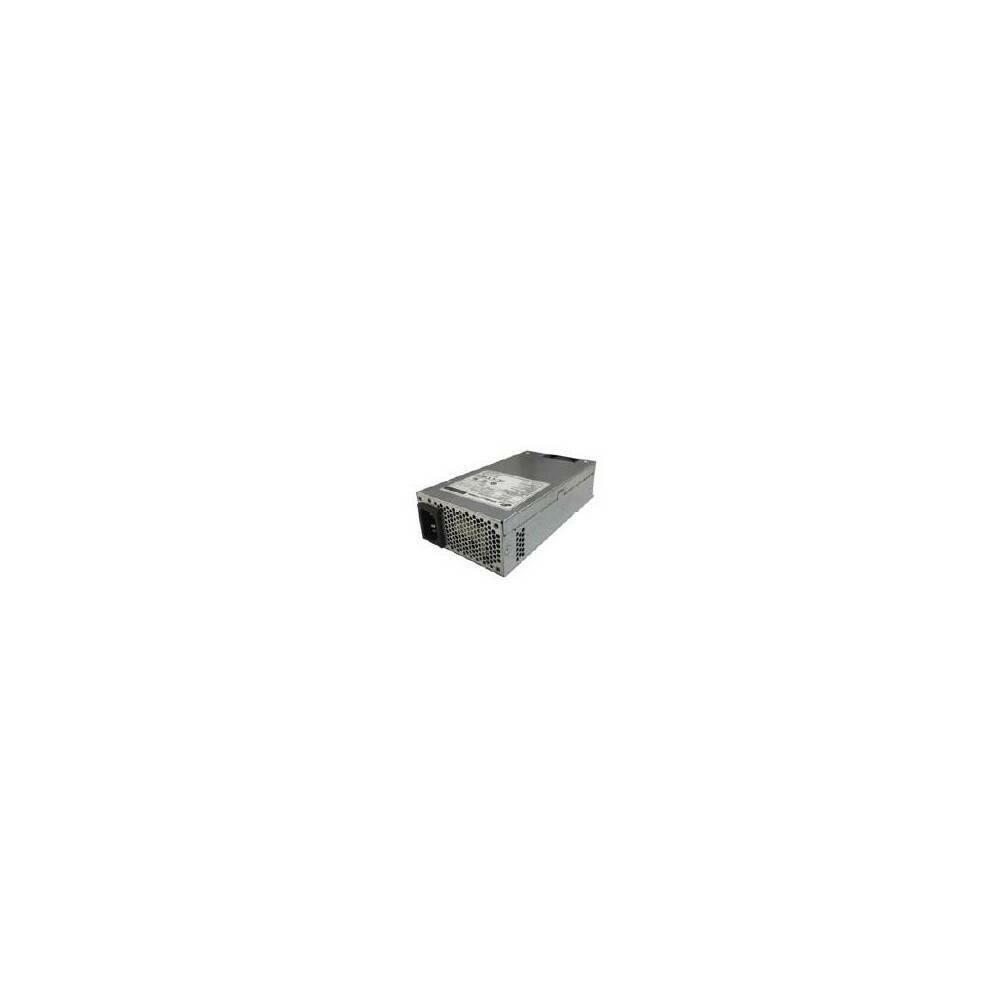

Browse our collection of high quality, reliable and authentic Computer and Peripherals in desired configuration and compatibility. Whether you want to buy a new computer or add functionality to your computer, we have it all for you. Features Complied with ATX FLEX standard Active Power Factor Correction ( PFC) meet EN61000-3-2 High efficiency and reliability Compatible with European Union Directive 2011/65/EU and ( EU)2015/863 ( Restriction on Hazardous Substances) Remote ON/OFF function Internal 12V DC fan included AC input I/O switch is option Low noise and ripple Output over voltage, short circuit, and over current protection 100 Hi-pot, ATE, and burn-in tested +3.3V and +5V total output not exceed 90W Re-settable power shut down Complies with FCC part 15 subpart J class B 115Vac operation, and CISPR 22 class B at 230Vac operation Approved by CB 62368 and 60950-1 2nd, EMC, CUL/UL TUV, FCC, CE Specifications Input Range: 90 - 264Vac ( RMS), Full Range Input Input Frequency: 47 - 63Hz Input Current: Max 6A( RMS) 115Vac, 3A( RMS) 230Vac Input Inrush Current: No damage Output Total Watts: 400W Output Voltage: +3.3V 14A, +5V 16A, +12V 33A, -12V 0.3A, +5VSB 3A Dielectric Withstand: Primary frame ground 1800V AC for one second Efficiency: Typical>- 90 Rise Time: Less than 20ms Hold-up Time:>-12ms minimum at input 230V/50Hz Power Good Signal: Power on delay time 100 - 500ms, off delay 1ms minimum ( TTL and CMOS compatible) Leakage Current: Less than 3.5mA at 264Vac, 63Hz MTBF: A minimum predicted MTBF ( MIL-HDBK-217) of 100,000 hours of continuous operation at +25 degrees C Dimensions ( WxLxH): 3.2 x 6.0 x 1.6 inch/81.5 x 150.0 x 40.5 mm
