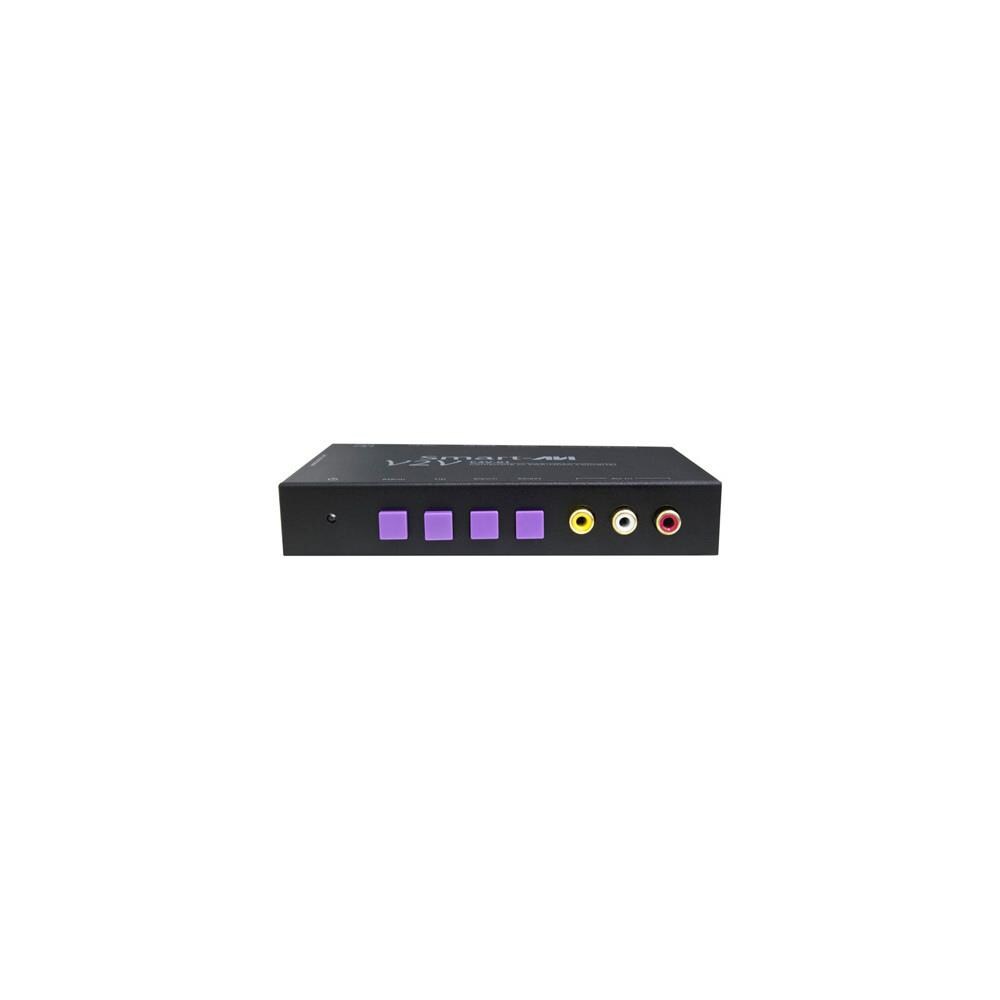

The V2V-C2V-01 Converts Composite Video to VGA with HDMI Output and Stereo Audio. The unit also has composite outputs for other composite devices. Features. Converts Composite Video to VGA with HDMI Output. Specially designed for computer VGA/HDMI monitors and LCD color monitors. Composite Video Input via RCA. Video, VGA ,HDMI Output. Supports NTSC, PAL video system. Input video system 50 to 60Hz frame rate detection. Supports HDMI resolutions: 720P, 1080I, 1080P. Built in stereo audio input and output. Any adjustment will be auto memory. Frequency output: 60Hz, 75Hz, 85Hz. On screen display function: Resolution, Brightness, Contrast, Saturation, Hue. Input Format NTSC/PAL/SECAM. Output Formats NTSC/PAL/SECAM. Input Interface RCA Female. Output Interface RCA Female. VGA VIDEO. Format RGBHV, RGsB, YUV, Y/C, CVBS. Resolution Up to 1920 x 1200 VGA, SVGA, XGA, SXGA, UXGA, WUXGA. Output Interface HD-15 Female. HDMI VIDEO. Format HDMI 1.3b Deep Color, xvYcc color space supported. DVI Compliance Single-link DVI-D 1.1. HDCP Compliance 1.0/1.1. Video Bandwidth Single-link 340MHz 10.2Gbps. Resolution 480i,480p,720i,720p,1080i,1080p. Output Interface HDMI7.1ch audio and video. Connector Type A19-pin female. Maximum Distance 25 ft. Signal Type Stereo Unbalanced. Ouput Interface 3.5 mm Jack Socket. Power External 100-240 VAC/5VDC2A 10W. Dimensions 5.75 in W x 1.25 in H x 3.25 in D. Operating Temp. 0-55 degrees C. Storage Temp. -20-85 degrees C. Humidity Up to 95 Percent Specifications. Weight: 1 lbs
The V2V-C2V-01 Converts Composite Video to VGA with HDMI Output and Stereo Audio. The unit also has composite outputs for other composite devices. Features
Converts Composite Video to VGA with HDMI Output
