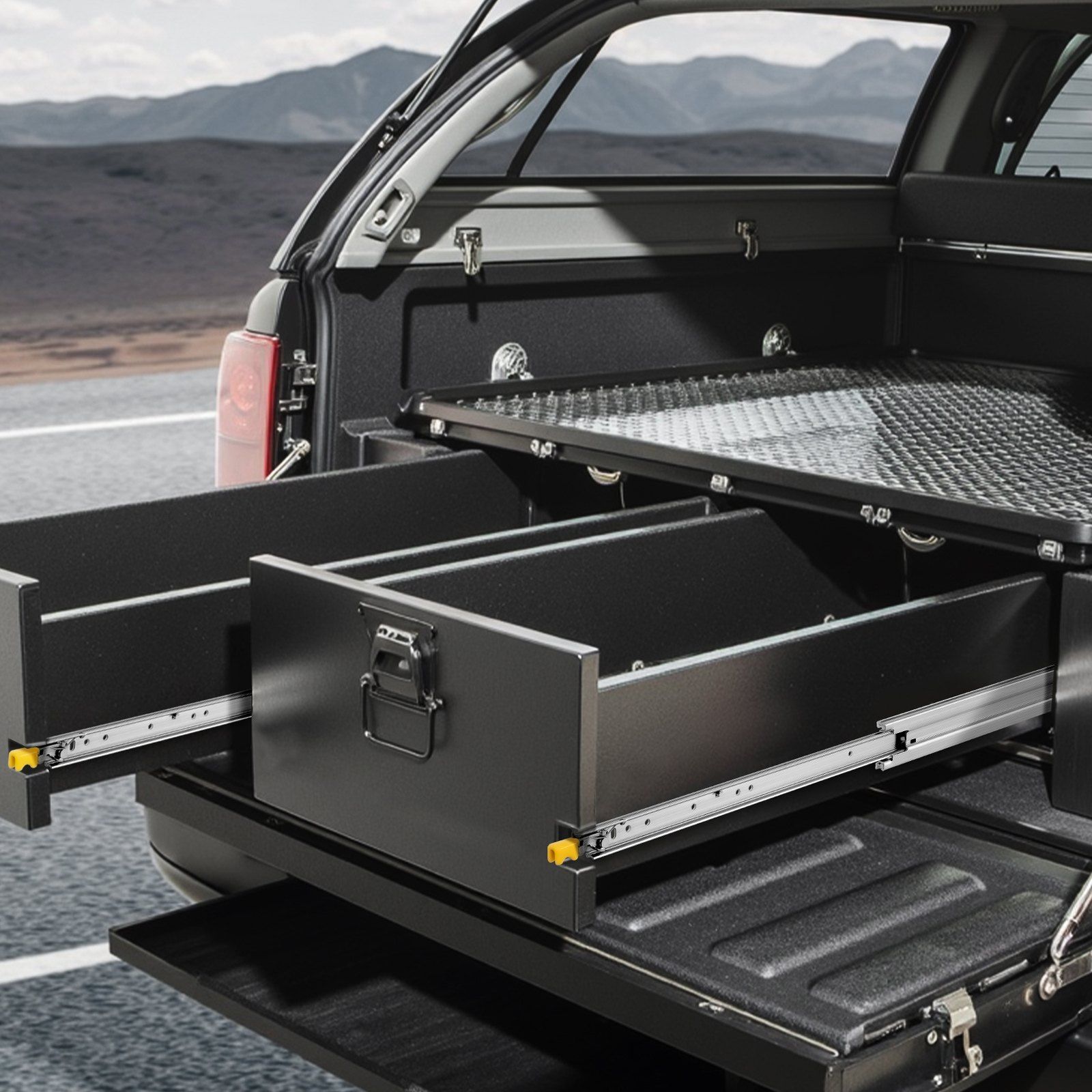

Upgrade large cabinet, storage, and equipment drawers with this pair of side-mount full-extension drawer slides. Made from 0.77-inch thick steel, these drawer rails support up to 500 lb of load capacity and feature a galvanized finish. The slides are suitable for large drawers used in cabinets, shelving, RV storage, trucks, vending equipment, and other applications requiring extended drawer travel. The three-fold full-extension design allows the drawer to extend outward for easier access to stored items throughout the drawer. A double-lock mechanism secures the slide in position with a simple press, helping keep drawers in place during movement. Double-row ball bearings support smooth opening and closing, while nylon cushioning helps reduce operating noise and unwanted drawer bounce. Before installation, select a slide length appropriate for the cabinet and drawer depth. The listed fully extended load capacity varies by slide size, so select the appropriate size for your specific application. Note: Actual product color may slightly vary from the images shown due to lighting conditions during photography and individual monitor or device display settings.
Color: Silver || Material: Steel || Size: 61 Inch/ 31 Inch/ 53 Inch/ 37 Inch/ 33 Inch/ 24 Inch/ 40 Inch/ 36 Inch/ 30 Inch/ 60 Inch || Quantity: 1 Pair || Load Capacity: 500 lbs
61”: 61” x 3” x 0.77” | Suitable Drawer: 60.5” | Extension Len: 60”| Load Capacity (Fully Extended): 178 lbs || 31”: 31” x 3” x 0.77” | Suitable Drawer: 30.5” | Extension Len: 30”| Load Capacity (Fully Extended): 343 lbs
53”: 53” x 3” x 0.77” | Suitable Drawer: 52.5” | Extension Len: 52”| Load Capacity (Fully Extended): 222 lbs || 37”: 37” x 3” x 0.77” | Suitable Drawer: 36.5” | Extension Len: 36”| Load Capacity (Fully Extended): 310 lbs
33”: 33” x 3” x 0.77” | Suitable Drawer: 32.5” | Extension Len: 32”| Load Capacity (Fully Extended): 332 lbs || 24”: 24” x 3” x 0.77” | Suitable Drawer: 24.5” | Extension Len: 24”| Load Capacity (Fully Extended): 376 lbs

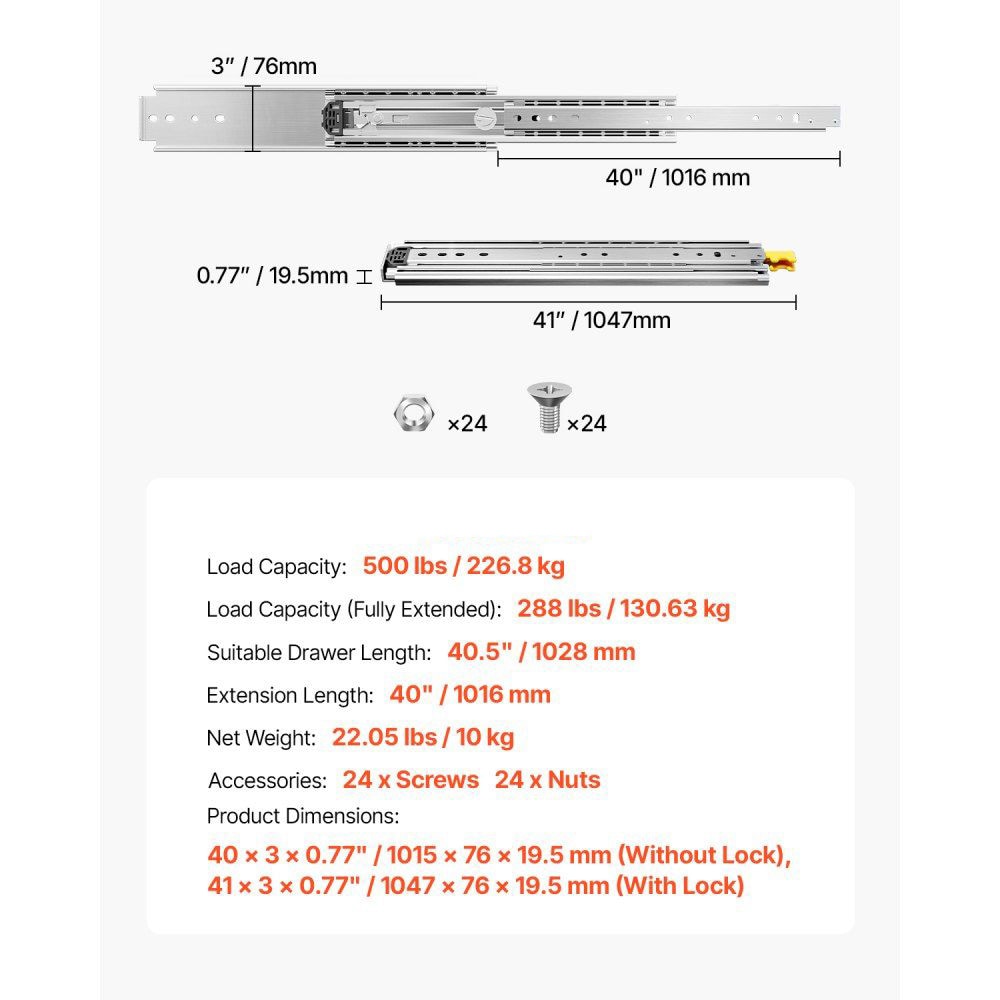

40”: 40” x 3” x 0.77” | Suitable Drawer: 40.5” | Extension Len: 40”| Load Capacity (Fully Extended): 288 lbs || 36”: 36” x 3” x 0.77” | Suitable Drawer: 36.5” | Extension Len: 36”| Load Capacity (Fully Extended): 310 lbs
30”: 30” x 3” x 0.77” | Suitable Drawer: 30.5” | Extension Len: 30”| Load Capacity (Fully Extended): 343 lbs || 60”: 60” x 3” x 0.77” | Suitable Drawer: 60.5” | Extension Len: 60”| Load Capacity (Fully Extended): 178 lbs
Three-fold design provides full drawer extension
Double-lock mechanism secures slides during movement
Double-row ball bearings support smooth operation
