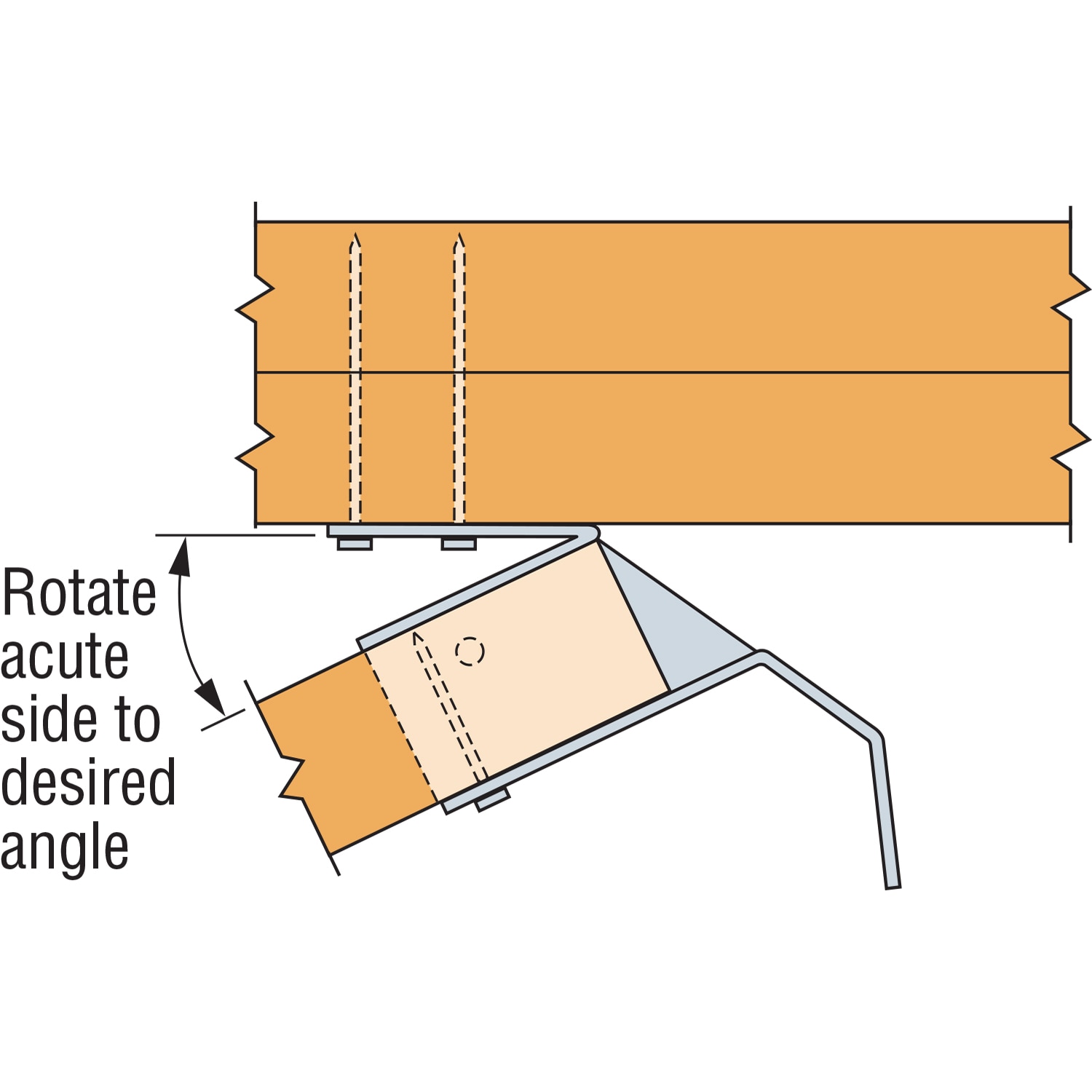

The THASR/L is designed to support trusses and beams. This versatile U-shaped hanger combines the height adjustability of the THA with field adjustability. These key features provide maximum flexibility for the installer. Shipped at 22-1/2-degrees right or left, the THASR/L hangers can be field-skewed from 22-1/2-degrees to 75-degrees.
Eliminates the need for special orders

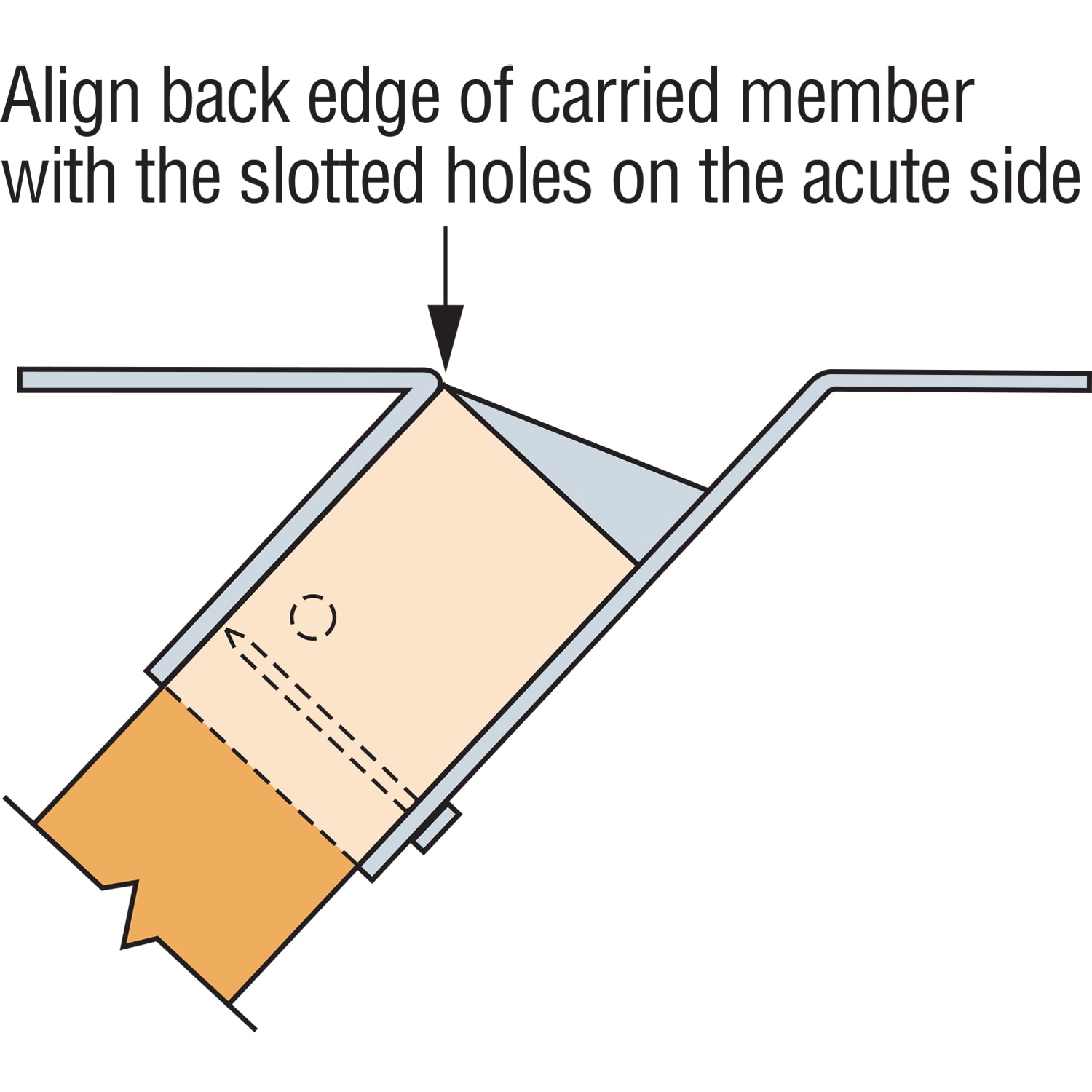

One acute side bend line to ease design and installation
Joist fasteners are only required from one side for skews greater than 22-1/2-degrees
Rated for installation with either nails or Simpson Strong-Tie Strong-Drive SD Connector screws
Minimum carried member: 4x truss
Width: 3-5/8-in
Height: 22-in
Made from 16-gauge steel
Install with (13-16) 0.148-in x 3-in nails OR (13-16) #9 x 2-1/2-in Strong-Drive SD Connector screws
