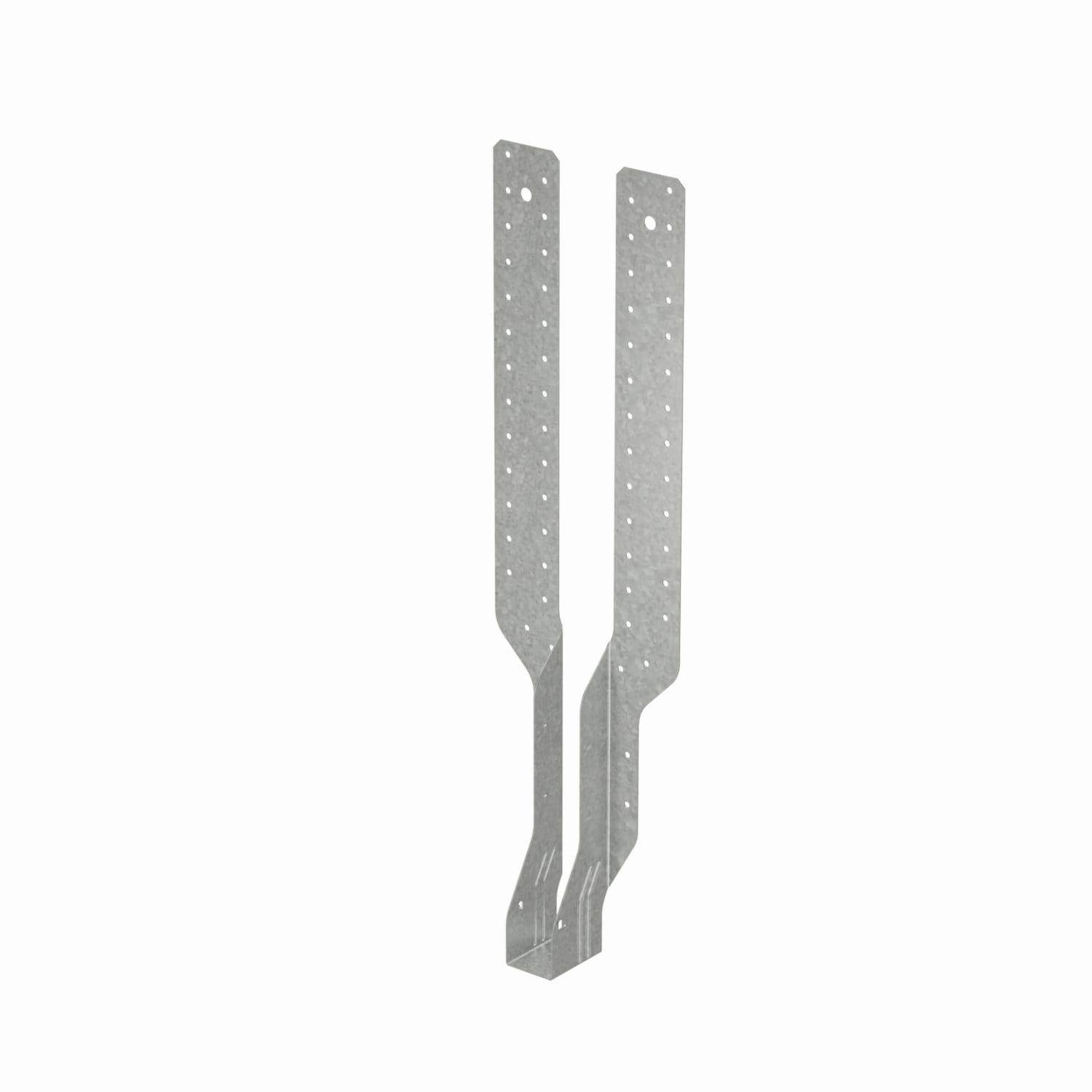

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. Designed for I-joists, the THAI has extra long straps and can be field-formed to give height adjustability and top-flange hanger convenience.
Positive-angle nailing (PAN) helps eliminate splitting of the I-joist's bottom flange
Joist width: 1-1/2-in
Joist depth: 9-1/4-in to 14-in
Seat width: 1-9/16-in
Made from 18-gauge steel
Galvanized (G90) for extra corrosion resistance
Install with (6-20) 0.148-in x 3-in nails in the header and (2) 0.148-in x 1-1/2-in nails in the joist
