Simpson Strong-Tie CB 6-in x 8-in G90 galvanized Wood to concrete (cast in place) Column base
Item #3699647 |
Model #CB68
Increased uplift resistance for wind or seismic loading
Bolt hole locations meet code-required spacing for optimal capacity
Nominal column size: 6x8
Made from 7-gauge steel
Galvanized (G90) for extra corrosion resistance
Install with (2) 5/8-in diameter machine bolts
General | |||
|---|---|---|---|
Finish | G90 galvanized | Material | Steel |
Manufacturer Color/Finish | Zinc Galvanized, G90 | Package Quantity | 1 |
Series Name | CB | Materials Connected | Wood to concrete (cast in place) |
Type | Column base | Nails Required | None |
Dimensions | |||
|---|---|---|---|
Actual Depth (Inches) | 7.5 | Actual Width (Inches) | 6.438 |
Actual Weight (lbs.) | 8.39 | Common Measurement (T x W) | 6-in x 8-in |
Features | |||
|---|---|---|---|
Adjustable | No | Screws Included | No |
Gauge | 7 | Stainable/Paintable | No |
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | No | ||
Warranty | |||
|---|---|---|---|
Warranty | None | ||
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 30102900 | ||
Check out the Best Selling Base & Cap Hardware on Lowes.com
Ratings may include incentivized customer reviews.
Outstanding Quality
These ties are super heavy duty and I have no doubt they will stand up to the job they are designated for. Considering the price, and the quality of the competetition, these are a real bargain. The delivery was free and super fast. I recieved them only a few days after initially ordering them. I highly recommend them if you need a quality way to support a 6x6 onto concrete.
From CB 6-in x 6-in G90 galvanized Wood to concrete (cast in place) Column base Verified PurchaserIncentivized
Accurate, convenient, and available despite rarity
This was my first experience ordering from Lowe’s online and it could not have been easier.
From CB 6-in x 6-in G90 galvanized Wood to concrete (cast in place) Column base Verified Purchaser
Best post anchoring product
Simpson Strong Tie connectors are well made, and reliable
From CB 4-in x 4-in G90 galvanized Wood to concrete (cast in place) Column base Verified Purchaser
Lowes has the best price for for these CB 4x4
This is the best anchor to use for building a deck or patio cover
From CB 4-in x 4-in G90 galvanized Wood to concrete (cast in place) Column base Verified Purchaser
Cast in place concrete to wood 4x6
Stout strong ties, holding up 16' verticals. Doing it well but really expensive.
From CB 4-in x 6-in G90 galvanized Wood to concrete (cast in place) Column base Verified Purchaser

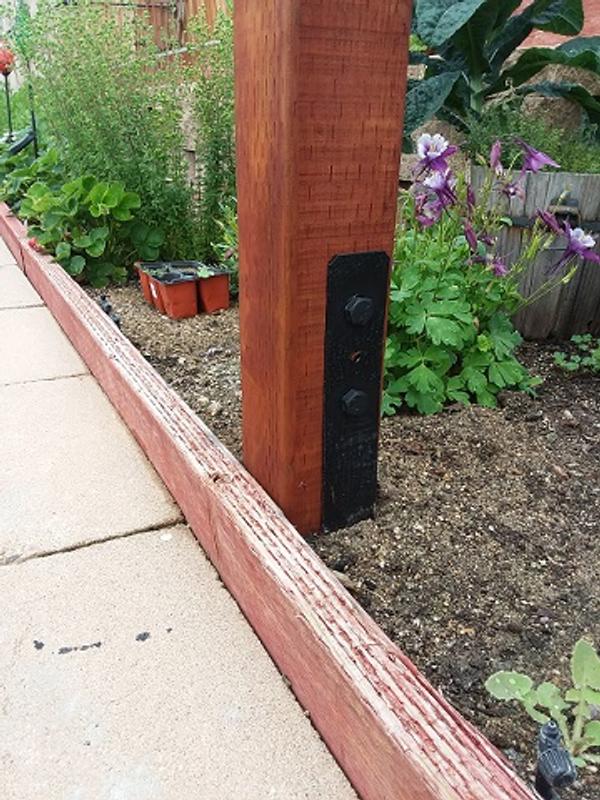

Drill Hole at Bottom
Good price point, painted black with fast dry flat enamel spray, drilled 1/2" hole in bottom to insert a 2' 1/2" rebar driven deep into the ground. The rebar helped set the height while fast dry concrete was placed, watered and mixed. Bolts 1/2" x 5" were also painted black along with washers and nuts.
From CB 4-in x 4-in G90 galvanized Wood to concrete (cast in place) Column base Verified Purchaser
Durable
Sturdy
From CB 4-in x 4-in G90 galvanized Wood to concrete (cast in place) Column base Verified Purchaser
Heavy duty
Heavy duty construction, galvanized, perfect for pergolas gazebos and or pavilions highly recommend. Worth every penny.
From CB 4-in x 6-in G90 galvanized Wood to concrete (cast in place) Column base Verified Purchaser
4x4
Easy setup and leveling
From CB 4-in x 4-in G90 galvanized Wood to concrete (cast in place) Column base Verified Purchaser
Good price along with home delivery
Established name brand, well priced among other hardware stores
From CB 4-in x 4-in G90 galvanized Wood to concrete (cast in place) Column base Verified Purchaser
