The BA series of top-flange hangers are a cost-effective option for engineered wood and solid sawn lumber applications. They are designed to carry medium loads with solid sawn lumber and higher loads with engineered wood products. They feature min./max. nailing options for design versatility.

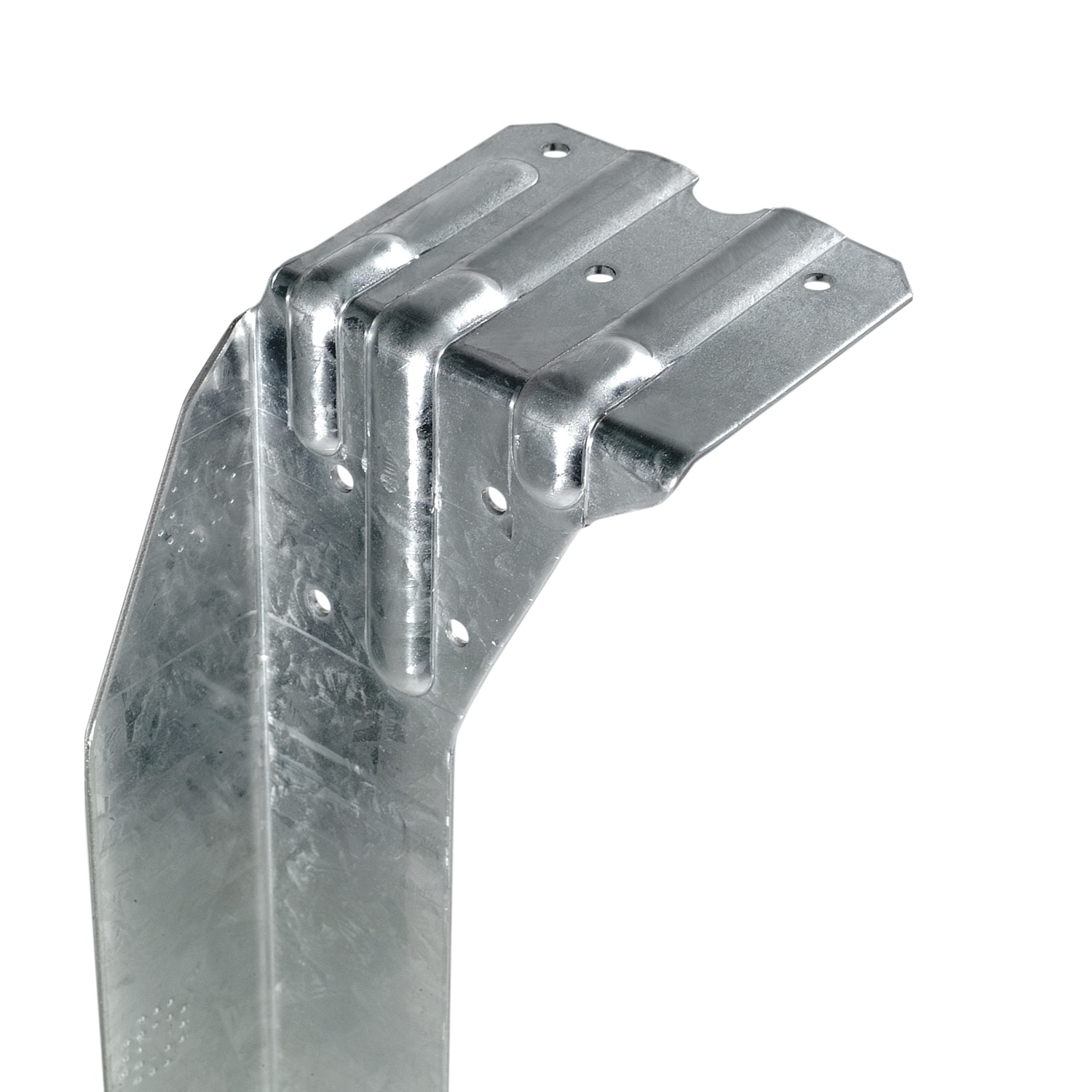

The two-level embossment at the top flange provides increased stiffness
The full-height joist flange captures the top chord of the joist to prevent rotation and eliminate the need for web stiffeners
Minimum nailing targets moderate load demands, whereas maximum nailing allows higher loads
Available for special order to accommodate sloped and/or skewed members
Nominal joist size: 4x10
Made from 14-gauge steel
Galvanized (G90) for extra corrosion resistance
Install with 0.162-in x 3-1/2-in nails in the header and 0.148-in x 1-1/2-in nails in the joist
