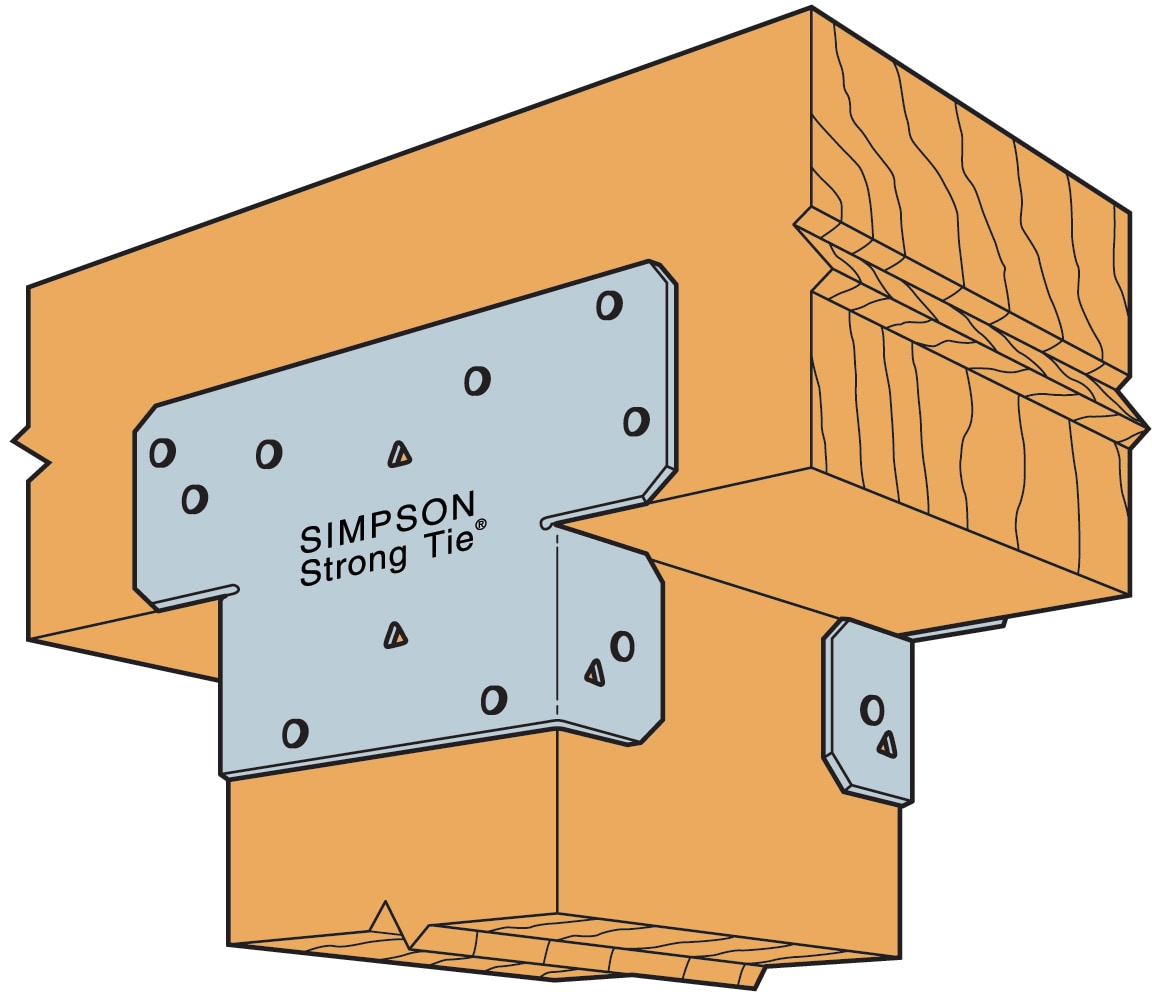

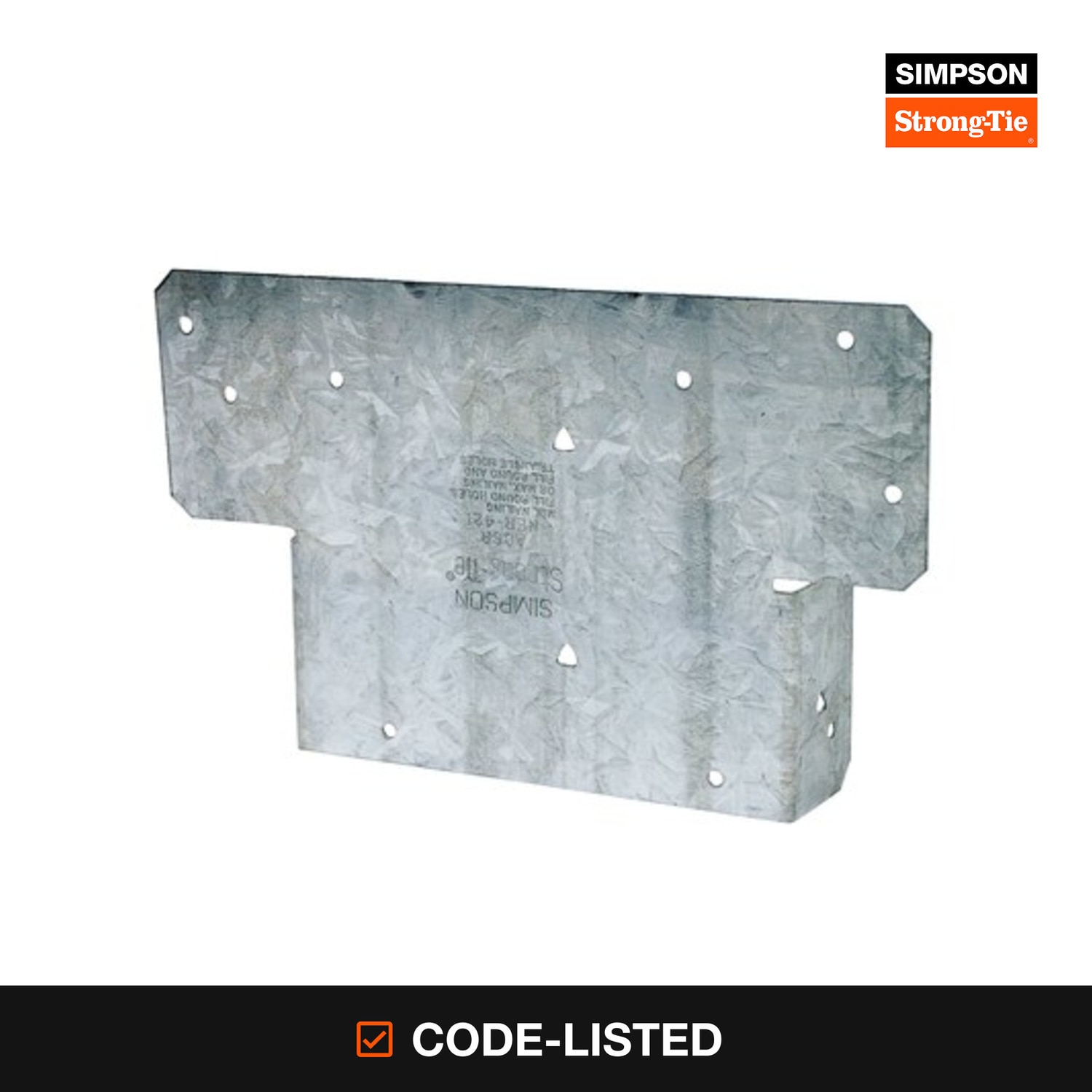

Post caps connect tops of posts to members for a secure connection and are ideal for new or retrofit applications where structural support is needed. Post caps are available in a variety of one-piece caps for new construction and two-piece options for retrofit of existing connections. The AC series is designed to provide a positive connection between a beam and a post; these connectors are always installed in pairs.
Eliminates nailing into end grains
Stronger than angled nailing or screw fastening
Length: 9-in
For use with 6x rough lumber
Made from 18-gauge steel
ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Install with 0.162-in x 3-1/2-in nails
Code compliance verified by ICC-ES Evaluation Report(s): ESR-2604, ESR-3096, ESR-2523 (Index); State of Florida product approval(s): FL10860
