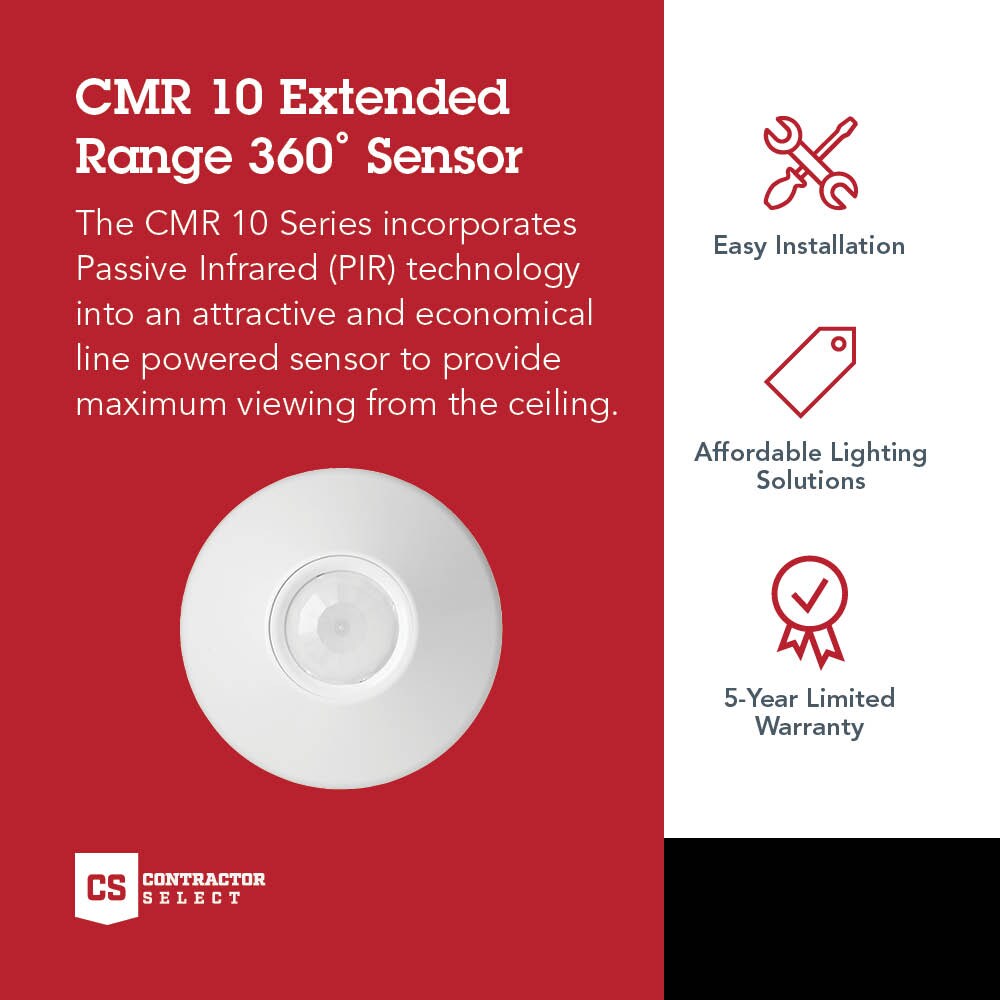

The Sensor Switch CMR 10 is a unique line voltage sensor that easily mounts directly to a ceiling and offers a multitude of configurations to address many applications. With a variety of lens options, CMR sensors utilize 100% passive Infrared detection and is powered directly from line voltage without the need of a power pack. Programming CMR sensor setting can easily be achieved via push button or optional flash programming via the SensorSwitch VLP Mobile App. With either programing method, the user can change time delay.
DETECTION: Passive Infrared (PIR) occupancy detection with 360° coverage
RELAY: Self-contained relay (no power pack needed)
MOBILE APP: Enjoy the flexibility and convenience of programming sensor settings with your smartphone using the Sensor Switch Mobile App through camera flash programming
RATINGS: Energy Management Equipment, UL916 (E167435), RoHS compliant
COVERAGE: 360º conical shaped pattern provides ~24 ft radial coverage when mounted at 9 ft; 7 to 15 ft mounting heights provide 16 to 36 ft radial coverage
TIME DELAY: Time delay feature can be set for 30 seconds to 20 minutes
MOTION DETECTION: Best choice for large motion detection
TIMER MODE: 100-hour lamp burn-in timer mode
WARRANTY: 5-Year Limited Warranty
