Crafted from HT250 cast iron, this rotary table offers exceptional wear resistance and high hardness, ensuring that it performs reliably over time; It’s ideal for precision machining in both industrial and DIY settings.

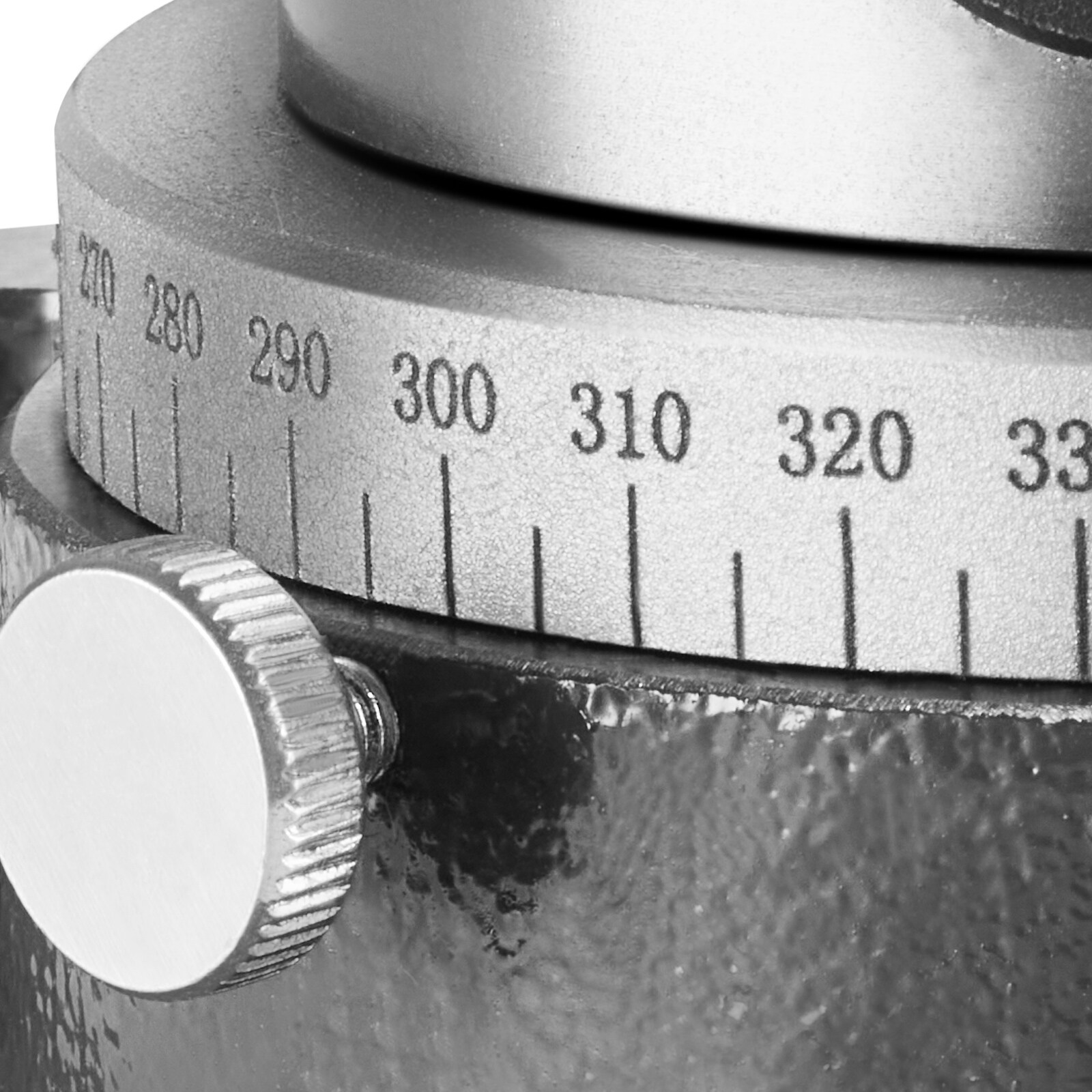

This rotary table boasts a finely etched scale for easy angle adjustments, and a 1:36 worm gear ratio that allows precise control over every rotation; The degree lock ensures your set angle stays fixed during operation.

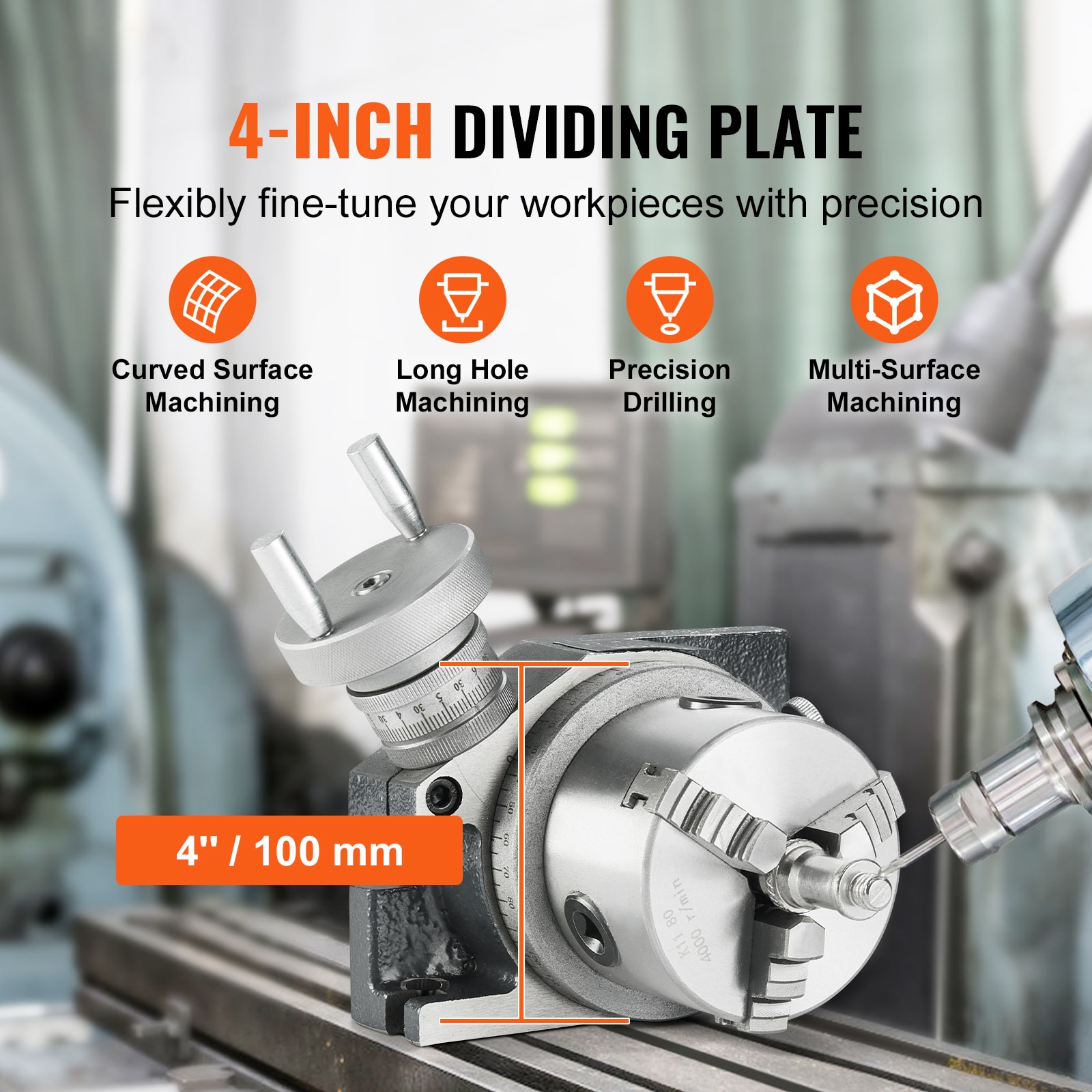

Our 4-inch (100 mm) rotary table is perfectly suited for smaller milling machines and specialized equipment, delivering high-accuracy cuts and making intricate dividing tasks effortless for all your projects.

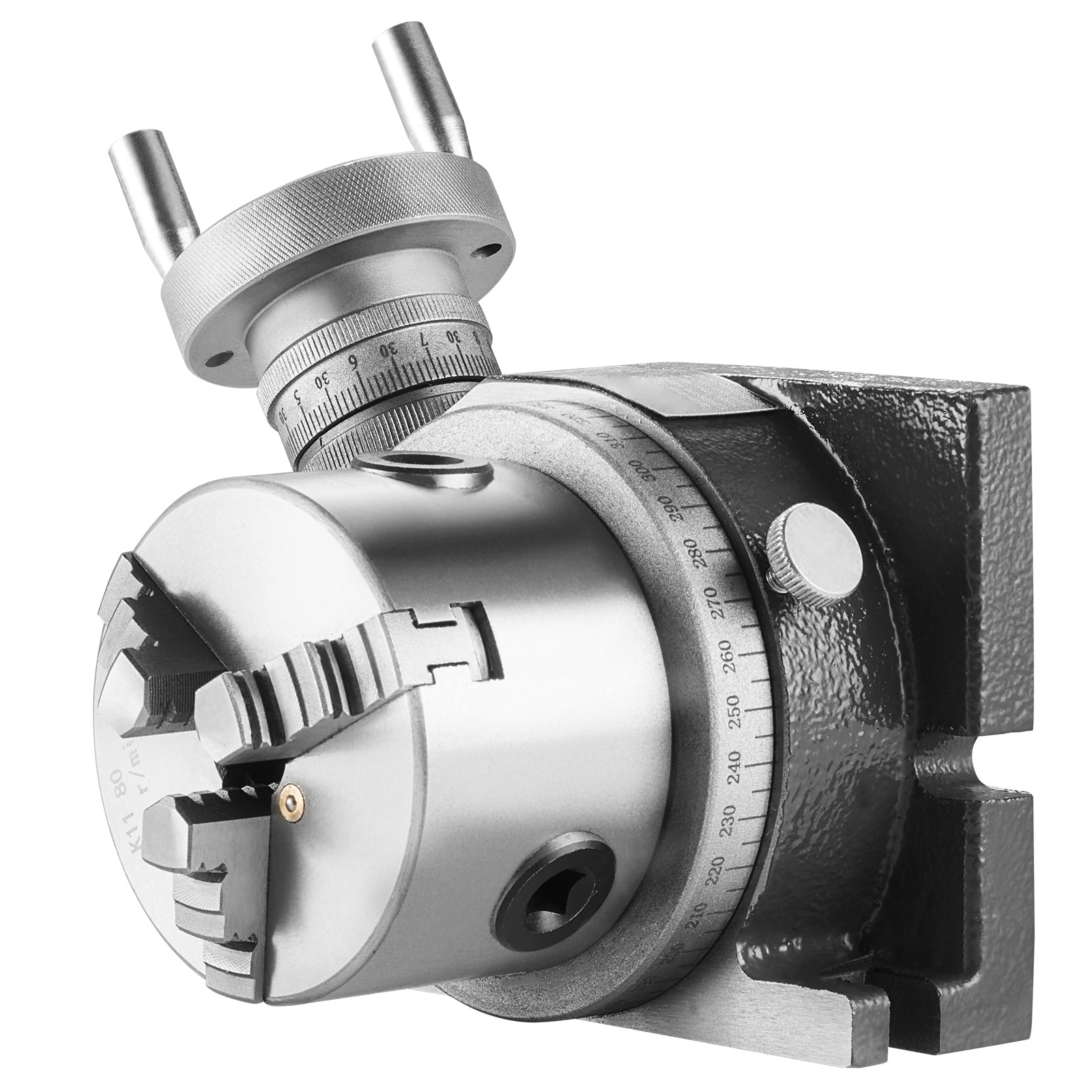

The rotary table includes a 3-jaw chuck that provides a firm and adjustable grip on your workpieces; It features internal and external jaws, which can be tightened or loosened with a T-shaped chuck wrench for optimal security.
Whether you need horizontal or vertical installation, this rotary table offers both; The bottom is equipped with precise positioning slots to ensure stability and eliminate any wobble while rotating, enhancing your workflow.
Designed for comfort and ease of use, the rotary table includes both a long and short handle on the handwheel; This dual-handle setup ensures smooth and precise 360° rotations, fitting naturally into your working style.
Flexible Setup for Different Tasks: Install this rotary table in either horizontal or vertical orientations, depending on your machining needs; The table’s bottom has positioning slots for easy mounting on your milling machine, making it adaptable for both industrial and home-use applications
Table Diameter: 100 mm / 4 in, ±2 mm,
Chuck Diameter: 80 mm / φ 3.1 in,
Top Height for Horizontal Mounting Chuck: 120 mm / 4.7 in, ±3 mm,
Center Height for Vertical Mounting Chuck: 50 mm / 2 in,
Rotary Table Handwheel Scale Value: 6',
Rotary Table Handwheel Scale Number: 100,
With or Without Vernier Scale: No,
Worm Gear Ratio: 1:36,
Net Weight: 5.3 kg / 11.7 lbs ± 3%,
Product Dimensions: 160 × 148 × 120 mm / 6.3 x 5.8 x 4.7 in,
Item Model Number: HV-4-KP.
2 x Handle,
2 x M10*40 T-Bolt,
2 x M10 Nuts,
1 x User Manual,
1 x Chuck Wrench,
3 x External Jaw.
