Our brackets come in various sizes and specifications, designed to fit standard wood posts seamlessly; Made from heavy-duty carbon steel plates, they are expertly welded for superior strength and coated to prevent rust and corrosion; Opt for SVOPES to ensure a dependable installation.

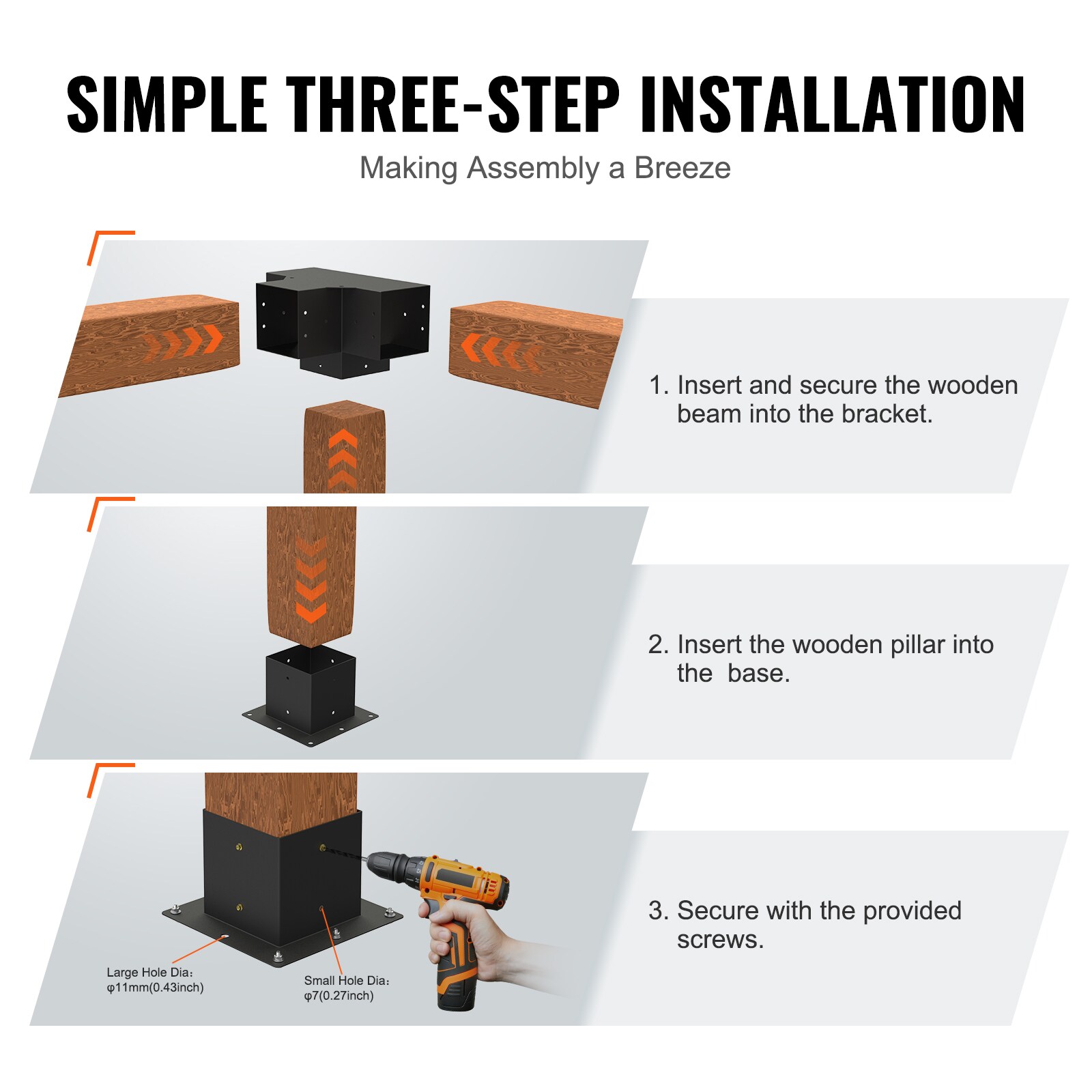

For a smooth installation, wear sturdy work gloves and ensure your workspace is flat and well-lit.
Our four-way pergola brackets are built to safeguard wooden beams from harsh weather conditions, including rain and intense sunlight.
A specialized anti-corrosion powder coating is applied to the carbon steel, preventing the infiltration of water and oxygen; This treatment enhances the brackets' resistance to rust and corrosion, ensuring they remain durable over time.
Constructed from 2mm thick carbon steel plates, these brackets feature a protective coating that resists rust and corrosion; The reinforced 90° boot structure enhances stability and prevents deformation, while the full-coverage design deflects rainwater away from the columns.
Designed with sunshade sail attachment holes, these brackets enable effective sunlight blockage while protecting your items from moisture; The thoughtful hole design allows for easy installation and removal of sails, simplifying maintenance.
We've upgraded the expansion screws to 304 stainless steel for improved longevity; This material is resistant to deformation and ensures secure anchoring in various surfaces, including concrete and wood.
Sturdy Four-Way Bracket Design:Engineered to support wooden beams, these reliable brackets help prevent rot caused by rain and intense sunlight; Designed to fit standard 6" x 6" specifications, they can accommodate actual dimensions of 5.6 x 5.6 inches (142 x 142 mm) for both softwood and hardwood.
Main Material: Q235B
Model: SSB2F2

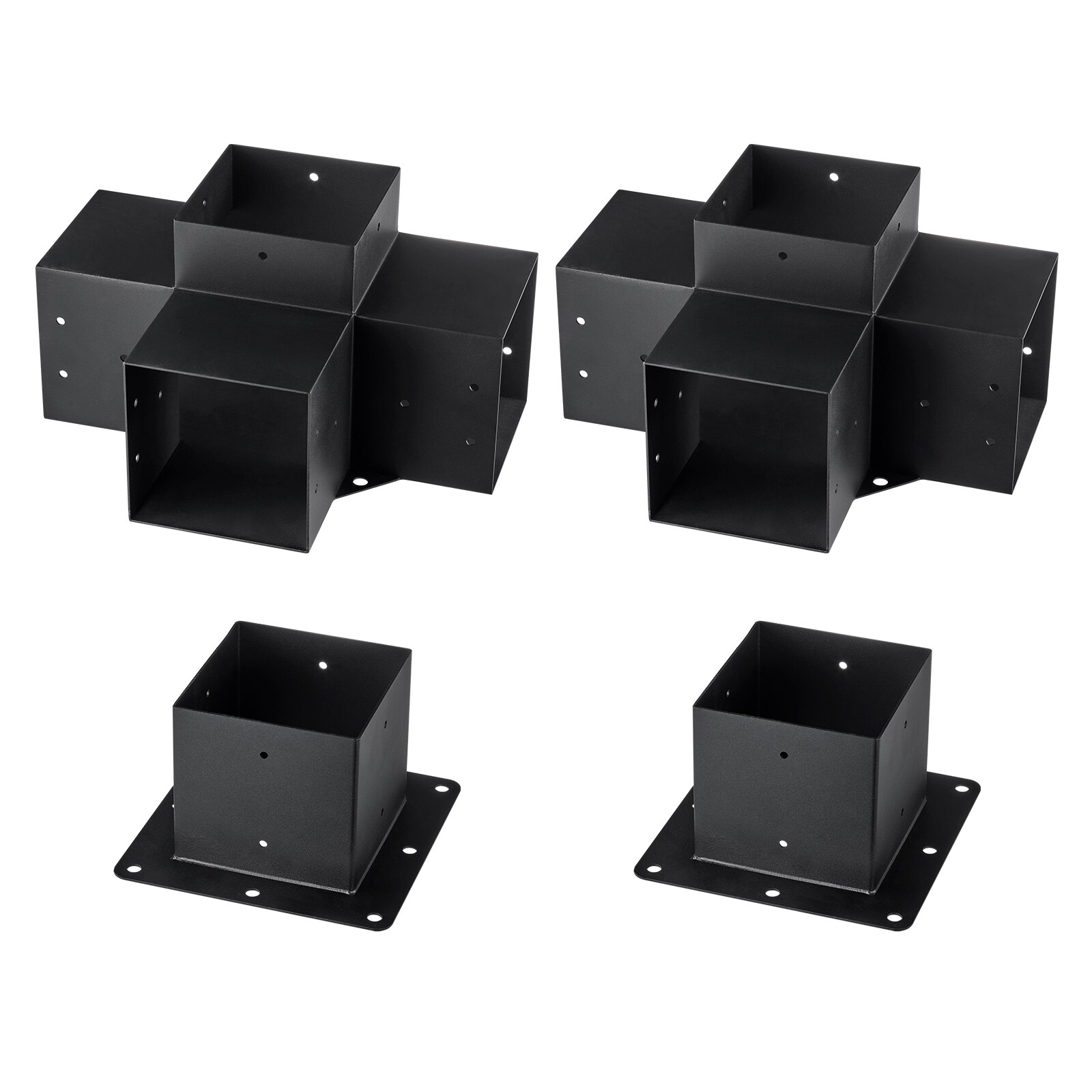

Quantity: 2 x Four-Way Corner Brackets, 2 x Bases
Structure Type: Four-Way
Product Weight: 13.05 kg (± 3%) / 28.77 lbs

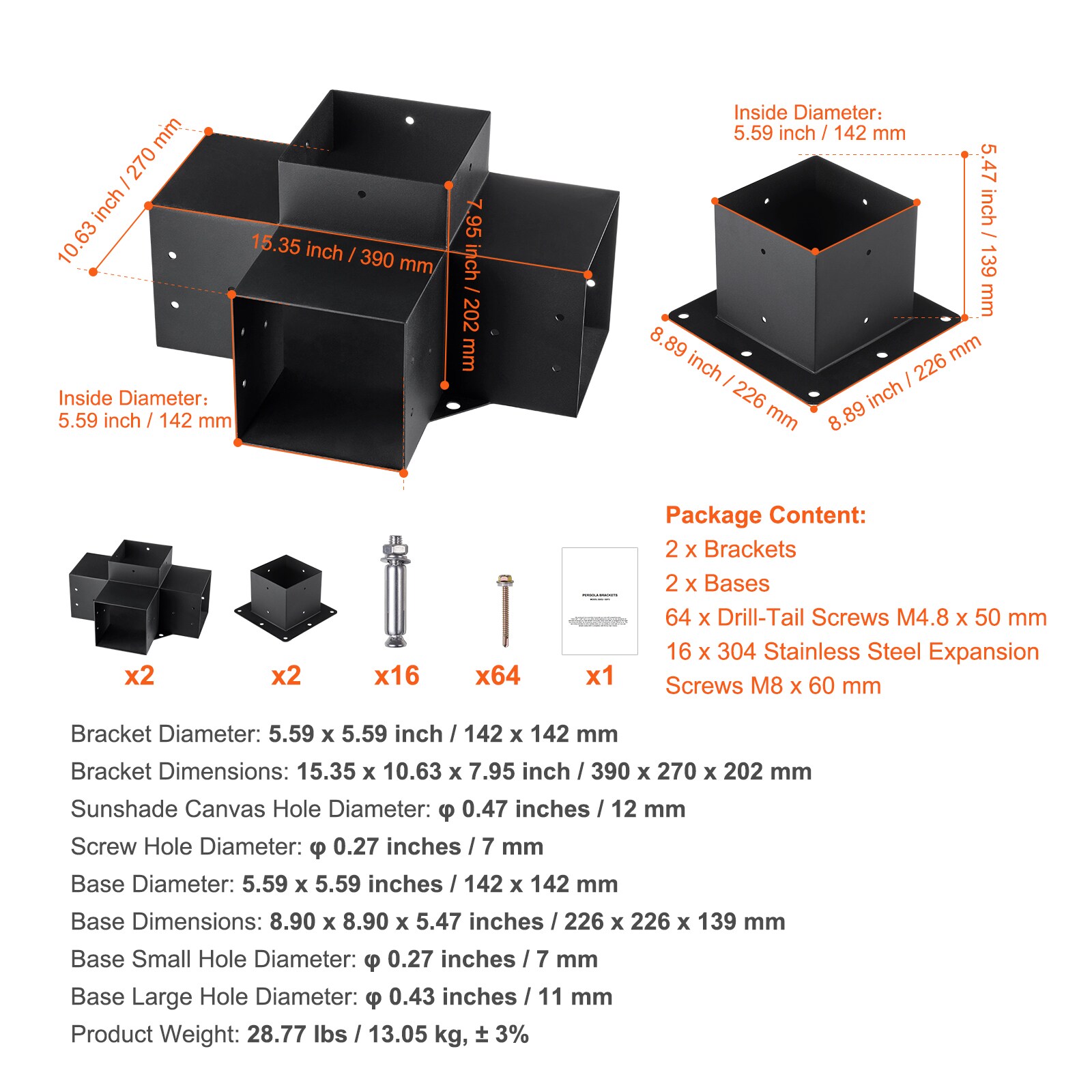

Product Dimensions: 390 x 270 x 202 mm (15.35 x 10.63 x 7.95 inches)
Base Outer Dimensions: 226 x 226 x 139 mm (8.90 x 8.90 x 5.47 inches)
Sunshade Canopy Hanging Holes: Yes
Drainage Hole Dimensions: 132 x 132 mm (5.20 x 5.20 inches)
16 x Expansion Steel Nails M8 x 60 mm
64 x Drill-Tail Screws M4.8 x 50 mm
1 x Instruction Manual
