SVOPES Orange 20-Ton Steel Hydraulic Jack kit

This hydraulic press is engineered for durability, featuring a reinforced design that guarantees reliable and steady performance for a variety of tasks, ensuring your equipment lasts through demanding applications.

Equipped with two flat, adjustable stamping plates, this hydraulic press simplifies operations by allowing you to easily fix parts of different sizes, making the job more efficient.

The heavy-duty vertical column prevents any slipping or distortion, maintaining secure performance; It’s ergonomically designed to enhance ease of use, making operations effortless and precise.

Built with a robust construction, this press is designed for enduring strength and long-term use; The powder-coated finish provides additional protection against corrosion, ensuring reliability over time.

The strong, unwavering foundation of the press is resistant to pressure, offering secure performance while maintaining high stability during use, ensuring consistent results throughout each operation.

Designed to withstand intense pressure, the solid steel frame ensures the press remains stable and resistant to deformation, providing long-lasting durability even under heavy loads.

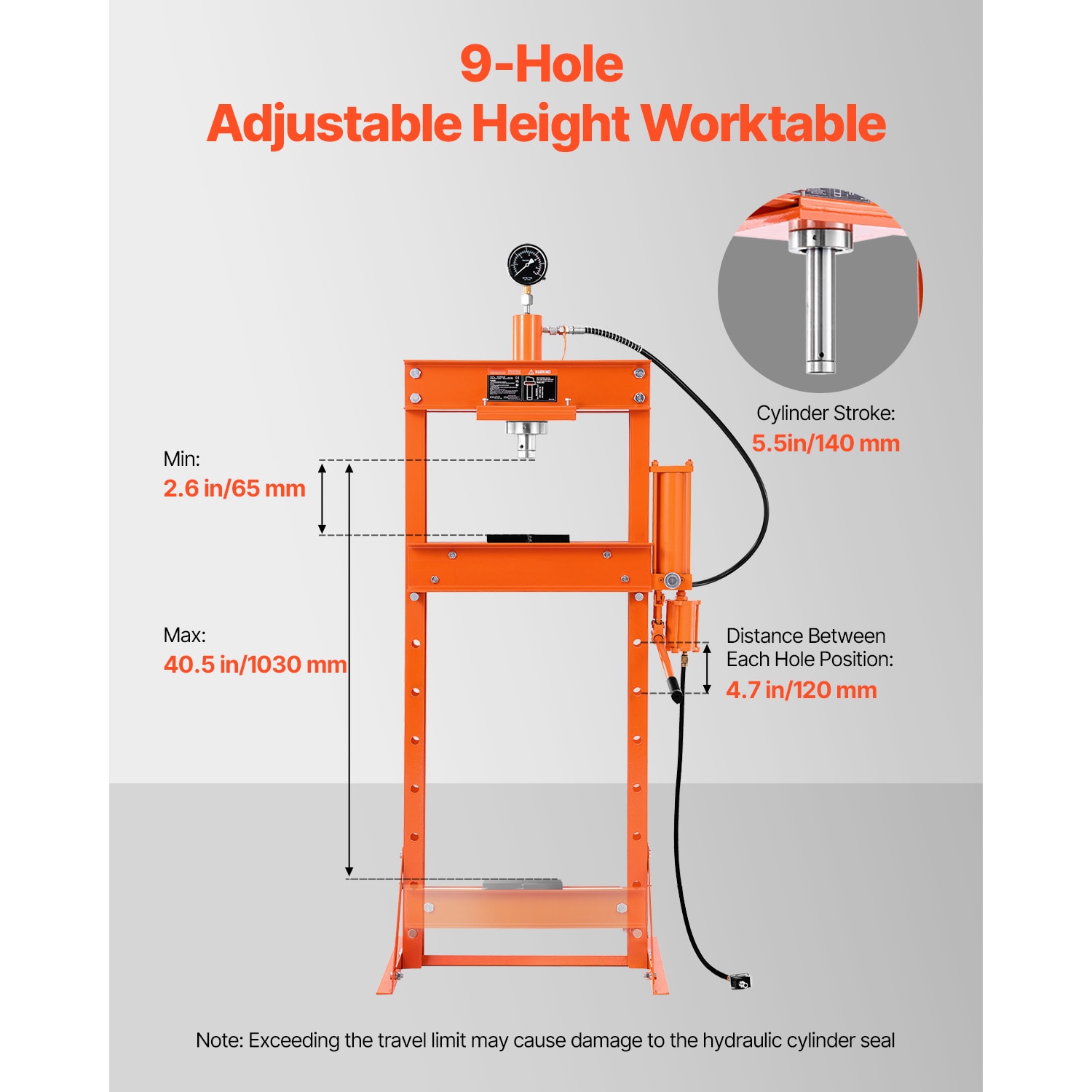

Flexible Height Adjustability: The worktable boasts a quick-adjust pin system with 9 height settings, allowing easy adjustments between 2.6 to 40.5 inches (65-1030 mm), with a 5.5-inch cylinder stroke (140 mm) for versatile working positions

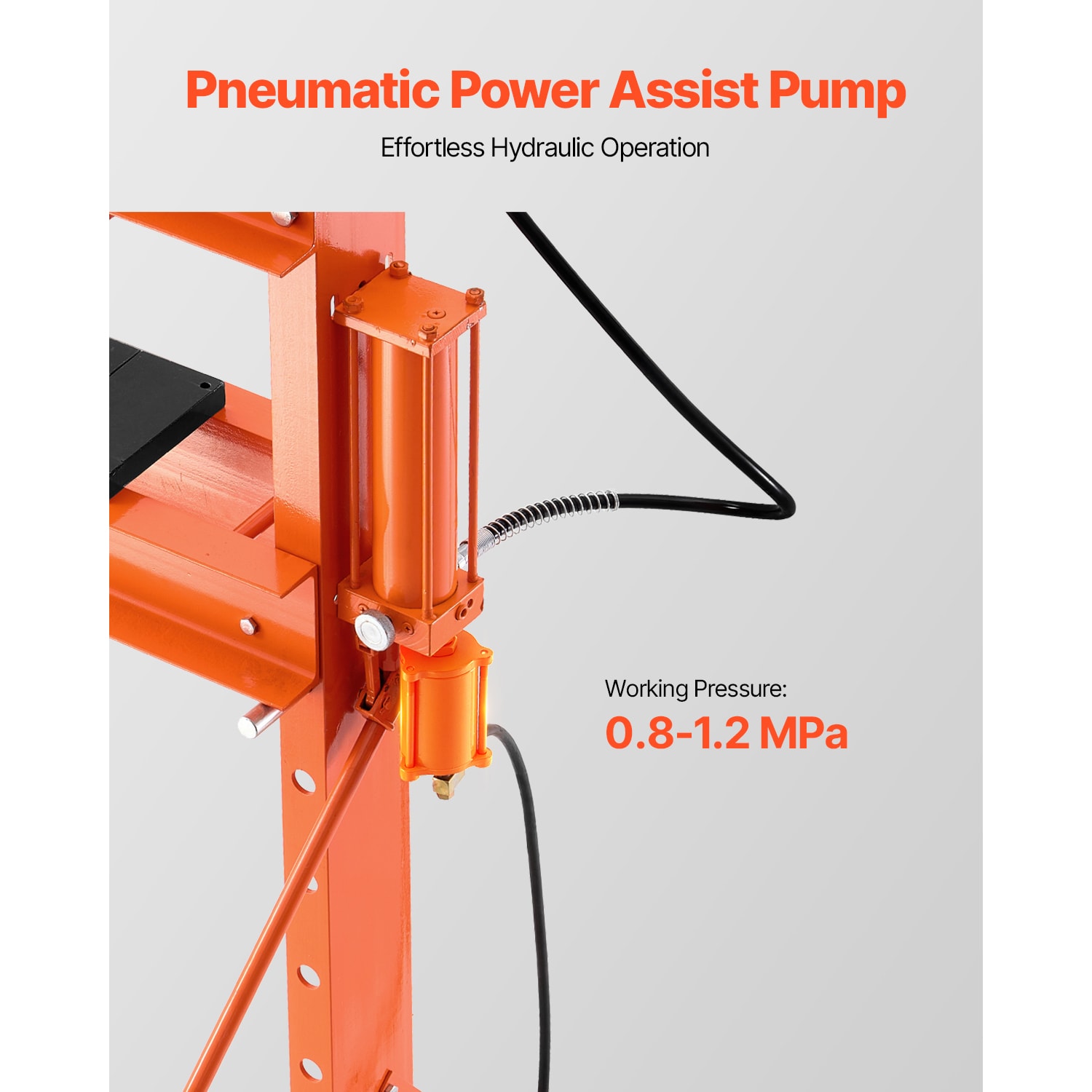

Item Model Number: ZX0901 item 20T, Product Dimensions: 770 × 596 × 1770 mm / 30.2 × 23.6 × 69.8 in, Cylinder Stroke: 145 mm / 5.7 in, Hydraulic Oil Model: 15#, Net Weight: 86.35 kg / 190.5 lbs (Includes all accessories), Rated Load: 20T, Hydraulic Pump Operating Pressure: 0.8-1.2 MPa.

1 x 20T Pressure Gauge, 1 x Nylon Washer, 1 x Oil Cylinder Component, 1 x Tapered End Tightening Screw M8×8 (pre-installed on oil cylinder component), 1 x Upper Cap (pre-installed on oil cylinder component), 1 x Piston (pre-installed on oil cylinder component), 4 x Hex Bolt M8×16, 2 x Cross Beam, 2 x Cotter Pin, 4 x Hex Bolt M10×130, 8 x Hex Bolt M10×25, 4 x Diagonal Brace, 4 x Hex Bolt M12×30, 2 x Angle Iron, 1 x Connecting Rod Component, 4 x Flat Washer φ12, 4 x Spring Washer φ12, 4 x Hex Nut M12, 1 x Handle, 3 x Hex Bolt M10×20, 1 x Pneumatic Quick Connect Hose (European-style), 1 x Pneumatic Manual Pump Component, 1 x User Manual, 1 x European-style Quick Connect Fitting, 8 x Hex Bolt M16×35, 8 x Flat Washer φ16, 8 x Spring Washer φ16, 8 x Hex Nut M16, 2 x Vertical Column, 1 x Oil Cylinder Mounting Plate Welded Assembly, 1 x Lower Cap (Pre-installed on oil cylinder component), 15 x Flat Washer φ10, 15 x Spring Washer φ10, 12 x Hex Nut M10, 2 x Pressure Block, 4 x Workbench Support Pipe, 2 x Channel Steel Workbench.
