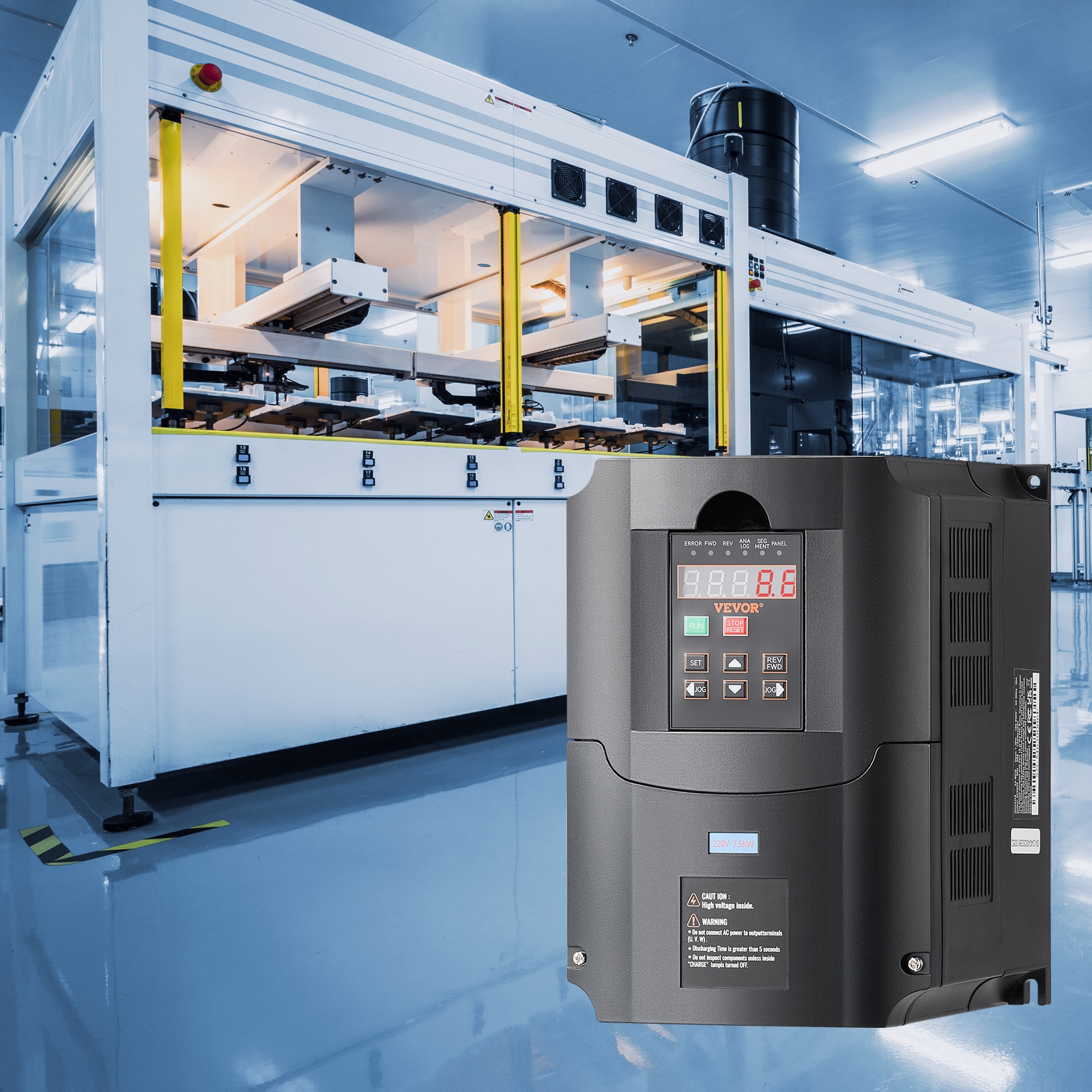

The input of this variable frequency drive can be single-phase 220V (1PH) or three-phase 220V (3PH), and it outputs three-phase 220V (3PH). It features easy wiring, a clear display, and comprehensive protections. This simplifies your operations, boosts energy efficiency, and reduces machinery faults.

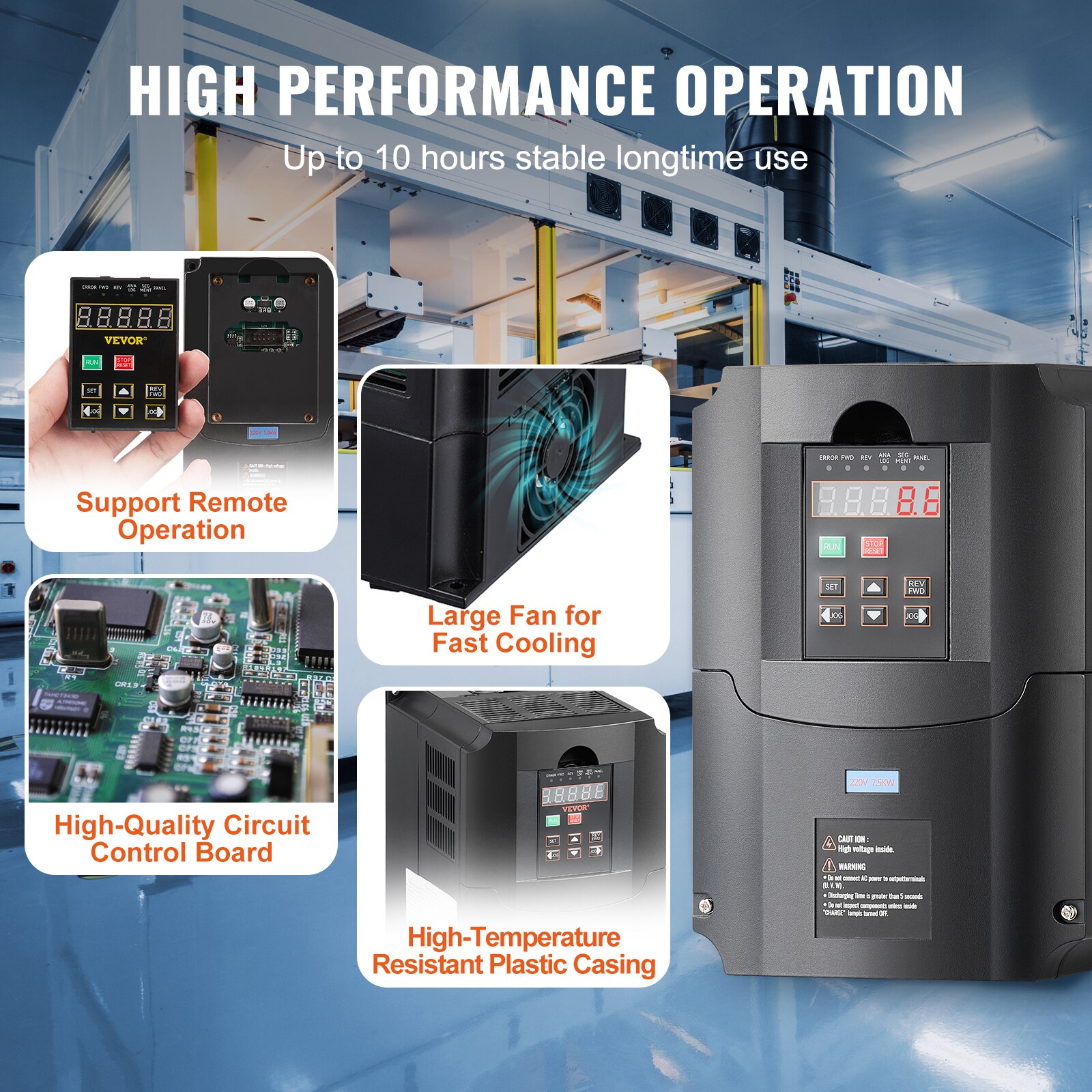

It features a detachable panel that can be connected for remote control, adding to the ease of use.
Stable operation is achieved through large cooling fans and a multi-hole heat dissipation design, preventing overheating and overloading.
Mainly made of flame-retardant ABS, it ensures high performance and durability for a reliable experience.
The VFD is equipped with an intelligent protection system against overcurrent, overload, overvoltage, and phase loss.

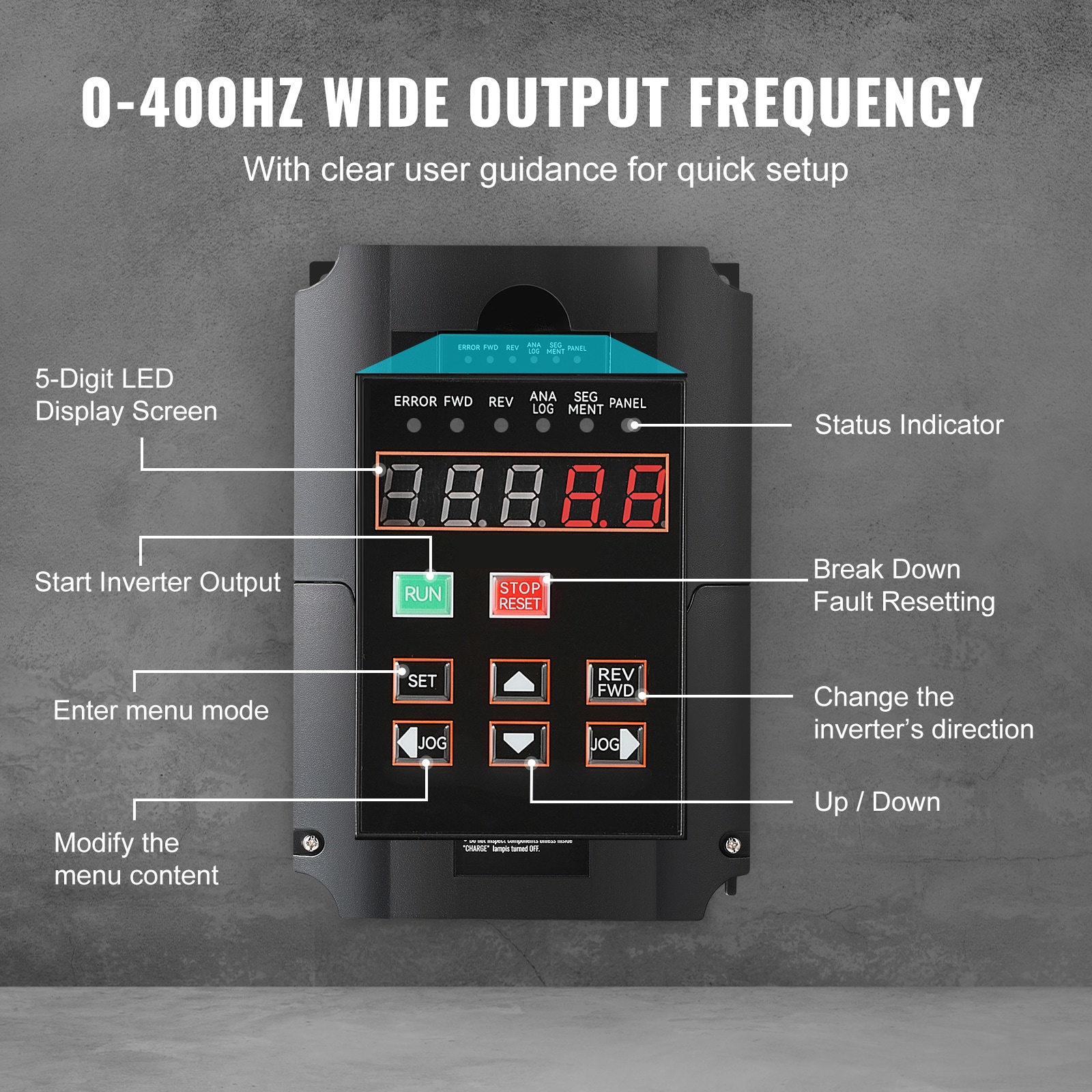

It is designed for user convenience, with an easy-to-understand display and simple buttons for a smooth start.
The variable frequency drive can handle input frequencies of 40-60Hz and offer an output frequency range of 0-400Hz.
Versatile Applications: Our variable frequency drive (VFD) is suitable for driving three-phase motors in various machines like CNC routers, compressors, and pumps; For heavy loads, choose a higher-powered VFD for the best outcome.
Item Model Number: A2-8075
Net Weight: 2.56 kg / 5.6 lbs
Product Dimensions: 219 x 149 x 178 mm / 8.6 x 5.9 x 7.0 inch
Input Voltage: 220V (Single Phase or Three Phase)
Input Current: 35A
Output Voltage: 220V (Three Phase)
Power: 7.5KW
Input Frequency: 40-60Hz
Output Frequency: 0-400Hz
Horsepower: 10HP
Main Material: Flame-Retardant ABS
1 x User Manual
