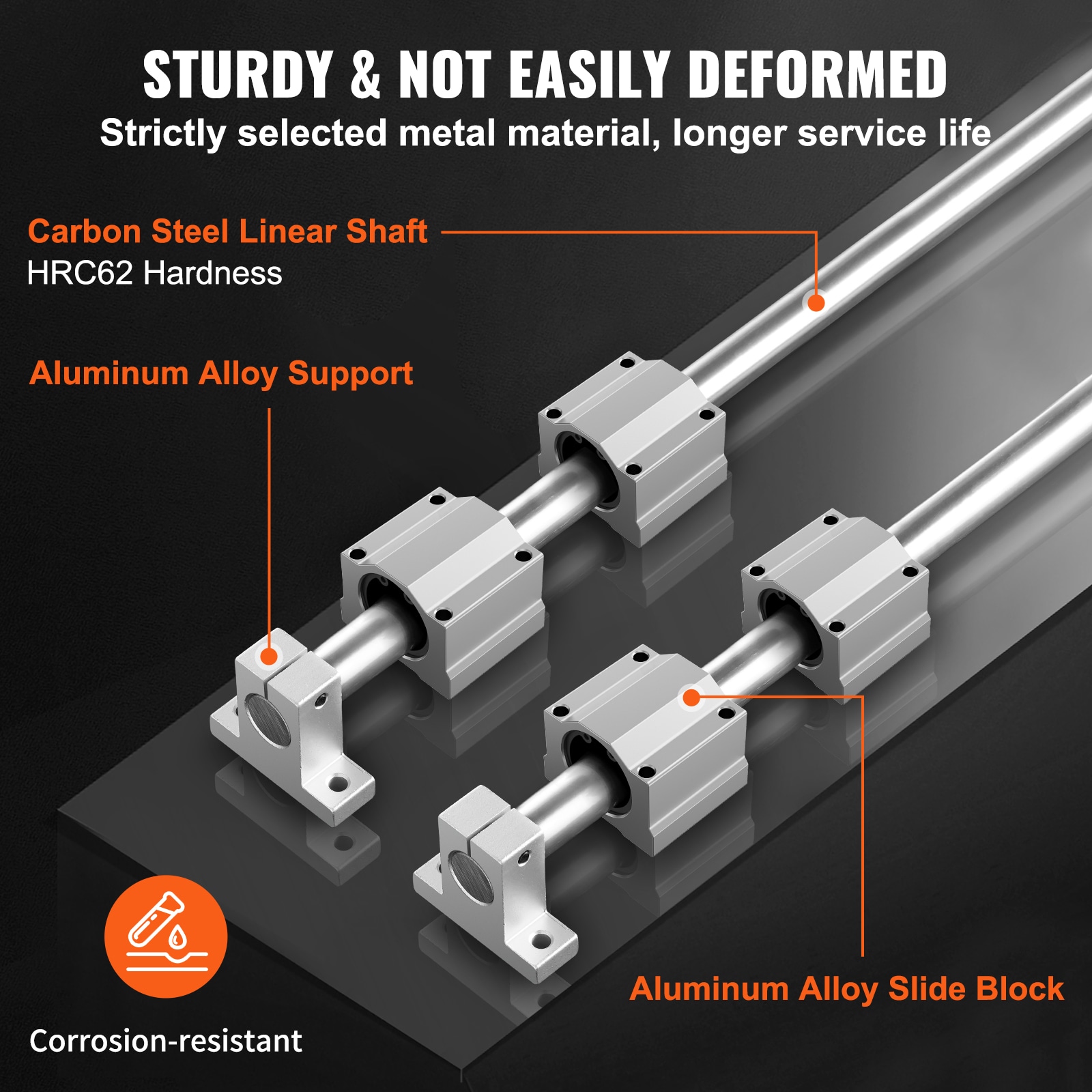

The linear shafts are chrome-plated to resist corrosion, making them highly durable even in humid environments; Additionally, the chrome coating offers excellent heat resistance, extending the lifespan of the rails.

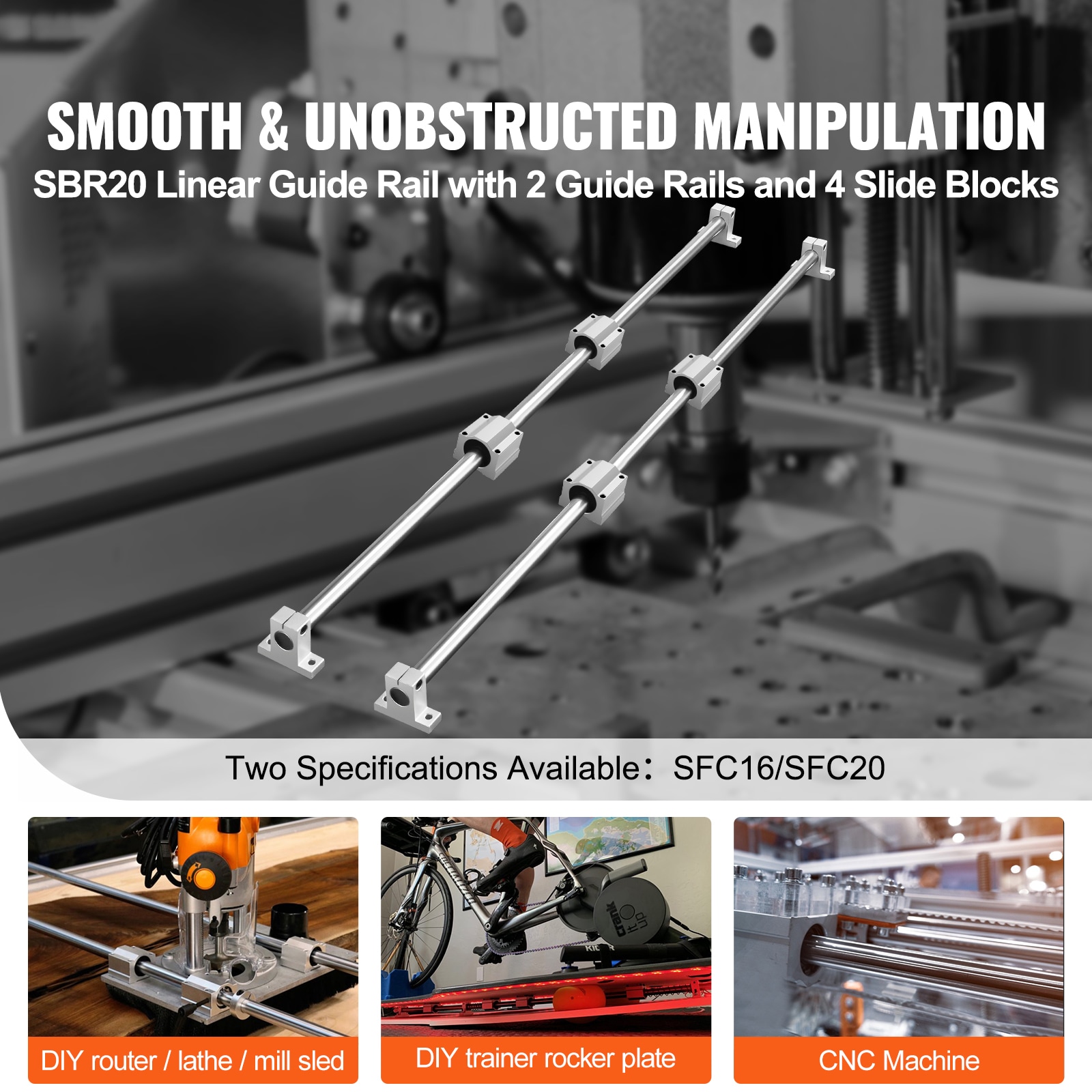

Ideal for high-load automation systems and DIY projects, the SVOPES linear rail kit is commonly used in CNC engraving machines, lathes, and various custom machinery, adapting to a wide range of tasks.

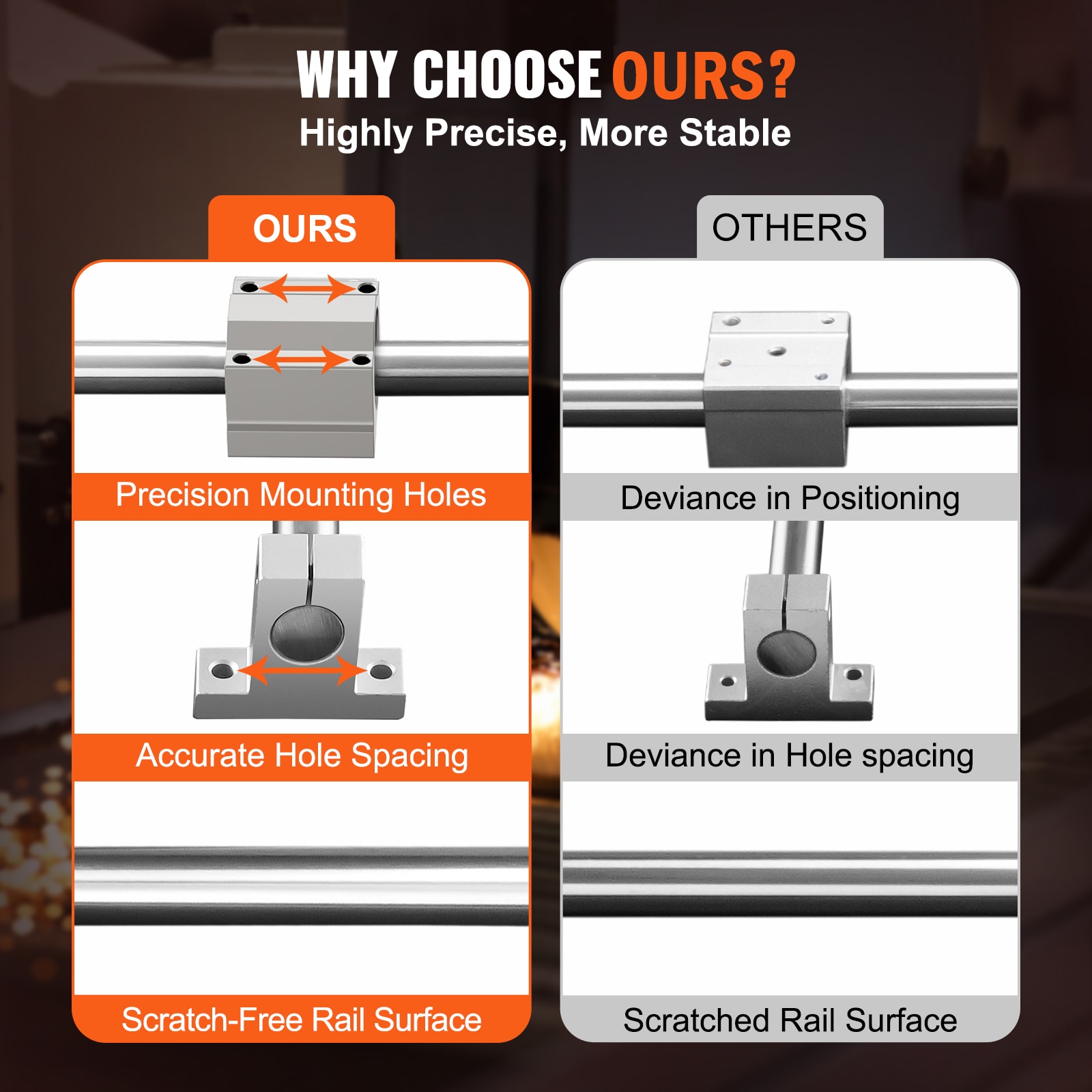

SVOPES linear motion guides are crafted with exact hole spacing, precise hole diameters, and standardized shaft measurements, ensuring that your equipment is installed with the highest level of accuracy.
The SVOPES linear bearing features a robust all-metal design, with the slide block securely locked onto the linear shaft, offering exceptional load-bearing strength for demanding applications.
The SVOPES linear guide rails come pre-assembled with shafts, supports, and sliding blocks; Both the blocks and rail supporting base feature mounting screw holes for easy setup; You can also adjust the tightness of the sliding bearings using the side screw hole for precise control.

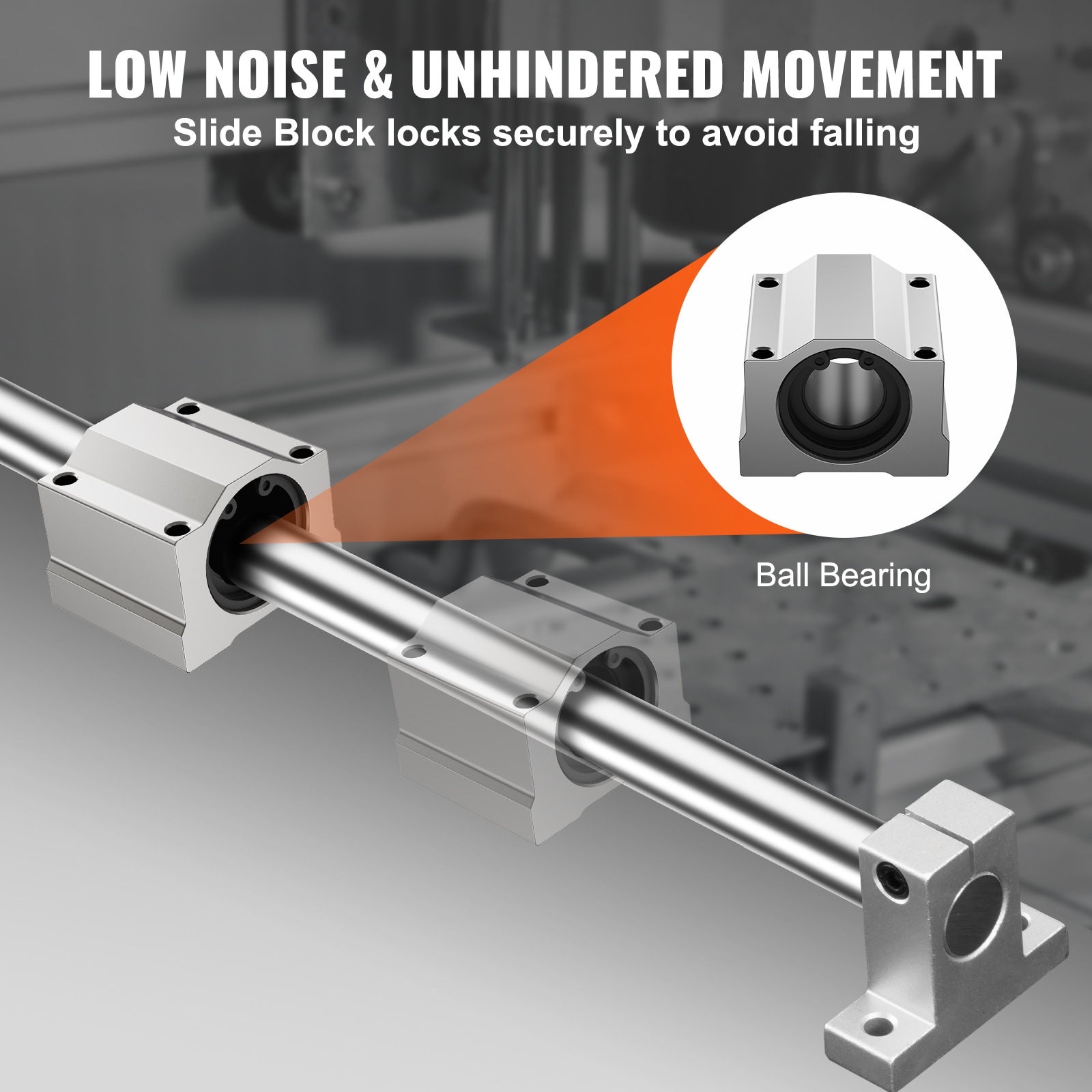

Equipped with an aluminum SFC slide block and integrated ball bearings, the system ensures smooth, uninterrupted sliding for consistent, long-term performance in a variety of environments.
Heavy-Duty Load Capacity: Each block in the SFC20-1200 mm linear motion guide rail can handle dynamic loads of up to 882 N and static loads of 1370 N, making it a powerful solution for demanding applications that require reliable performance under heavy pressure.
Guide Rail Length: 1200 mm / 47.2 in,
Shaft Diameter: Φ20 mm,
Dynamic Load (per block): 882 N,
Static Load (per block): 1370 N,
Slide Block Size (L x W x H): 50 x 54 x 41 mm / 2 x 2.1 x 1.6 in,
Material: High Carbon Steel & Aluminum,
Mounting Hole Distance A: 40 mm / 1.6 in,
Mounting Hole Distance B: 40 mm / 1.6 in,
Product Dimensions (L x W x H): 1200 x 120 x 51 mm / 47.2 x 4.7 x 2 in,
Package Size (L x W x H): 1310 x 145 x 80 mm / 51.6 x 5.7 x 3.1 in,
Net Weight: 7.1 kg / 15.7 lbs,
Model Number: SFC20-1200L,
Slide Block Model: SC20.
4 x SC20 Sliding Blocks,
2 x SFC20 1200mm Linear Shafts,
4 x Rail Supports.
