SVOPES SFC linear guide rail consists of 2 guide rails and 4 slide blocks; The resilient aluminum guide rails have precise hole diameter and distance; The SC slide blocks use ball bearings to ensure smooth and unhindered movement; Various specifications are offered to precisely meet your demands.
The surface of the linear shaft of the linear motion slide rails is chrome-plated, being unafraid of humid environments and having good heat resistance simultaneously.
The linear bearing features an all-metal construction, and the slide block is firmly locked onto the linear shaft, offering a high load-bearing capability.
The linear rail kit is widely utilized in high-load automation equipment and DIY projects such as DIY CNC engraving machines and lathes.
The aluminum SFC slide block and built-in ball bearings ensure smooth and effortless movement, guaranteeing long-term stable operation.
The linear guide rails come pre-assembled with the shaft, support, and sliding blocks; Both the blocks and rail supporting base have mounting screw holes for convenient installation and connection; The tightness of the sliding bearing can be adjusted through the side screw hole of the block.
The linear motion guides have precise hole distance, hole diameter, and standard shaft diameter, enabling more accurate equipment installation.

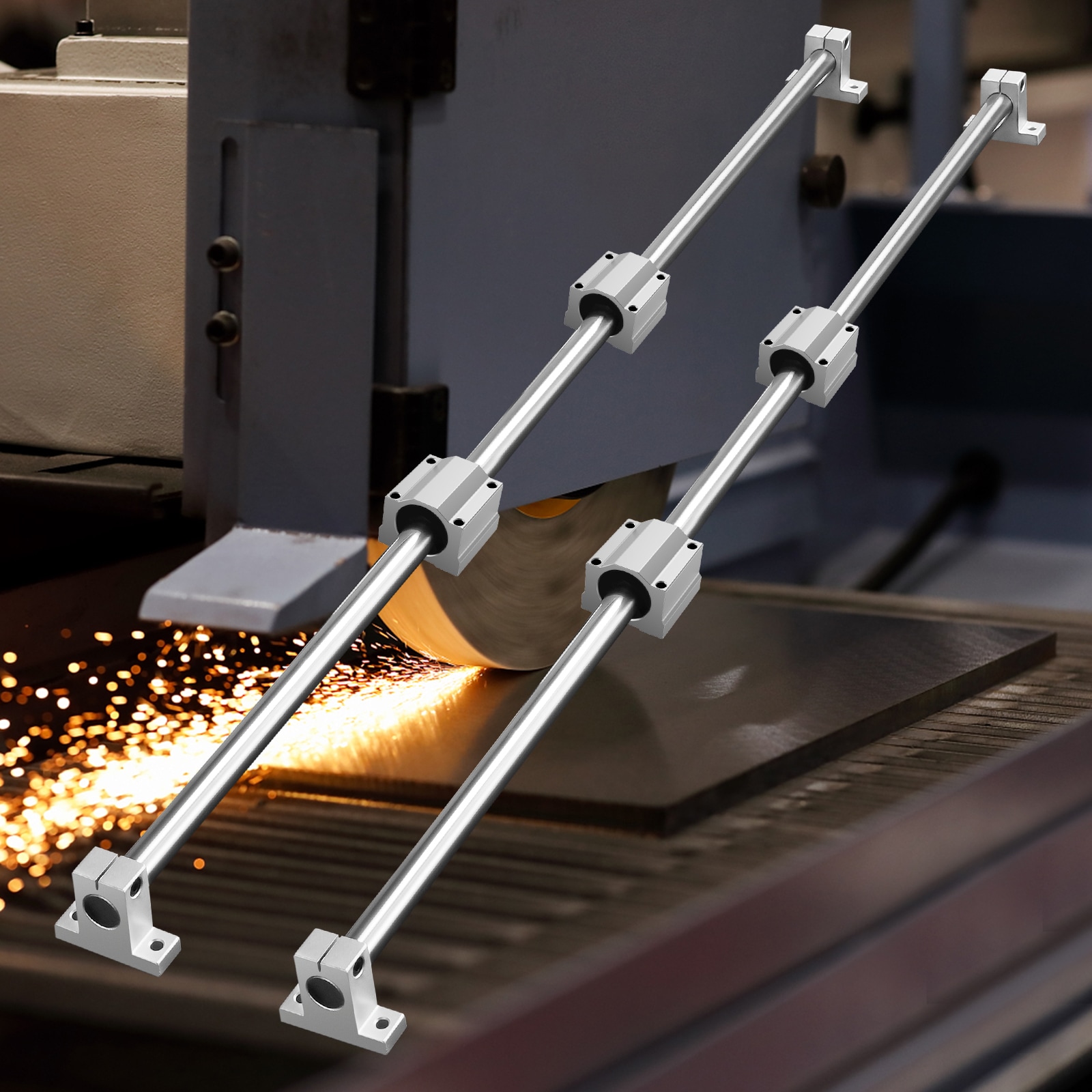

Sturdy Construction: The linear motion guide rail set comprises 2 x 39.4" / 1000mm SFC16 linear shafts, 4 SC16 slide blocks, and 4 rail supports; Each block has a dynamic load capacity of 774N and a static load capacity of 1180N.
Guide Rail Length: 1000 mm (39.4 in),
Shaft Diameter: Φ16 mm,
Dynamic Load (per block): 774 N,
Static Load (per block): 1180 N,
Material: High Carbon Steel & Aluminum,
Mounting Hole Distance A: 36 mm (1.4 in),
Mounting Hole Distance B: 36 mm (1.4 in),
Slide Block Size(L x W x H): 44 x 50 x 38.5 mm (1.7 x 2 x 1.5 in),
Product Dimensions(L x W x H): 1000 x 96 x 44 mm (39.4 x 3.8 x 1.7 in),
Package Size(L x W x H): 1100 x 130 x 80 mm (43.3 x 5.1 x 3.1 in),
Net Weight: 5.1 kg (11.2 lbs),
Model Number: SFC16-1000L,
Slide Block Model: SC16.
4 x Rail Supports,
2 x SFC16 1000mm Linear Shaft,
4 x SC16 Sliding Blocks.
