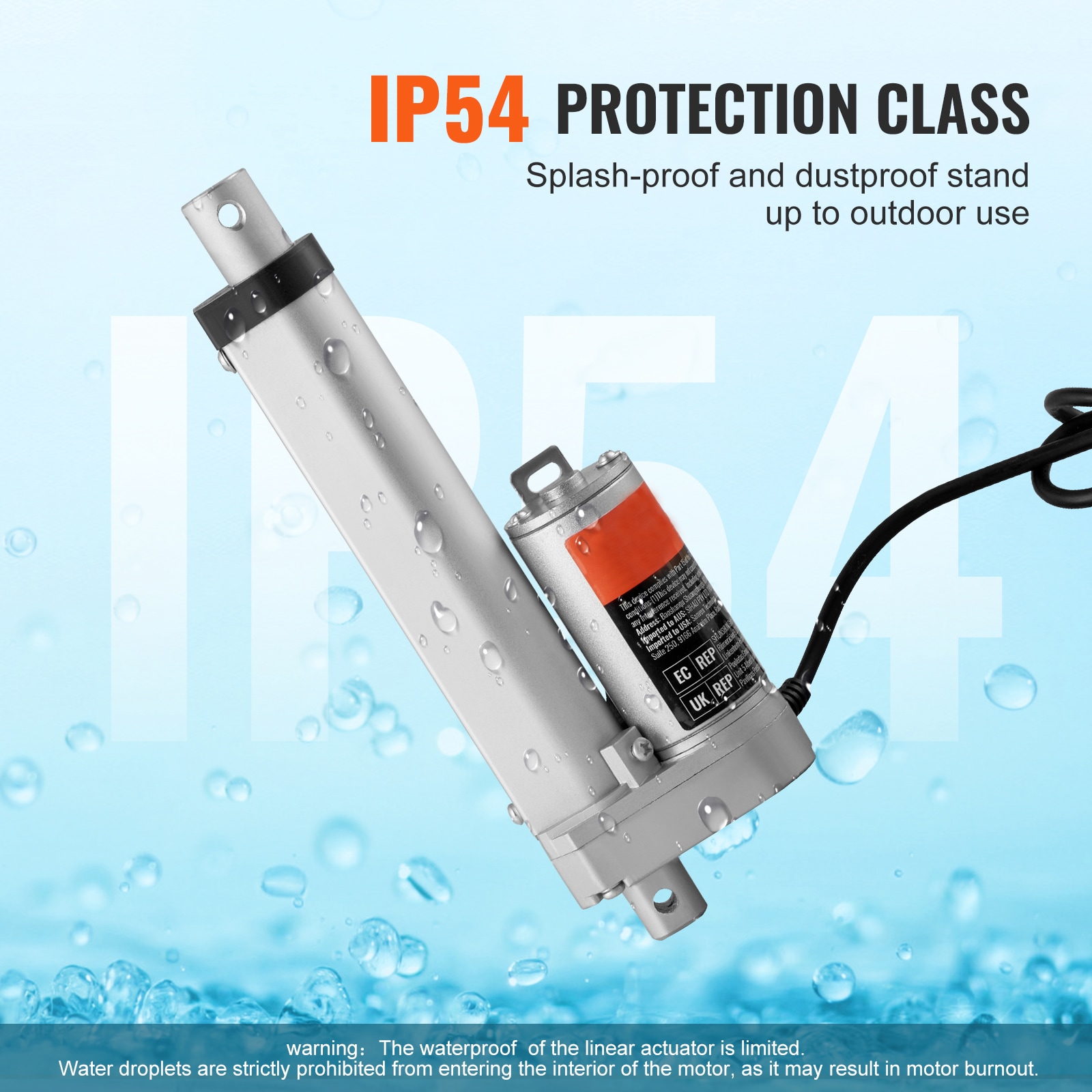

This electric linear actuator is designed with an IP54 protection rating, ensuring dependable performance by safeguarding against dust, light splashes, and mild humidity; (Note: Avoid allowing water to enter the motor's interior, as it could cause damage or motor failure;)

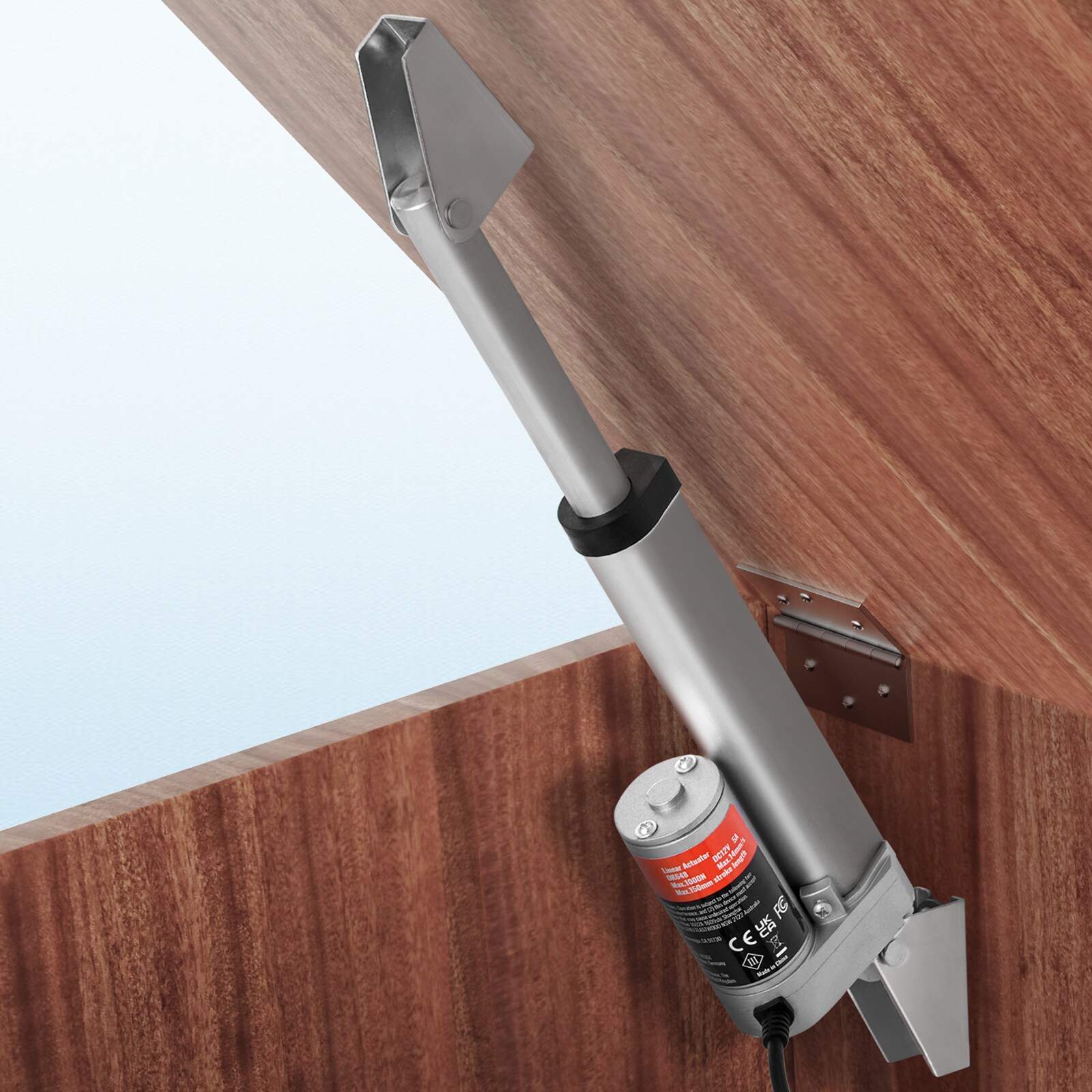

Effortlessly blending into your home or office environment, this linear motion actuator is designed to automate the opening and closing of curtains, adjust height systems, and operate electric door mechanisms; It enhances convenience, comfort, and modern living functionality.
Designed with attention to detail and constructed from durable materials, this stroke linear actuator delivers reliable accuracy and robust performance, enhancing its longevity; Built to withstand regular operation, it ensures consistent stability, providing dependable assistance for a wide range of applications.

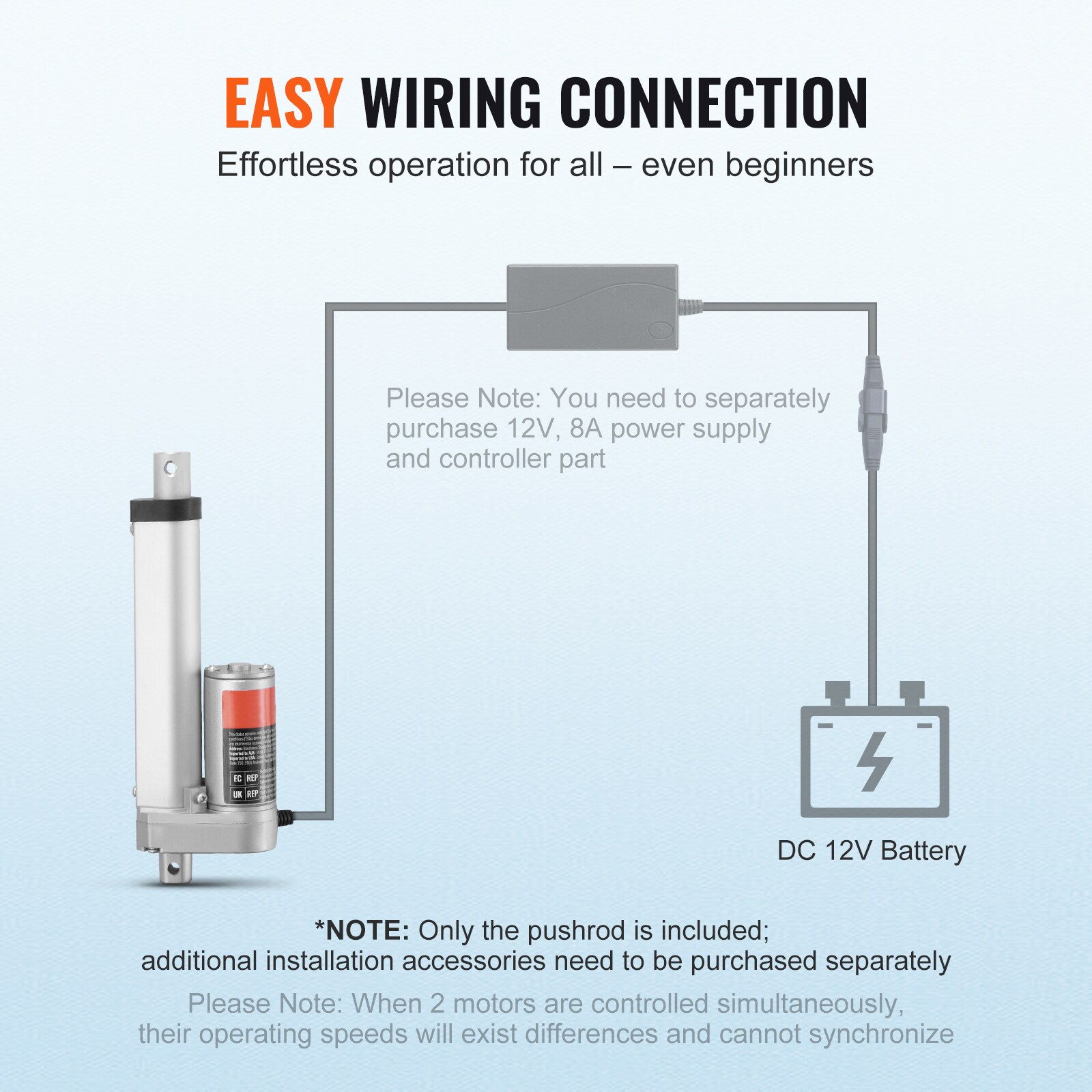

To achieve precise movement control, it is recommended to pair the linear actuator with a compatible controller; Please be aware that this product includes only the push rod, and any additional installation components must be acquired separately.
Caution: The linear actuator has limited water resistance; Ensure that no water droplets enter the motor's interior, as this could lead to motor damage or failure.
Perfect for scenarios requiring frequent height adjustments, such as modifying furniture levels or altering the height of office desks and chairs.
Key Specifications: Stroke Length: 4 inches (100 mm); Movement Speed: 0.19 inches per second (5 mm/s); Collapsed Length: 8.85 inches (225 mm); Fully Extended Length: 12.85 inches (325 mm); Power Consumption: 5 amps; Operating Voltage: DC 12V; Duty Cycle: 25%
Item Model Number: OK648-1500N,
Rated Voltage: DC12V,
Maximum Load/Actuation Force: 1500N,
Travel Speed: 0.19 inch/s / 5 mm/s,
Stroke Length: 4 inch / 100 mm,
Protection Class: IP54,
Noise Level: ≤60dB,
Main Material: Aluminum Alloy,
Net Weight: 1.96 lbs / 0.89 kg (including all accessories),
Product Dimensions: 8.85 x 2.95 x 1.57 inch / 225 x 75 x 40 mm.
1 x Linear Actuator,
2 x Mounting Brackets,
2 x Screw Rods,
2 x R-Type Pins.
