This steering kit, which includes a cable, pump, cylinder, and steering wheel, is designed for a wide range of boats such as cruisers, runabouts, center console boats, and offshore fishing vessels; The compact and well-balanced system provides all the components required for straightforward installation.
This kit includes two tubes; One plastic tube is connected to the quart bottle, and the other end is screwed into the filling hole of the pump, which helps with bleeding the system.
It is suitable for boats with a speed of up to 60 mph that are powered by single outboards with a power rating of up to 300 HP or twin outboards with a power rating of up to 450 hp (non-counter rotating); For twin-engine applications, a tie bar kit is required.

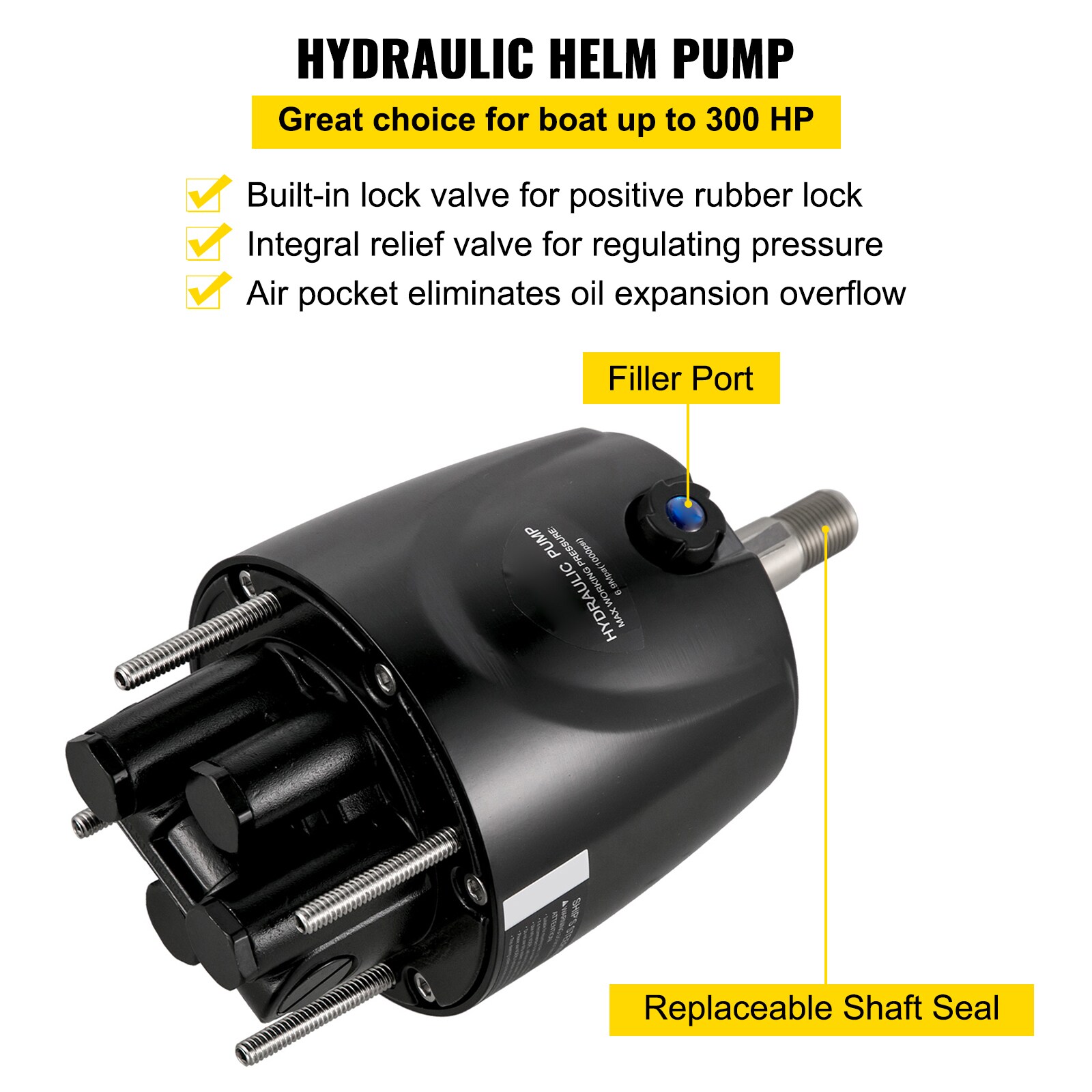

The helm has a maximum working pressure of 6.9 Mpa/1000psi; It is equipped with a replaceable shaft seal to prevent fluid leakage; The ORB fittings are designed for easy hose routing and quick assembly.

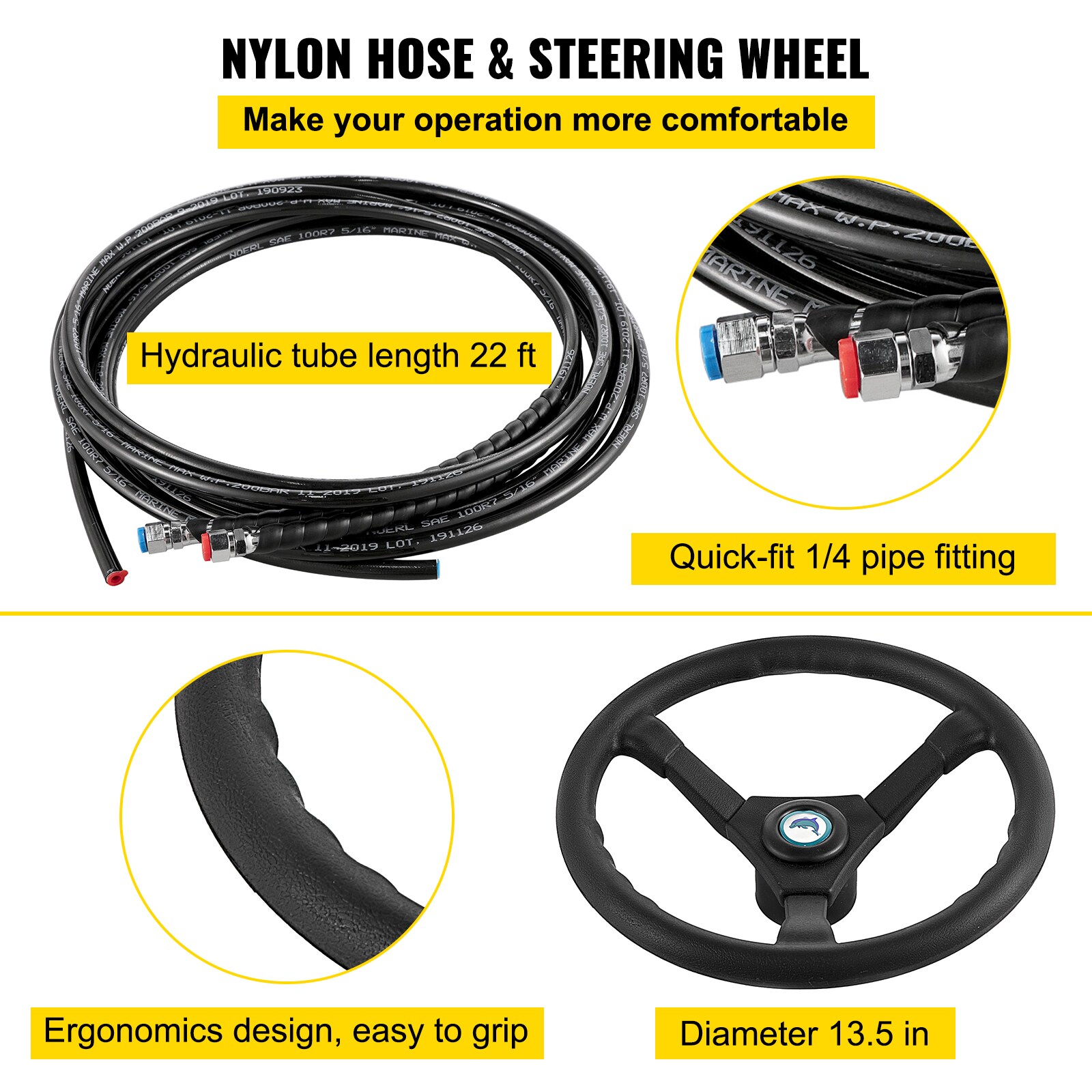

This durable nylon hose is designed for high-strength applications and features a convenient quick-connect 1/4-inch tube for effortless installation; The textured steering wheel provides a secure grip for seamless handling.
This set includes two tubes for convenient use; One plastic tube connects to the quart bottle, while the other end attaches securely to the pump's filling port, simplifying the process of system bleeding.
Designed for boats reaching speeds of up to 60 mph, this product is compatible with single outboard engines up to 300 HP or twin outboard engines up to 450 HP (excluding counter-rotating models); For twin-engine setups, a tie bar kit is required.

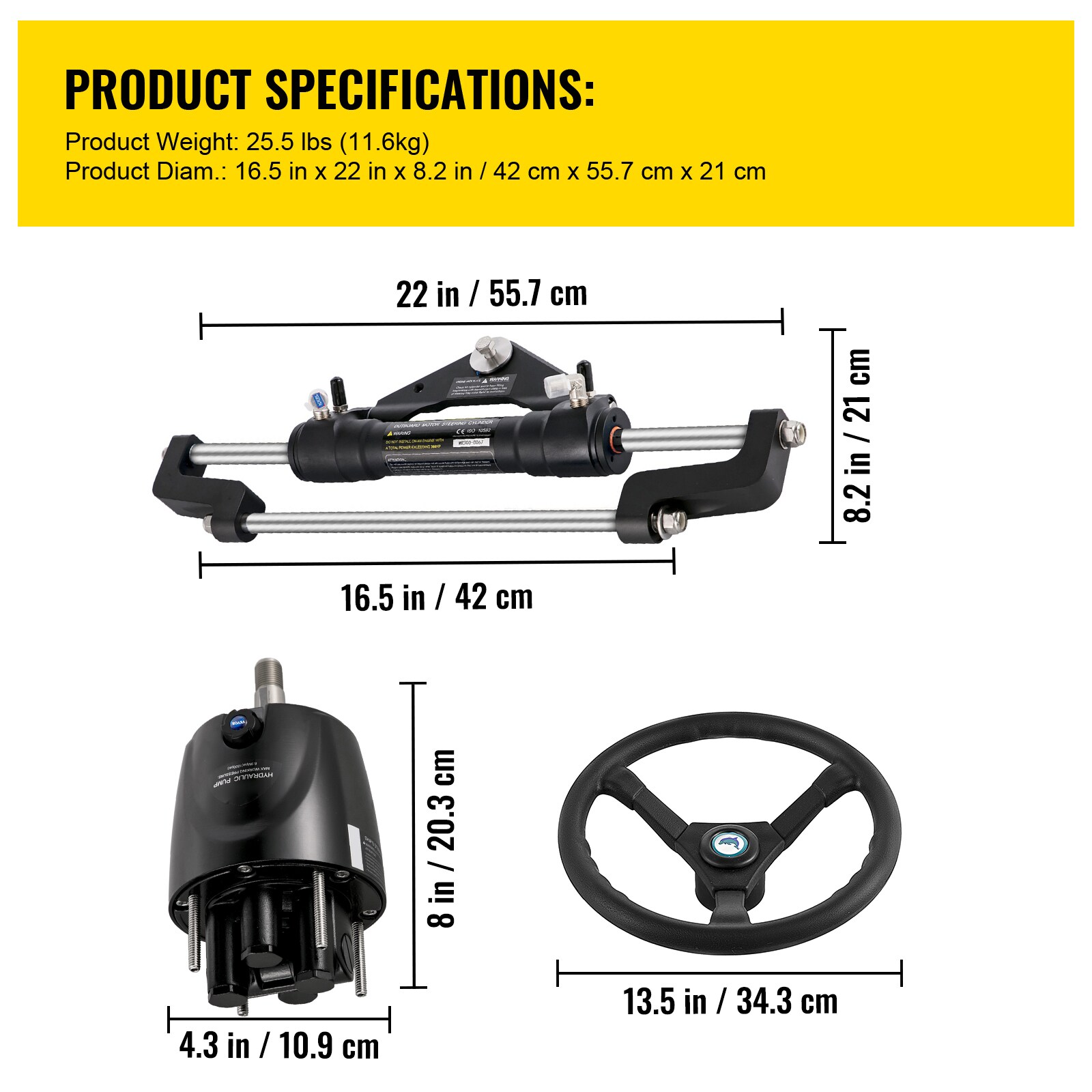

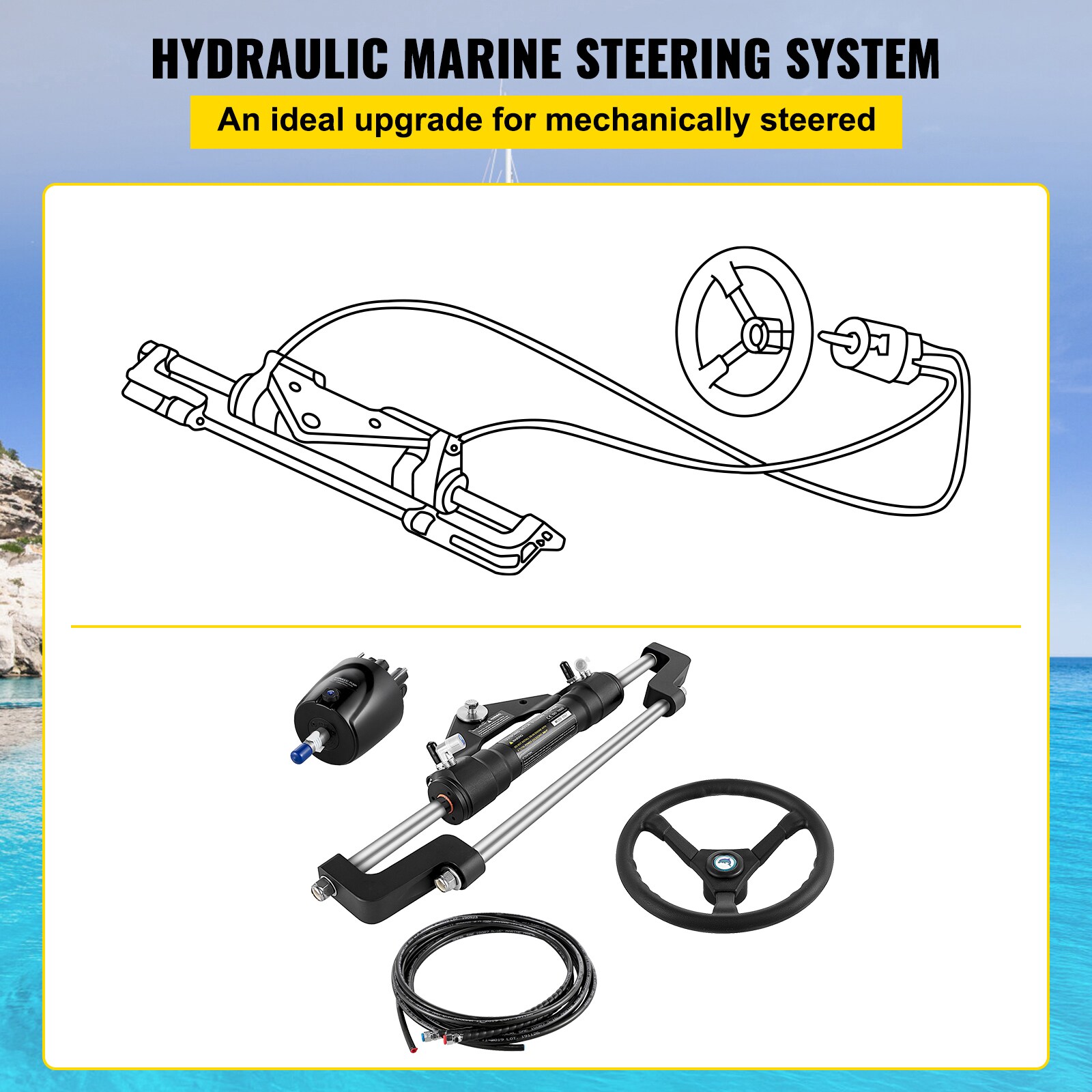

Hydraulic Steering System for Boats: This kit includes a steering cylinder, steering pump, 13.5-inch steering wheel, and a 22-foot hose set; Designed to replace worn or damaged components, it ensures smooth operation and enhances your boating experience during sailing adventures.
Model: HK6322A-3 Hydraulic Outboard Boat Steering Kit
Output Force: 468(KGF)
Application: Up to 300HP
Max Pressure: 6.9 Mpa/1000psi
Hose Length: 22 FT
Steering Wheel Dia,: 13.5"
Material: Aluminum Alloy + PVC

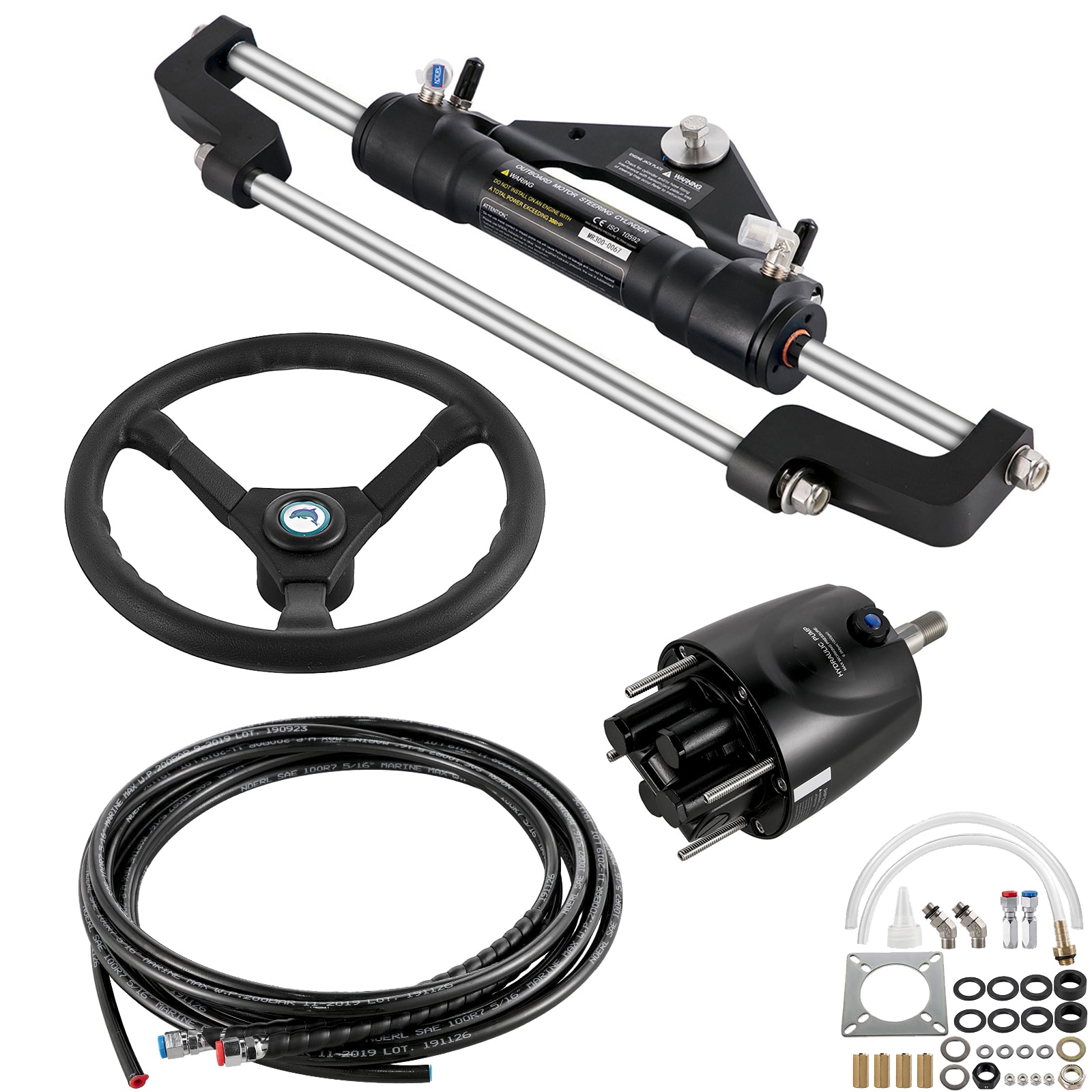

1 x Hydraulic Pump
1 x Cylinder
2 x 22 ft Hose
1 x 13.5" Steering Wheel
1 x Accessory Kit
