SPT Black Range Extender

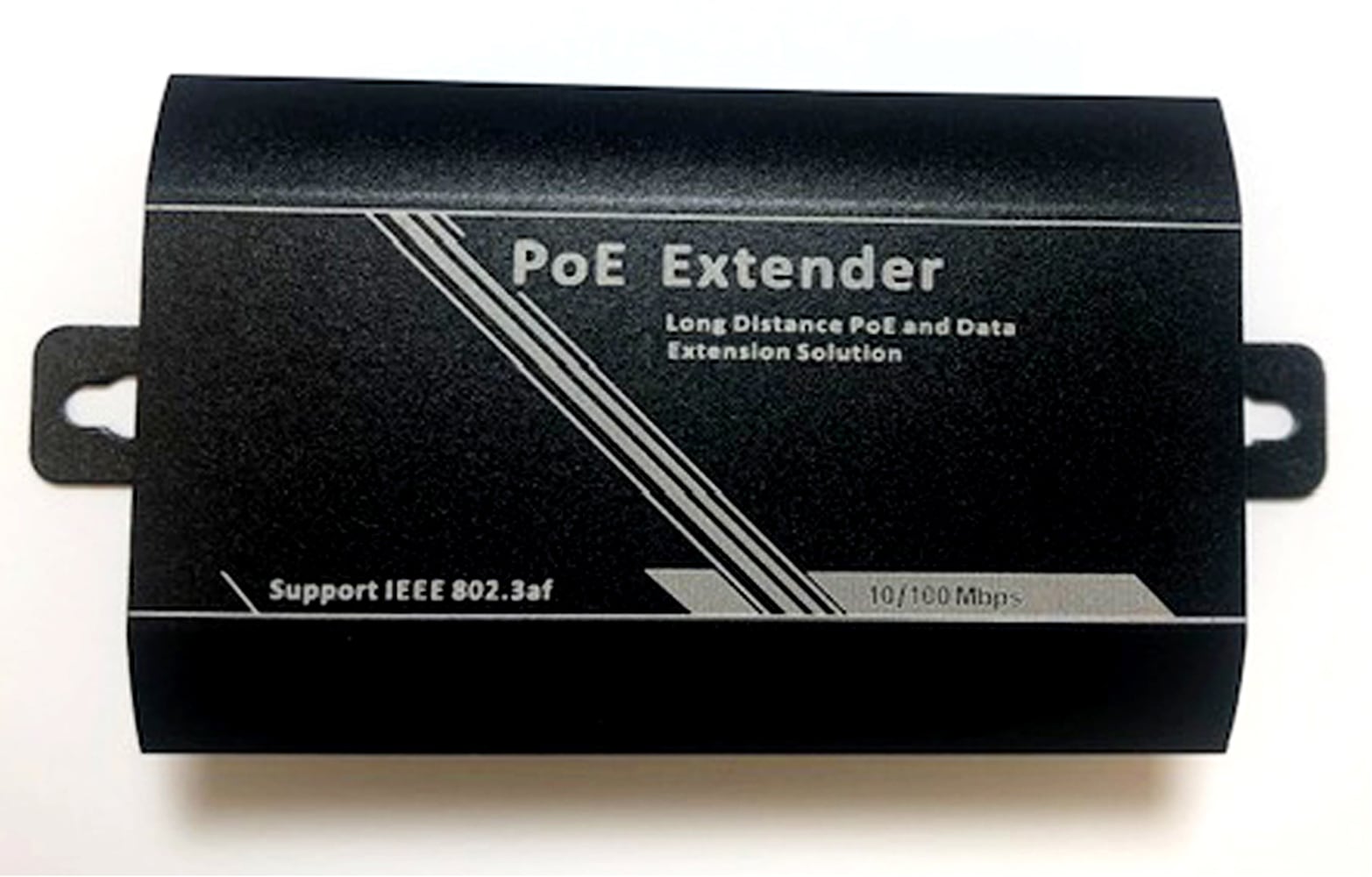

This PoE extender is used between a Power Source Equipment (PSE) and the Powered Device (PD); it injects power to the PD without affecting the data transmission performance. It offers a cost effective and quick solution to doubles the standard range of PoE from 100 to 200 m. There are 2 RJ-45 ports in a compact mini box of PoE extender, of which the IN port functions as “PoE (Data and Power) input” and the other port on the other side functions as “PoE (Data and Power) output”. The “PoE OUT” port is also the power injectors which transmit DC Voltage to the Cat5e/6 cable and transfer data and power simultaneously between the PSE and PD. This simple device which extends both the reach of Ethernet Data and IEEE 802.3af Power over Ethernet over the standard 100m (328 ft.) CAT5e/6 UTP cable to 200 m, 300 m or longer distance. Currently, PoE supported networking devices such as PoE IP Cameras, PoE Wireless Access Points and PoE IP Phones have become the mainstream of network deployment because of the convenience of easy installation regardless of additional power supply. This PoE extender offers you great flexibility to extend the distance of PoE network to triple, quadruple further in length or more.
