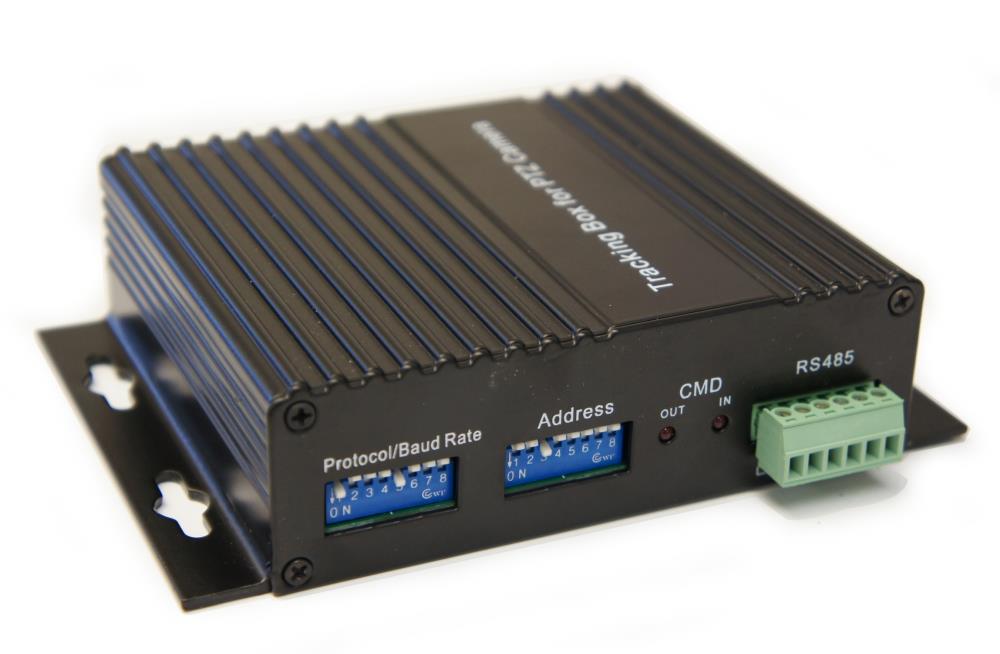

This auto tracking box is designed to convert your existing or new PTZ into an auto tracker by using this Auto Tracking Box. Connect your video and data through the auto tracking box then put your PTZ in auto track mode. Auto tracking mode is enabled by using preset 51. The auto-tracking feature starts with object detection and once identified will zoom in on the object and begin the tracking mode. The OSD allows you set up stops to control the perimeter of the area that you want to monitor. You can also set up how closely you want the unit to zoom-in on tracked objects. The converter supports both Pelco D and Pelco P protocols and the corresponding baud rates. The RS485 interface allows traditional keyboard and joystick control. It also has 4 relay inputs. You can put a motion detector on a relay to trigger the PTZ to move to a preset location and start auto tracking. After movement ceases or moves out of the monitored area the auto tracker will return the PTZ to its preset home position.
Settings include scheduling, random or region scan, cruise
Auto track and search any object
Adjustable speed and zoom control
Compatible with most PTZ cameras protocols: compel D/P
