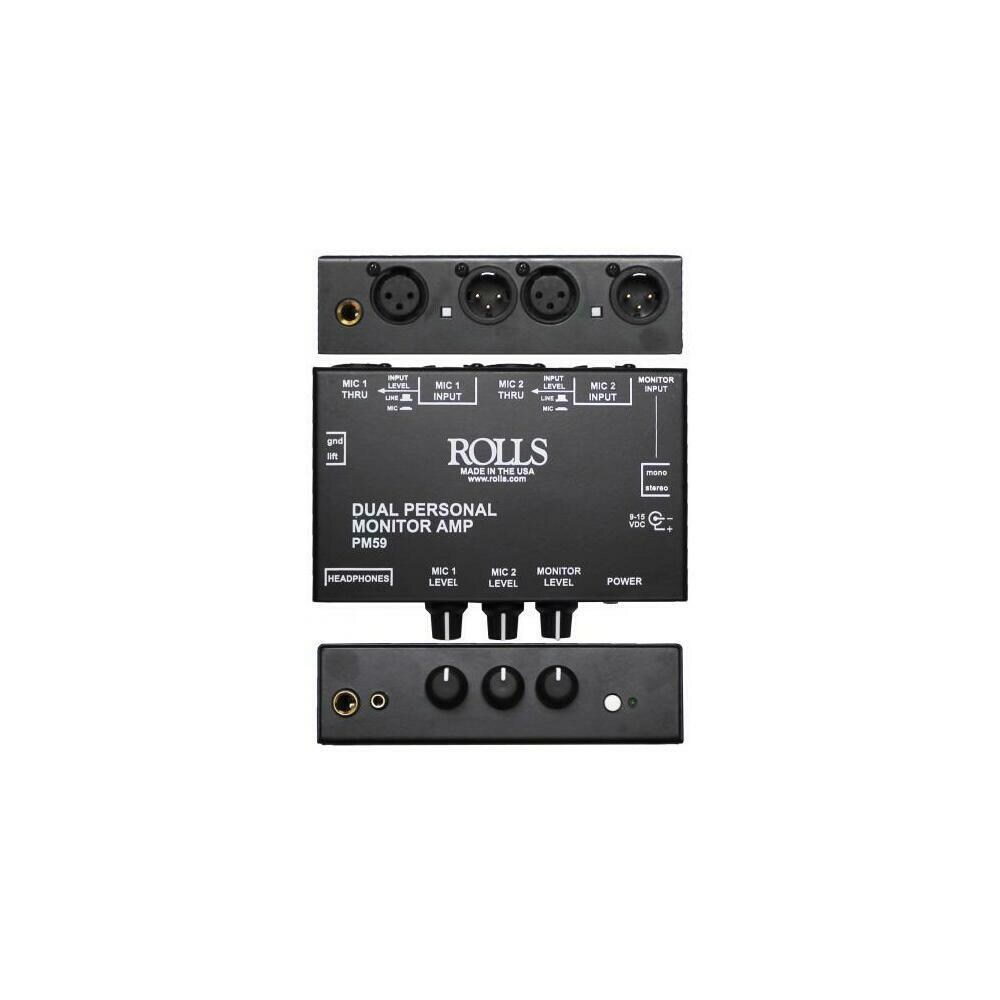

The PM59 mixes one or two microphones with a line-level Monitor signal to a set of headphones. The microphone inputs can be configured for standard mic level or line level XLR. The PM59 has a monitor level control, mic/XLR level control for each channel, mic/line pass through output XLR jacks for both channels, two headphone output jacks, and a stereo or mono TRS or TS 1/4-" monitor input jack. The PM59 is designed for recording, podcast, keyboard players, drummers who need to hear a click track, choir singers who need to hear themselves, and many other applications. Power adapter is included with the PM59. Features Two Mic or Line Level XLR inputs XLR Mic or Line Pass Thru for both channels Ground Lift on XLR Thru for XLR1 Mono or Stereo 1/4-" Monitor Input 1/4-" and 1/8-" Phone Outputs Current drain 60ma nominal no load 15vdc Specifications Frequency Response: 3Hz to 100kHz Gain: 20 dB 1/4-", 50 dB XLR Outputs: 1/4-" and 1/8-" , 8 Ohm Inputs: -20 dB max XLR 1K balanced, 20 dB monitor Dimensions: 5.5 x 4 x 1.5 in. Weight: 2 lbs
The PM59 mixes one or two microphones with a line-level Monitor signal to a set of headphones. The microphone inputs can be configured for standard mic level or line level XLR. The PM59 has a monitor level control, mic/XLR level control for each channel
Made from Top Quality material
