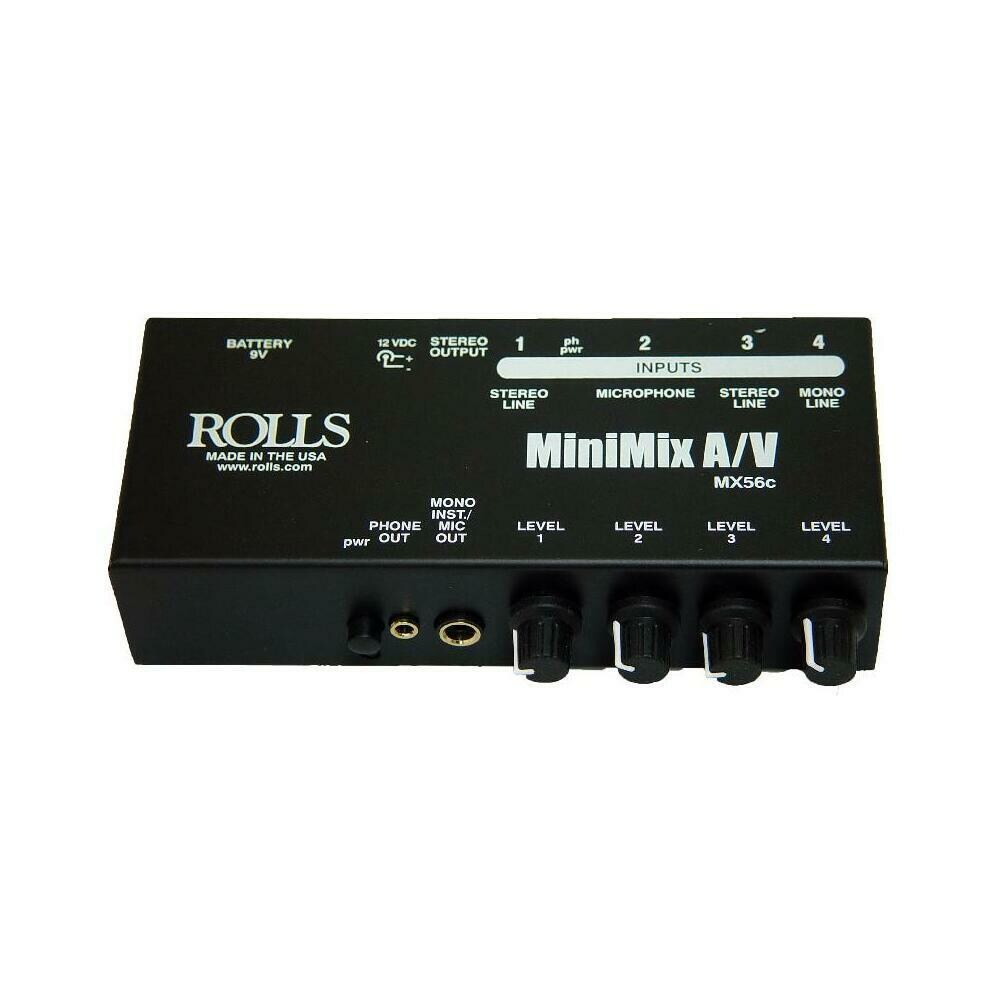

The MX56c, an upgrade to the Rolls MX56s, features four inputs including a mono 1/4'' line input, a stereo 1/8'' (3.5mm) line input, a balanced XLR microphone input with jumperable phantom power, and a stereo RCA line input. A variety of outputs have also been included on the MX56c. In addition to rear panel stereo RCA outputs, the MX56c offers a front panel stereo 1/8'' (3.5mm) headphone/earphone output, and a 1/4'' Tip-Ring-Sleeve balanced mic out. A power switch is located on the front panel, and the unit operates on a 9V alkaline battery or the included Rolls PS27 12VDC adapter. This unit is ideal for the audio/video application where a microphone needs to be mixed with a stereo source such as a CD/MP3/DVD player, or wireless microphone to a video camera or sound system for presentations.Stereo RCA Input.XLR Mic Input.1/4'' Mono Instrument/Line Input.1/8'' (3.5mm) TRS Stereo Line Input.Stereo RCA Outputs.1/4'' TRS balanced Mic/Line Output.1/8'' TRS Stereo Headphone Out.9V Battery operation.Size: 4.25'' x 3.625'' x 1.5''.Specifications:Input: 1: 1/4'' unbalanced, 1: 1/8'' (3.5 mm) stereo, 1: XLR balanced, Stereo RCA.Output: Stereo RCA Line Level, 1: 1/8'' TRS Stereo Phone, 1: 1/4'' TRS Instrument or Mic Level, balanced.Max Gain: Ch 1: 15 dB, Ch 2: 60 dB, Ch 3: 15 dB, Ch 4: 40 dB.Channel Crosstalk: -70 dB.Phantom Power: 9 - 16 VDC depending on power source.Max Output: + 12 dB.S/N Ratio: >80 dB.THD: <.05%.Size: 6.5'' x 2.7'' x 1.55''.
Stereo RCA Input
XLR Mic Input
