Renogy 4.0 -Module 41.8-in x 20.9-in 400.0-Watt Solar Panel
Item #1858272 |
Model #PREMIUM400D-RVR40
We'll notify you once this item is back in stock.
The Premium Kit will produce an average of 1.6-2.5kWh of electricity per day (depending on sun availability), By bypassing the shaded cells with poor performance, the bypass diode minimizes the power drop caused by the shadow to ensure excellent performance in a low-light environment.
Advanced encapsulation material with multi-layered sheet laminations to protect cells from physical damage or distortion, improving cell performance and providing a long service life, Corrosion-resistant aluminum frame ideal for outdoor use, TPT back sheet dissipates excess heat, ensuring smooth output performance, EL tested; 5-year material and workmanship warranty.
Pre-drilled holes on the back frame allow quick installation, The kit has a complete set of accessories and is equipped with an In-line fuse and ANL fuse components to offer more protection.
Easily monitor by your phone, The BT1 Bluetooth module can pair with Renogy DC Home App and transmits system operation data directly to your phone, the Bluetooth signal available up to 82ft.
Meant to safeguard your system, the self-diagnostic capability can assess and protect against reverse polarity, battery overcharging, battery over-discharging, overload, short-circuiting, and reverse current, Equipped with an In-line fuse and ANL fuse components, devised to add overcurrent protection on your charge controller and battery bank.
General | |||
|---|---|---|---|
Collection Name | Premium Kit | Power Type | DC |
Frame Color/Finish | Silver | Number of Modules | 4 |
Panel Cell/Backsheet Color | Black on white | ||
Dimensions | |||
|---|---|---|---|
Length (Inches) | 41.8 | Weight (lbs.) | 14.1 |
Thickness (Inches) | 1.38 | Width (Inches) | 20.9 |
Features | |||
|---|---|---|---|
Can Use with Transformerless Inverters | Yes | Number of Cells per Panel | 36 |
Integrated Microinverter | No | Peak Power Output (Watts) | 400 |
Maximum Power Tolerance (Percentage) | 3 | Solar Panel Technology | Monocrystalline |
Minimum Power Tolerance (Percentage) | 0 | Static PSF Load Rating | 112 |
Module Efficiency (Percentage) | 17.8 | ||
Warranty | |||
|---|---|---|---|
Power Output Warranty | 25-year | Warranty | 5-year |
Product/Workmanship Warranty | 1-year | ||
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | No | Listed to UL 1703 | No |
IEC 61215 Certified | Yes | Safety Listing | Not safety listed |
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 41111900 | ||
Check out the Best Selling Solar Panels on Lowes.com
Ratings may include incentivized customer reviews.
What Customers Are Saying
The solar kit provides a reliable and efficient power solution, with high-quality components, straightforward installation, and impressive power generation even in less than ideal weather conditions. Users praise the kit's performance in powering essential appliances and electronics without the need for a generator. The kit's key strengths include sturdy construction, useful Bluetooth monitoring, and excellent customer support from the manufacturer. While a few minor issues were noted, the overall sentiment is overwhelmingly positive, and many users recommend the kit as a great choice for RV and off-grid applications.
Customer review summary generated by AI, including incentivized reviews.Efficient, sturdy and does what it's supposed to.
I ordered my kit and had it shipped to the store. Everything came with the kit, except for instructions, which I think renogy could well afford to include! One phone call to renogy and they sent me a wiring diagram, and everything else was just a matter of following the instructions. Easy to assemble and fairly easy to connect up. As stated in the other reviews, the Bluetooth is a bit dodgy but that's okay.
Easy installation and works as intended.
I installed this 400 watt rated system two weeks ago. The panels are on the pilot house roof of my powerboat connected in series. I installed the supplied 10A fuse. The Rover MPPT charge controller is in the engine room. The system charges a 260 AH flooded lead acid battery bank. I also have a Renogy battery monitor. The system is intended to allow full time operation of an undercounter refrigerator while the boat is on it’s mooring. The system is operating as intended. The battery monito...
From renogy.com
Wiring not correct
The panels and controler are 5 star but the wiring connectors and fuses do not work. Had to buy a 4 way connector and a 30 amp inline fuse to make it work.
From renogy.com
Needs better instructions
The quality cannot be understated however as someone who's never worked with electronics and was under the assumption the instructions would be helpful in assisting the set up I was wrong. The instructions include everything you need to know about the control box but not a lick about proper instalation into the box or connecting your battery to the solar panels and the panels to eachother for the price I paid for a no doubt quality system I would like to see at least 5 more pages of instructions...
From renogy.com
Great system
Fairly easy to install. Just got back from a 10 day hunting trip and I didn’t need to run the generator the whole time. So far a great product. The only complaint was all the wire leads are fairly short. It limits your options on how you position the panels on the roof. I also had to buy longer wire to run from the charge control to the battery. But over all The system works great and has been a good investment
From renogy.com
No longer use breadpay
I like your products but unfortunately it looks as if you guys no longer use bread pay financial as means of payment. I was looking forward to purchasing more of your products but because you no longer use bread pay I may not be able to.
From renogy.com
Great Kit!!! Need option for longer wires

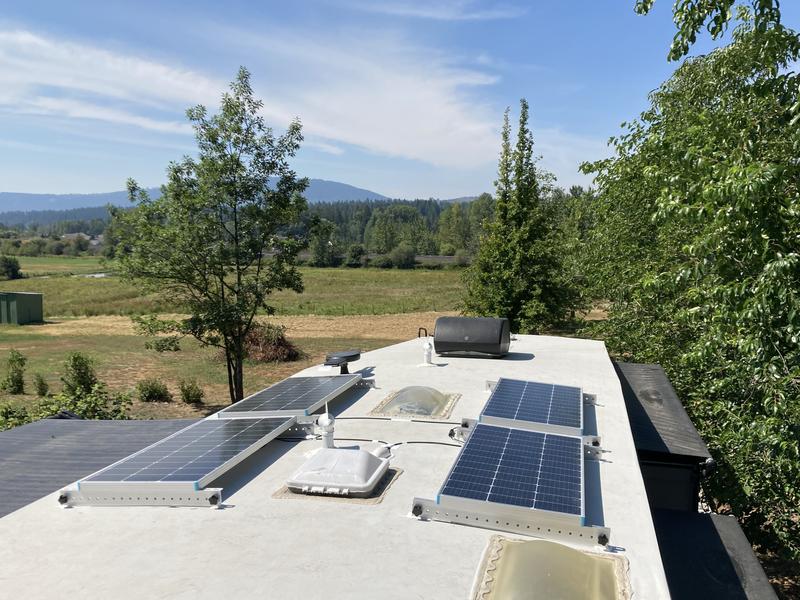

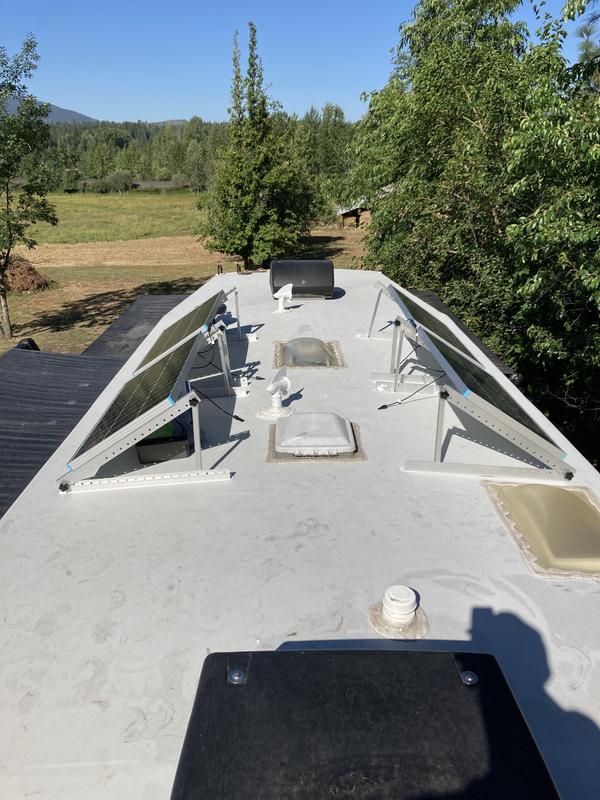

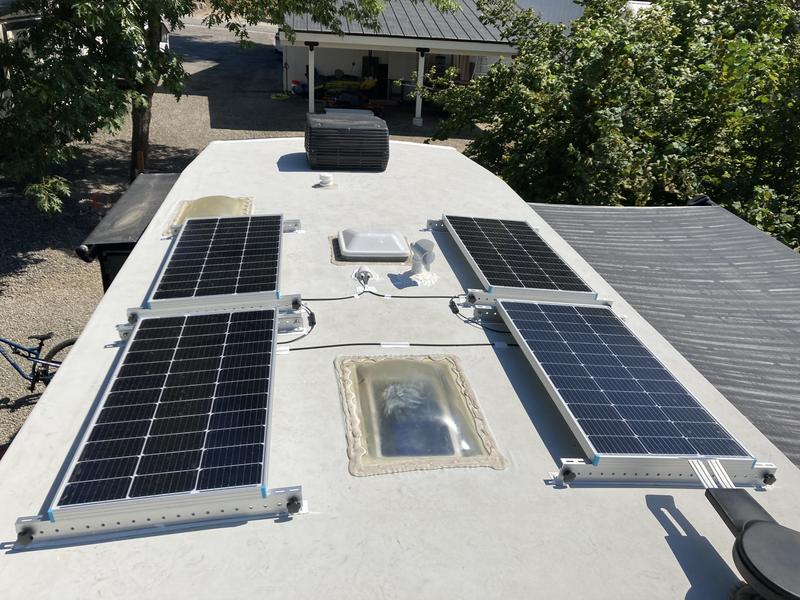

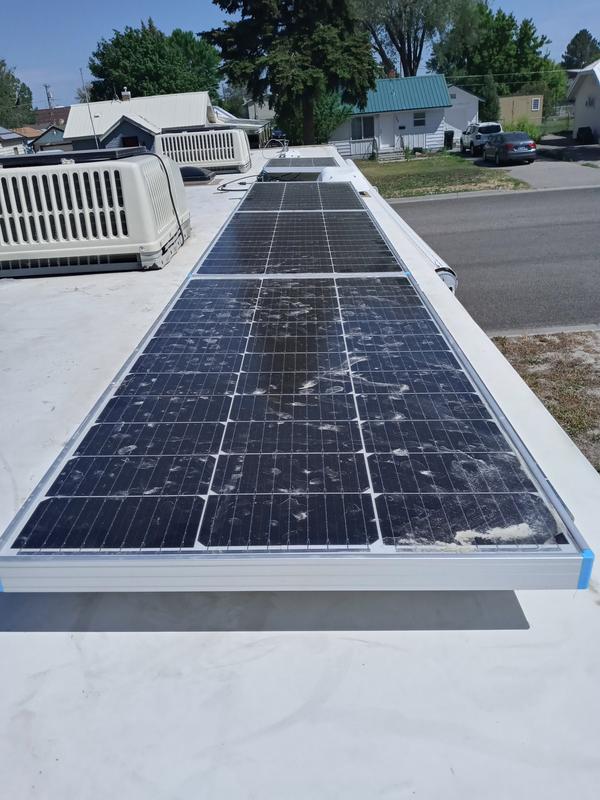

Such a great starter kit. Arrived perfect! Panels are doing great, actually pulled 415 watts on my rv yesterday with the panels angled at the correct degree to the south. Charge controller is awesome and all wires and hookups work great. Two things to note: the charge controller on the app will read out what the controller is converting at that moment for your batteries current needs. Can be confusing to think you’re only getting 2 amps when you have 79 volts and 200-300 watts - but it’s likely ...
From renogy.com
Great kit!! Everything you need.

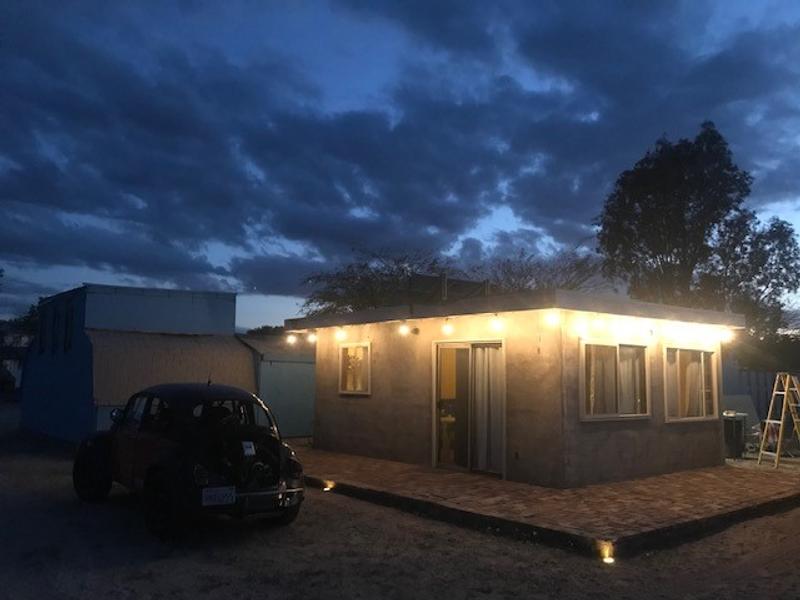

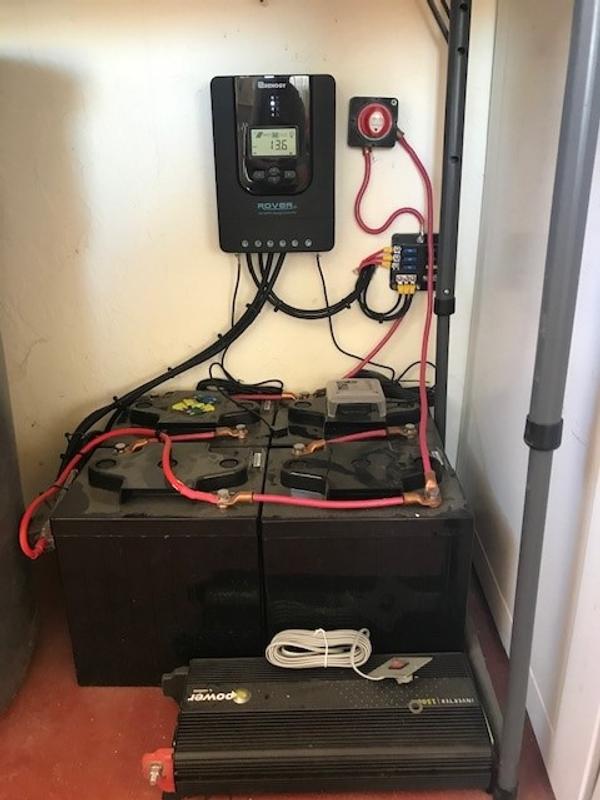

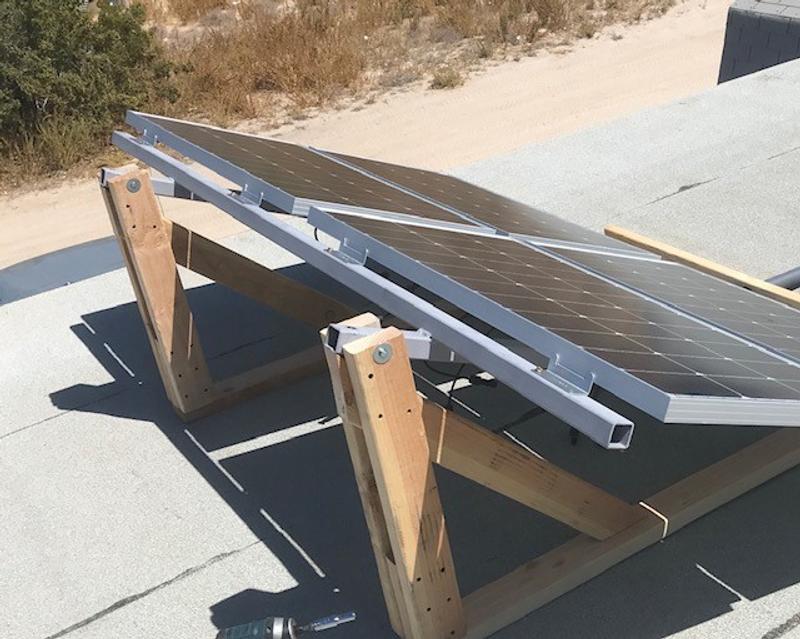

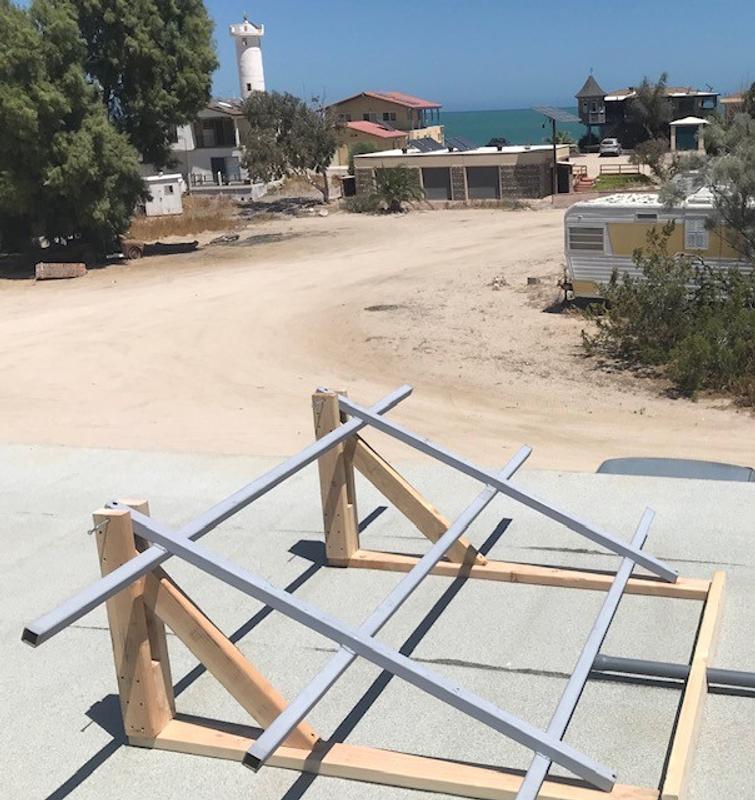

I don't usually write reviews, but I figured I would in this case: The main reason I purchased this kit is because you can actually call Renogy, and they actually have someone to answer the phone who is eager to answer questions and assist in tech advise. To me, that's huge! Anyways, I installed this 3 years ago for my off-grid tiny beach house in Mexico. It has functioned perfectly and is holding up great. The only maintenance I've performed is just cleaning the panels. This system is s...
From renogy.com
No regrets buying this
I like it, it works better than I even hoped that it would.
From renogy.com
Great Solar Battery backup system

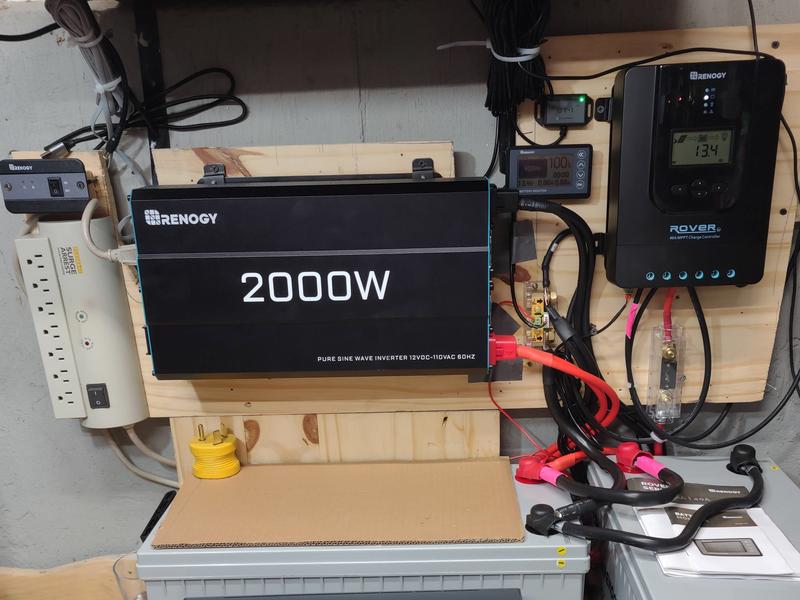

Great Product. Support was awesome to talk to to figure out a few items. I use it for a Solar Battery backup system if I lose power to run my mini fridge, sump pump and freezer. I added 2 - 200AH 12 volt AGM Batteries and a 2000 watt inverter. I think they should sell as a package, but everybody's needs are different I guess. The only thing I would recommend is that people use a watt meter for (over time) calculations. you really need to do the math on what your appliances use and over time what...
