Renogy 1.0 -Module 41.8-in x 20.9-in 100.0-Watt Solar Panel
Item #1598704 |
Model #STARTER100D-WND30
We'll notify you once this item is back in stock.
Efficient Performance: The Starter Kit will produce an average of 500Wh of electricity per day (Based on 5 hours of direct sunlight condition), The Cell Efficiency can reach 22%, and The bypass diodes ensure that the panel has an excellent performance in a low-light environment and the TPT back sheet dissipates excess heat to ensure smooth output performance.
Solid Quality: Advanced encapsulation material with multi-layered sheet laminations protects cells from physical damage and distortion, improving cell performance and providing a long service life.
Smart Function: The Wanderer PWM Charge Controller is compatible with four different types of batteries: Sealed, Gel, Flooded, and Lithium batteries, It also features advanced 4-stage charging (bulk, boost, float, and equalization) to ensure your battery is efficiently and safely charged to 100%.
Full System Protection: The Wanderer PWM Charge Controller has a number of built-in protections to safeguard your systems, such as reverse polarity protection, battery overcharging protection, overload protection, and short circuit protection.
Ready to Install: This Renogy Solar Kit includes all of the equipment necessary for building a new system, The included cables, Z-brackets, and pre-drilled holes on the back frame of the panel allow fast and secure mounting, With the Wanderer Li 30A PWM Charge Controller, the kit can meet your further power needs by adding more of the same solar panels to expand up to 400W.
General | |||
|---|---|---|---|
Frame Color/Finish | Silver | Power Type | DC |
Panel Cell/Backsheet Color | Black on white | Number of Modules | 1 |
Dimensions | |||
|---|---|---|---|
Length (Inches) | 41.8 | Weight (lbs.) | 14.1 |
Thickness (Inches) | 1.38 | Width (Inches) | 20.9 |
Features | |||
|---|---|---|---|
Can Use with Transformerless Inverters | Yes | Number of Cells per Panel | 36 |
Integrated Microinverter | No | Peak Power Output (Watts) | 100 |
Maximum Power Tolerance (Percentage) | 3 | Solar Panel Technology | Monocrystalline |
Minimum Power Tolerance (Percentage) | 0 | Static PSF Load Rating | 0 |
Module Efficiency (Percentage) | 17.8 | ||
Warranty | |||
|---|---|---|---|
Power Output Warranty | 25-year | Warranty | 5-year |
Product/Workmanship Warranty | 5-year | ||
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | No | Listed to UL 1703 | No |
IEC 61215 Certified | Yes | Safety Listing | ETL safety listing |
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 41111900 | ||
Check out the Best Selling Solar Panels on Lowes.com
Ratings may include incentivized customer reviews.
What Customers Are Saying
The solar starter kit provided reliable performance, with customers reporting successful use to power various devices. The charge controller was noted as a key feature that made the system easy to operate. While some minor issues were mentioned, such as the need for more detailed instructions, the overall sentiment was very positive, with many customers expressing high satisfaction and willingness to recommend the product.
Customer review summary generated by AI, including incentivized reviews.Cables should be either red or black
Was surprised to see all cables in this “kit” was black which for some people could mix up the positive from the negative when hooking up the different components. Wrap the positive wires ends with red electrical tape.

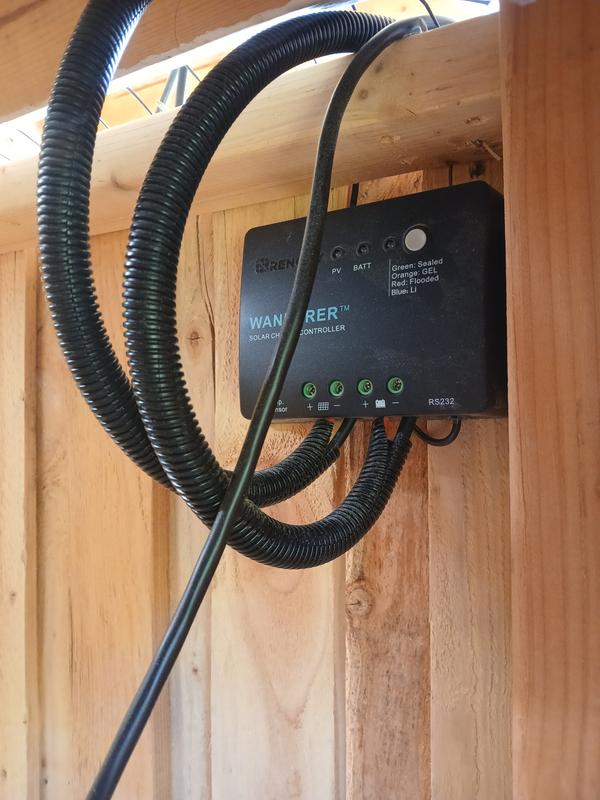

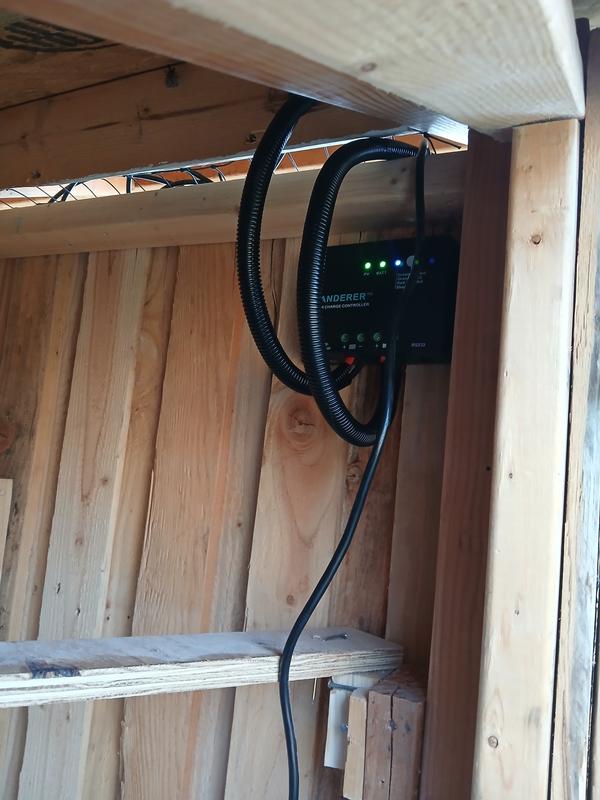

Solar power for my greenhouse
I purchased the 200 watt solar panel system with charging controller and the 700 watt inverter to power fans and lights in my greenhouse. Assembly and setup was very easy and straightforward. So far, everything is meeting my expectations!
Try something else.
It was working great had it setup for 2-3weeks on my hicken coop for a heat lamp, came home from work found the charge controller shot out.
plan your install beforehand, run the wires first.
came with everything i needed. easy hookup and mounting.
Good day, jfero!
We are glad to hear that you are enjoying your Solar Kit and we hope you continue to do so!
If you have furthe...
wanted almost 2 weeks for my order and when I picked it up part of it was missing. all the stor could do was give me a refund. now I am still without my items and have to wait up to 10 days for my refund.
Good day, jsmes!
We deeply apologize for the missing components with the kit you've received, I have already raised this feedback with...
