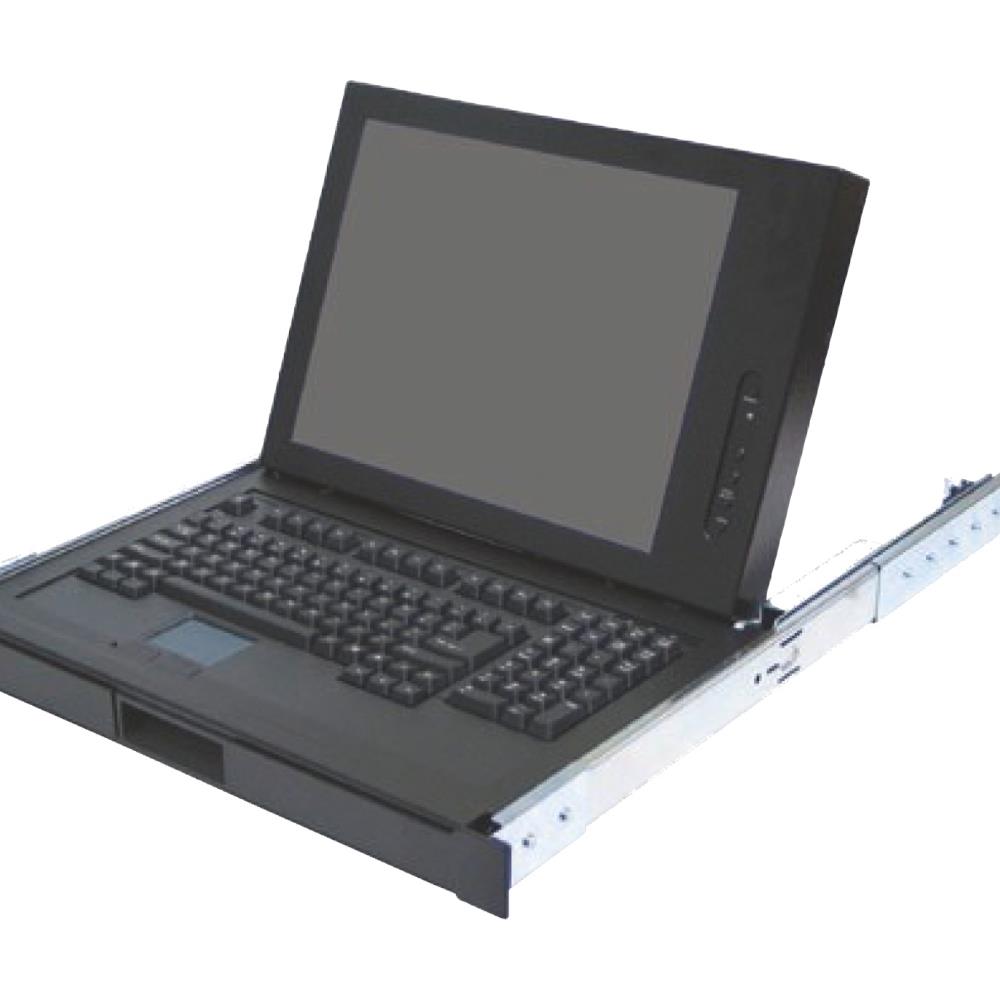

The Recortec RMM-617C is a 17-" Rackmount LCD KVM console with monitor, a keyboard with a two-button touchpad, and only takes up 1RU of space. This unit is housed in rugged steel construction with a durable powder coat finish. It's supplied with ball bearing slides that lock in the extended position and are easily mounted by one person. The rackmount KVM console may be used in conjunction with rackmount KVM switches to control multiple computers using a single rackmount KVM console. Features Monitor and keyboard with a two-button touchpad in 1U of rack space Mounted with included ball bearing slides which lock in the extended position Monitor powers off preserving back light life when tilted down for sliding into the rack Retainer and lock options to keep unit contained in the rack when not in use Housed in rugged steel construction with a durable powder coat finish Monitor surface protected by a clear unbreakable Lexan covering Resolution: 640x350 640x480 800x600 1024x768 1280x1024 Compatibility: Windows operating systems Specifications Color: Black Display Type: Active matrix TFT LCD Colors: 16.7 million colors Contrast Ratio: 1000:1 typ Brightness: 250 cd/m2 typ Viewing Angle Horizontal: 170deg Viewing Angle Vertical: 160deg Response Time: 5ms Display Area: 17-" Diagonal Horizontal Frequency: 31.5KHz - 80KHz Vertical Frequency: 56Hz - 75Hz Rollover: Alpha N-key rollover Auto Repeat: Yes Self Diagnostics: At power on and system reset Data Buffer: All codes buffered before sending Operating Voltage: 5VDC 5 Operating Current: 200mA Touchpad Size: 2.2-" x 1.6-" Buttons: Left and Right Interface: USB, or optional PS/2 ( P) Dimensions ( HxWxD): 1.75-" x 19.0-" x 25.75-" Power ( TFT Display): 90 - 260 VAC, 50/60 Hz, 60 Watts maximum Plug and Play: DDC1 and DDC2B Temperature Operating: 32degF - 122degF ( 0degC - 50degC) Temperature Storage: -4degF - 140degF ( -20degC - 60degC) Operating Humidity: 10 - 85 RH ( max) Input Signal ( VGA): R.G.B. analog video, TTL H and V syn
