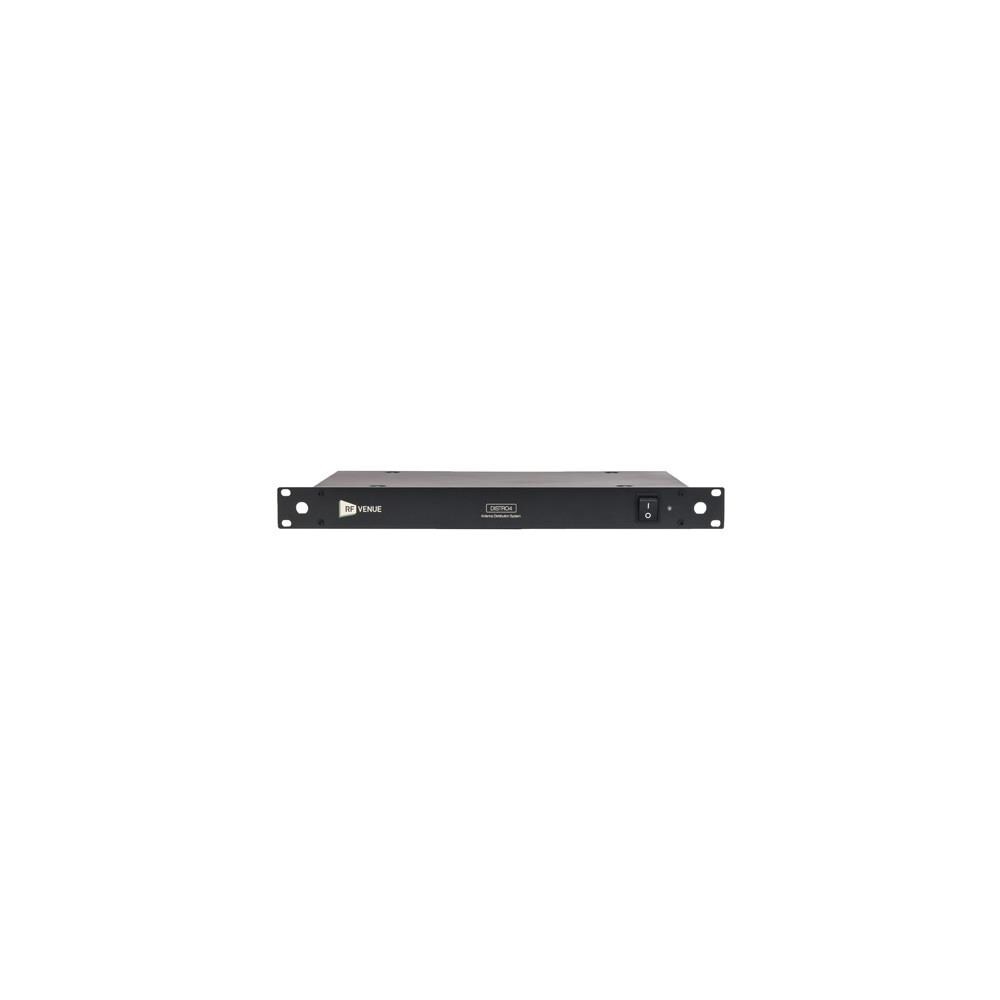

RF Venue RFV-DISTRO4 Antenna Distribution System with Cascade

DISTRO4 is a broadband UHF antenna distribution amplifier that routes antenna signals from a pair of diversity antennas to several receivers in a multichannel system. DISTRO4 compensates for signal strength lost in the splitting process with high quality amplifiers. Two or more units may be cascaded together to accommodate more than four receivers with the included cascade port. DISTRO4 features a 2000 mA internal power supply ( no wall wart) and compares to antenna distributors twice its price. For active antennas and in-line amplifiers, DISTRO4 provides an internal switch to apply DC power over coaxial cable to antenna connections. It includes all RF and DC power cables needed to connect a 4 channel wireless microphone system as well as cascade to one additional DISTRO4. Specifications Frequency range: 470-952 MHz RF output level ( gain): 3 dB ( 2 dB) Cascade output level: 0 dB - +2 dB Output connection isolation:25 dB Third order intercept point: 24 dBm Impedance: 50 Power consumption: 60 W Input AC voltage: 100-240 V switching DC over coax ( to external antennas): 12-14 VDC Output DC voltage ( to receiver jacks): +12 V Dimension: 1.7-" x 18.8-" x 9.8-" Weight: 9 lbs
