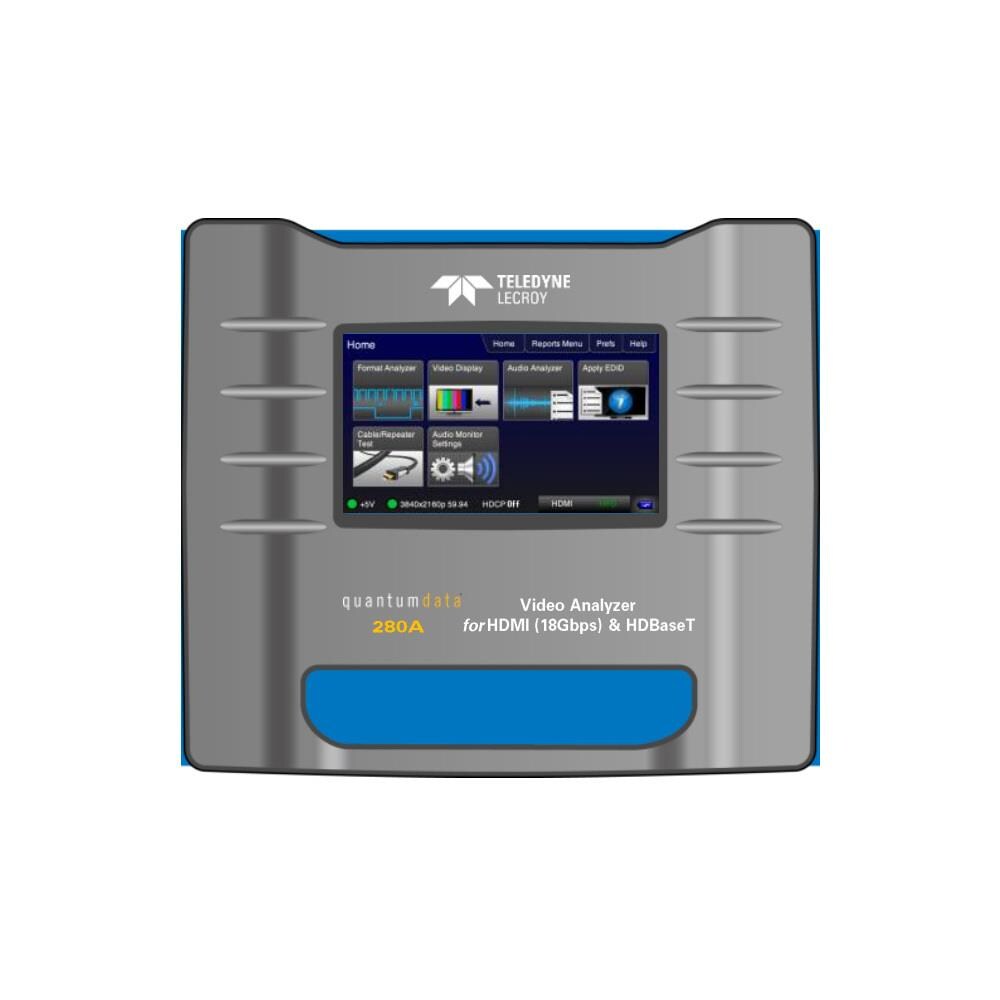

In the 2nd image the 280A Rx unit serves as a 4K video display to verify various video resolutions, bit depth settings, colorimetry, sampling etc. You can also verify the +5V and emulate an EDID to verify that the upstream network is passing it through to the source properly. HDCP can be verified as well using either HDCP 1.4 or HDCP 2.2. If you encounter problems you can segment the network by moving the 280A Rx upstream to run further tests. In this case the 280A Rx can serve either as an HDMI or an HDBaseT sink. Segmenting the network either from the upstream direction of the downstream direction enables you to determine where the failure occurs. The Teledyne LeCroy 280 HDMI/HDBaseT Video Generator ( Tx) and Analyzer ( Rx) is small compact, battery powered test set ideally suited for professional A/V integrators and home theatre installers. This feature-rich test set enables you to conduct basic verification and diagnostic tests on HDMI/HDBaseT cables, video distribution networks and individual A/V components. The HDMI input and output ports support testing up to 18 Gbps data rate and 600 MHz pixel rate and the HDBaseT input and output ports support testing up to 300 MHz pixel rate. The instrument set's features and convenient operation can shorten time on and reduce callbacks by enabling you to run basic verification and diagnostic tests on complex video distribution installations quickly and efficiently. Features. HDMI and HD Base T Video Analyzer. Test HDMI and HDBaseT cables, devices, components and entire video distribution networks end to end up to 18G ( HDMI). Verify hot plug, +5V, EDID, HDCP, Video transmission through a video distribution network. Check interoperability between video sources, displays and distribution equipment. Diagnose video and protocol failures in cables, video distribution devices and components. Simple Pass/Fail test indication on LCD display offers quick -"Time-toInsight.-". Test reports provide HTML formatted reports of tests
In the 2nd image the 280A Rx unit serves as a 4K video display to verify various video resolutions, bit depth settings, colorimetry, sampling etc. You can also verify the +5V and emulate an EDID to verify that the upstream network is passing it through
HDMI and HD Base T Video Analyzer
