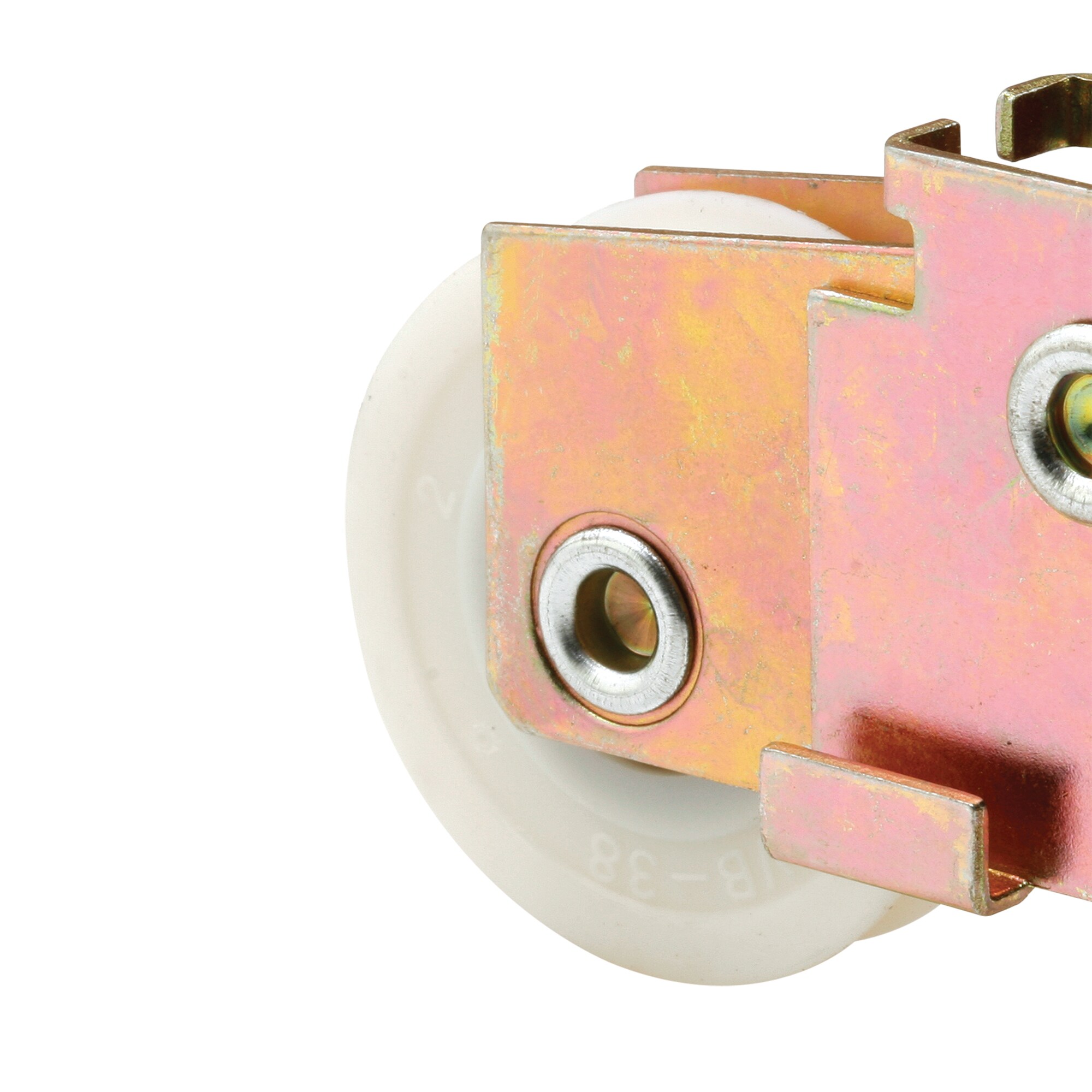

This is a bottom mount roller assembly for mirrored wardrobe doors. Used by Marshall Doors, the door rests on a tab on the bottom edge of the roller housing while being held in place by installation screws from the side and into installation holes on the roller's back sides. The adjusting screw can be accessed through a hole below. The 1-1/2 inch concave nylon ball bearing roller allows the metal framed mirrored door to roll smoothly and effortlessly.
1-1/2 inch roller diameter
Concave roller
Nylon ball bearing roller

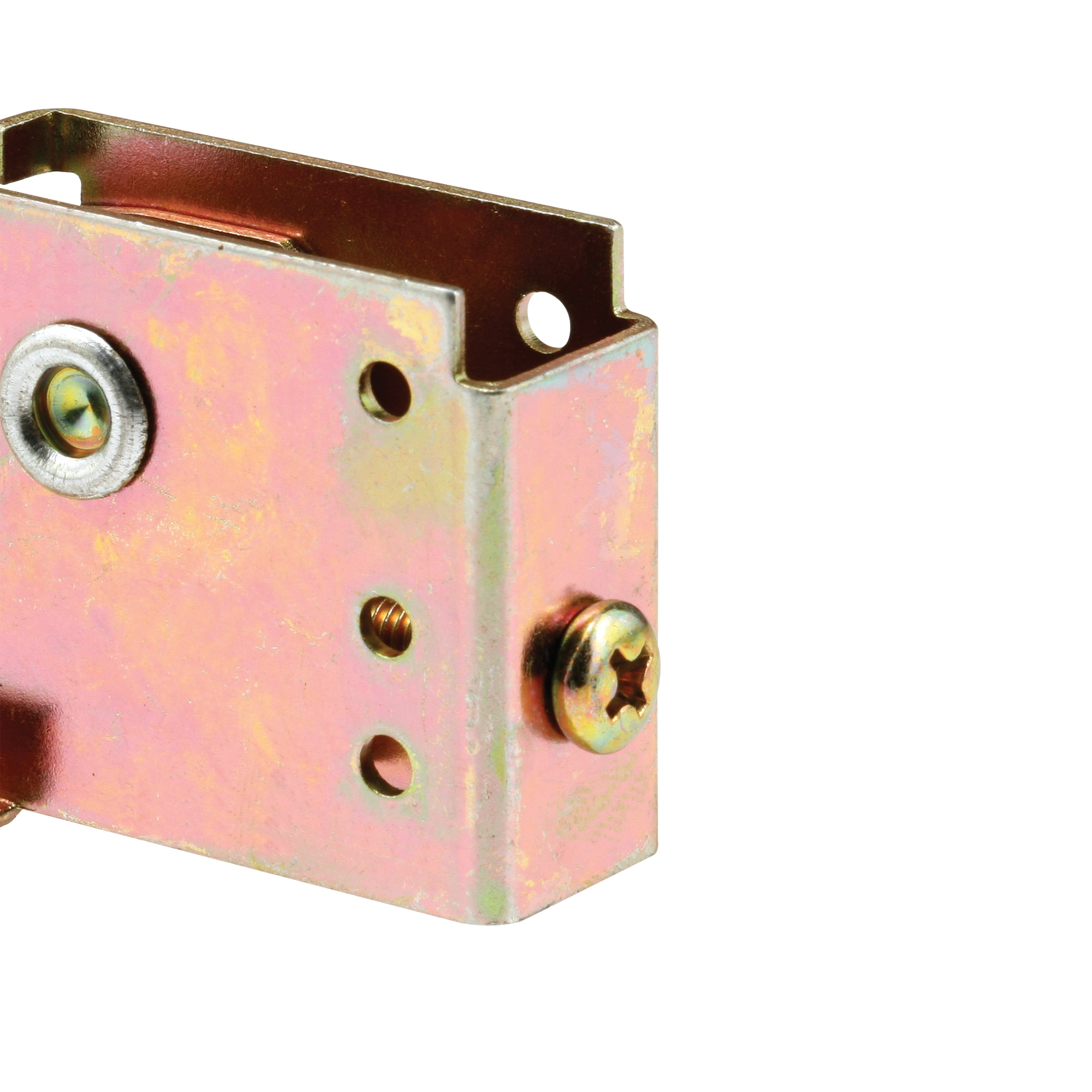

Stamped steel housing with adjusting screw and unique hook-like installation tabs
Housing width is 5/8 in
Housing height is 1-3/8 in
Used by Marshall Doors and a variety of other wardrobe door manufacturers

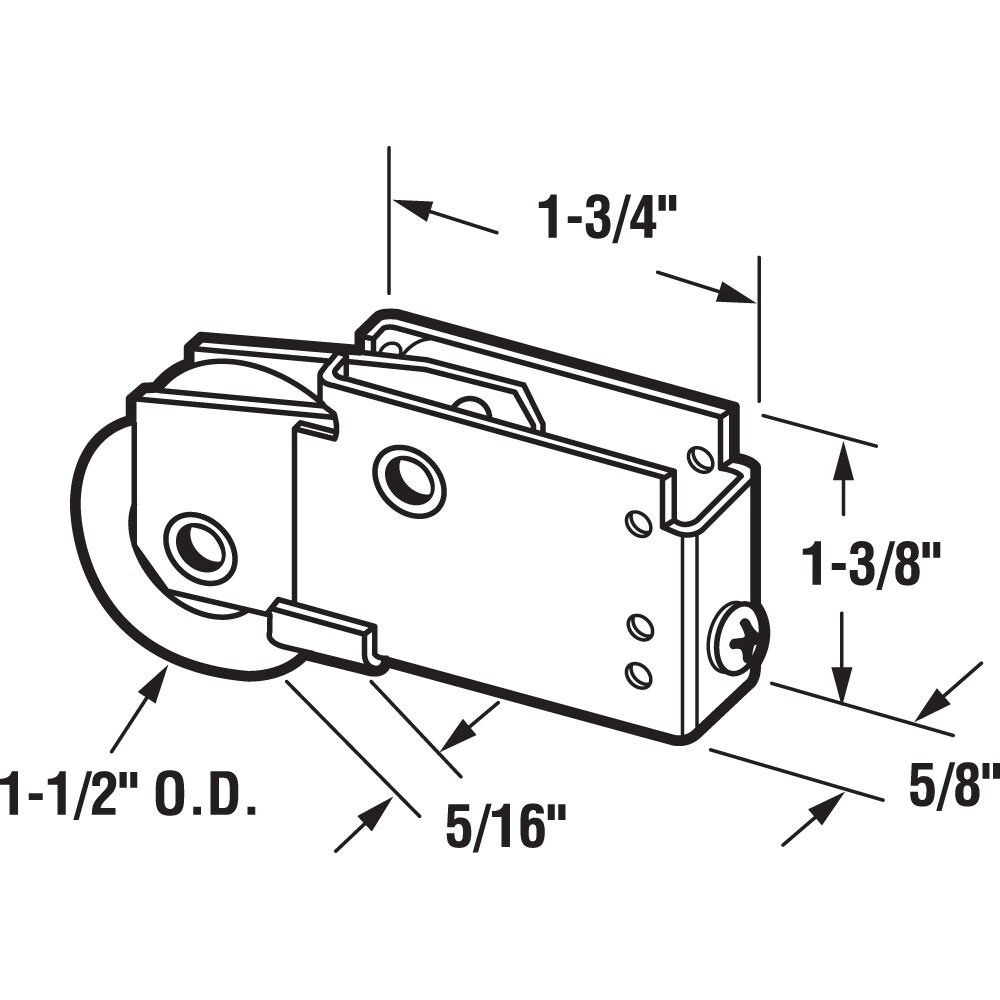

Please refer to the line art drawing for dimensions and compare with your original item before purchasing
