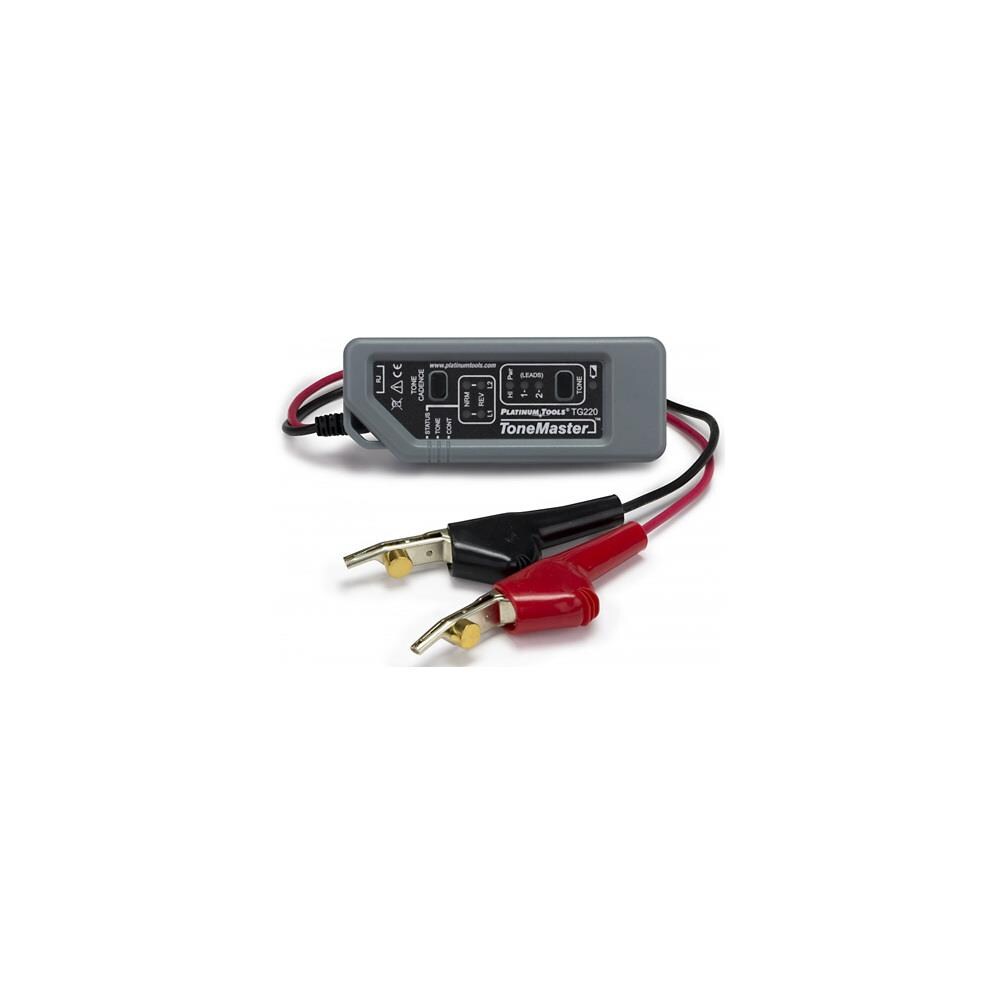

Platinum Tools PLAT-TG220C ToneMaster High Powered Tone Generator with ABN Clips

The Platinum Tools TG220C ToneMaster high-power tone generator enables signal detection over 20 miles away and makes tracing through walls and enclosures easier with multiple tones and power levels suited for network, signal wire, coax, and telephone cable applications. Four tone amplitude levels include normal and half, high-powered normal and half, with the half amplitude unbalanced for stronger signal effect on twisted pairs. In addition, depending on test requirements, three distinctly different tones can be selected from the front panel. Paired with the Platinum Tools ToneSeeker tracer the ToneMaster makes easy work of tracing and locating cables and cable ends. Features 700 more power than standard tone generators Unbalanced tone mode supports longer distances on UTP cables Constant amplitude output ensures no signal decrease as battery discharges Auto-off for battery conservation Full talk battery to power a dry line Tone may be added in any mode - phone sets without a monitor feature can pick up tone Part number TG220C includes molded-in angled bed-of-nails ( ABN) clips Specifications Tone Frequencies: Dual 1,165 Hz and 874 Hz Two single tones 1,165 Hz and 874 Hz Tone Power: Typical ( into 600and Omega, new battery to 5.0 V) LO: 3.6 dBm HI: 9.3 dBm LO: 12.3 dBm HI: 18.4 dBm Voltage Protection: Status - DC 60 V, continuous AC 300 V peak, 2 secs Continuity ( into 600and Omega,): DC 52 V Tone Mode: 250 DC or peak AC volts Electrical Battery: 120 hrs, typical
