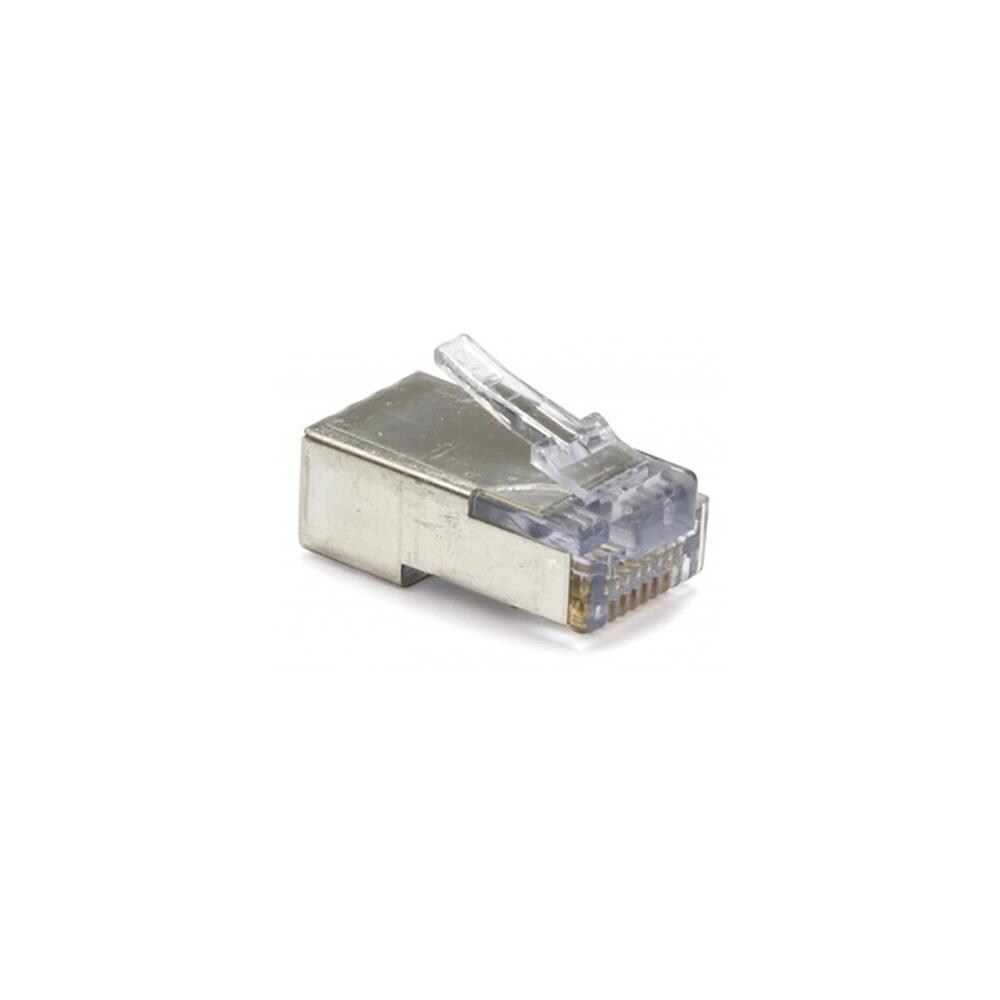

Platinum Tools PLAT-100020 EZ-RJ45 CAT5-5e-6 Shielded Connectors with Internal Ground- Solid or Stranded- Bag of 50

The Platinum Tools 100020 EZ-RJ45 shielded connector with internal grounding tabs provides a fully shielded RJ45 connector with all the ease of termination benefits of the EZ-RJ45 system. Works with all CAT-5/5e cables. Design allows conductorsto extend through the front end of the connector for the verification of wiring order prior to crimping. Shielded cable, foil and drain wire is inserted inside the connector body and when crimped makes secure connection to the internal ground tabs. Connectors are crimped and conductors trimmed in one action with either 100054C or 100062C crimp tools. May be used with Solid or Stranded CAT-5/5e/6 cables with max cable OD of.260-" ( 6.6mm) and Conductor range OD range ( including isolation)of.037-"- 0.41-" (.94mm - 1.04mm). Hospitals ( EMI/RFI), Manufacturing plants, Casinos, Broadcast studios, Buildings in proximity to microwave towers, electrical power stations or towers. Features. EZ-RJ45 CAT5-5e-6 Shielded Connectors with Internal Ground - Solid or Stranded - Bag of 50. Maintaining the twists to the point of termination significantly decreases crosstalk and markedly increases performance. Fully shielded products provide reduced pair-to-pair crosstalk, alien crosstalk, and considerably improved immunity to noise at all frequencies. Significantly improve Shannon capacity. Substantially improve noise immunity at all frequencies, especially above 30MHz when cable balance starts to significantly degrade. Category 6 performance per EIA/TIA B.2. FCC compliant, UL rated. RoHS compliant. Max Cable OD: 6.60mm , Max Insulated wire OD: 1.041mm. For solid round or stranded wire cables. Made in the USA. TAA Compliant Specifications. Weight: 0.4 lbs
