Pico Digital PM-A860 Macom A860 Agile Modulator

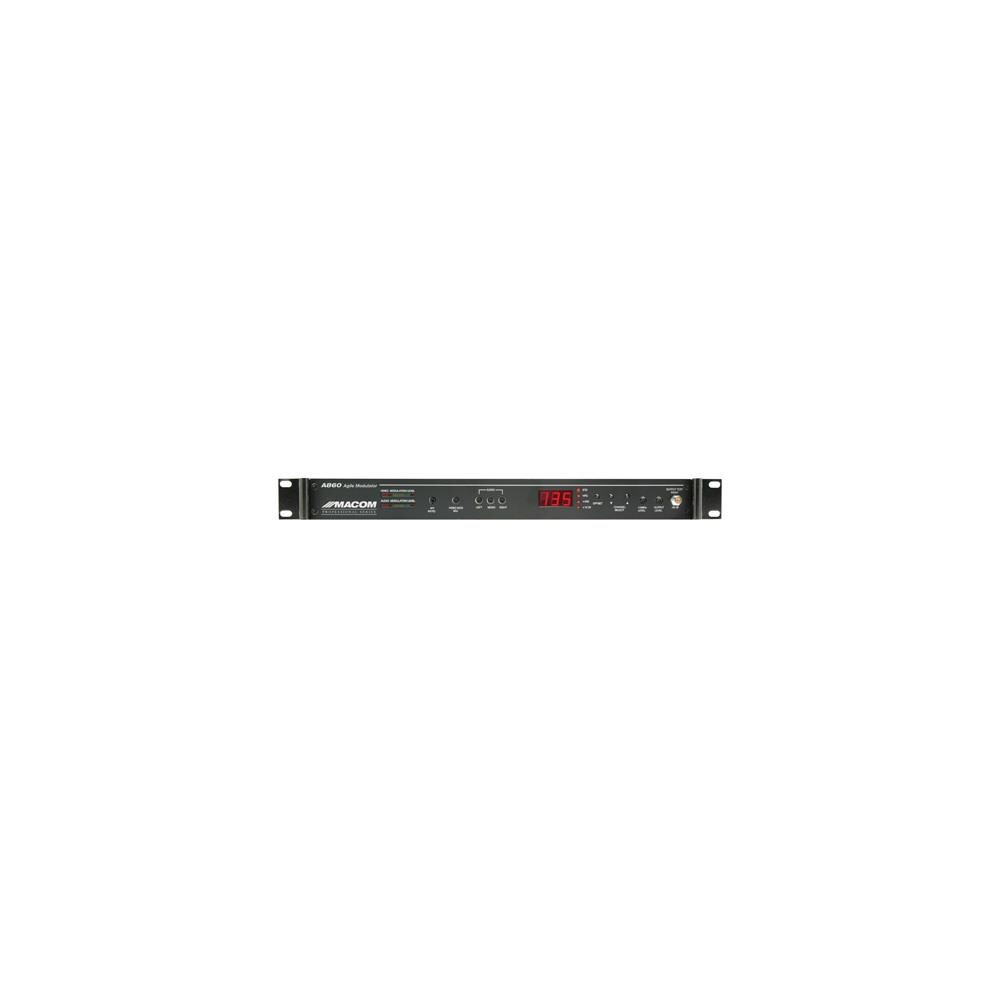

Macom A860 Agile Modulator The MACOM A860S is the stereo version of the agile modulator. It's a frequency agile audio/video professional re-broadcast grade, microprocessor controlled CATV modulator. Attractive and easy to operate, the sleek design highlights the useful front panel modulation bar-graphs and channel indicators. The simple push button tuning interface allows the A860S to be configured for CATV standard, HRC, and IRC or North American broadcast channels with an RF output of 60 dBmV. The front panel output test point provides a quick reference test point prior to channel combining equipment, saving time and service interruption during setup and maintenance. The A860 features rear panel interface connections for input of NTSC video and monaural and discrete left and right audio. The integrated stereo encoder ( optional) will provide a BTSC stereo encoded output channel. MPX loop and 4.5 MHz ( modulated) audio input connections are provided to bypass the internal stereo encoder for compatibility with external units, additionally, the MPXloop is useful when used with the EAS-12B emergency override system. A composite audio/video IF loop provides compatibility with scrambling encoders, ghost cancellers, and IF override applications. The unit conforms to FCC Docket 21006 for frequency accuracy. Specifications Frequency Range: 54-860MHz Channels: CATV 2-135/UHF 14-69 Level: 60dBmV min Level Adjustment: 20dB Impedance: 75 Frequency Stability: +/-3 kHz Audio/Video Ratio: -10 to -20dB Adjustable Output Return: Loss -18dB In Band Spurious: -62dB Out of Band Spurious: -65dB VSB Response: -60dB min C/N ( In-Band):>62dBc Video Level: 38dBmV Video Carrier Frequency: 45.75MHz Audio Carrier Frequency: 41.25MHz Audio Level: 22dBmV Composite Level: 35dBmV Video Stability: +/-3 kHz Audio Stability: +/-2 kHz Level: 37dBmV Level: 0.7-1.0 V p-p Frequency Response: +/-1.0dB max Impedance: 75 Differential Gain: <2 typ Differential Phase: <1 degrees typ
