The Phewnyzo junction box is an ABS plastic electrical enclosure with a transparent PC cover for compatible project installations. The box body is light gray and the cover is transparent clear, making the enclosure contents visible through the cover. Its listed waterproof protection grade is IP65, and the product information lists CE and ROHS qualifications.Outside dimensions are approximately 6.3 x 4.3 x 3.5 inches, or 160 x 110 x 90 mm, measured as length x width x height. Approximate inside dimensions are 6.1 x 4.1 x 3.2 inches, or 154 x 104 x 82 mm. Measurements have an allowable error of 2 mm, and the supplied product information recommends referring to the detail image to confirm specific internal installation dimensions. The enclosure wall thickness is approximately 0.12 inch or 3 mm, and the screw thread diameter is 4 mm or 0.16 inch.The project box is easy to operate and repair without cable cutting. The package contains 1 junction box, 4 screws, and 1 rubber grommet. The included screws are not rustproof. The listed net weight is 326 g, and the product weight is 11.5 ounces. For shipping reference, the package weight is listed as 0.33 pound, with package dimensions of 8.1 x 3.7 x 2.1 inches. These package measurements are separate from the assembled enclosure dimensions. Use the stated outside and inside measurements, wall thickness, screw thread diameter, and detail image when checking fit and installation requirements for your project.
The enclosure measures approximately 6.3 x 4.3 x 3.5 inches or 160 x 110 x 90 mm for outside length width and height dimensions

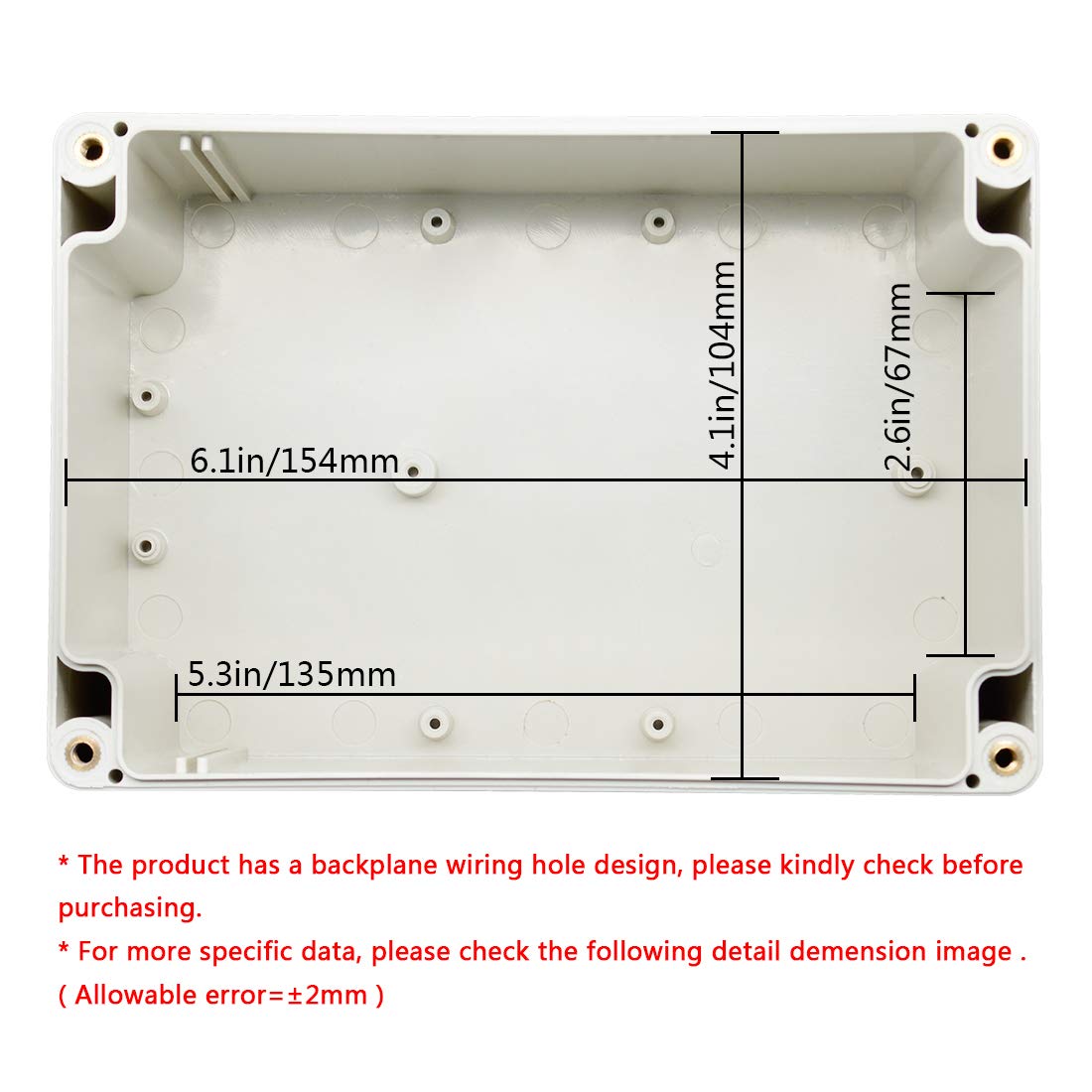

Approximate inside dimensions are 6.1 x 4.1 x 3.2 inches or 154 x 104 x 82 mm with a 2 mm allowable error; refer to the detail image for installation dimensions
The box body is made of ABS in light gray while the transparent clear cover is made of PC; the enclosure wall thickness is approximately 0.12 inch or 3 mm
This project enclosure has an IP65 waterproof protection grade and lists CE and ROHS qualifications for the junction box
The project box is designed for convenient operation and repair without cable cutting providing a practical enclosure for compatible project installations
The package includes 1 junction box 4 screws that are not rustproof and 1 rubber grommet; the screw thread diameter is 4 mm or 0.16 inch
